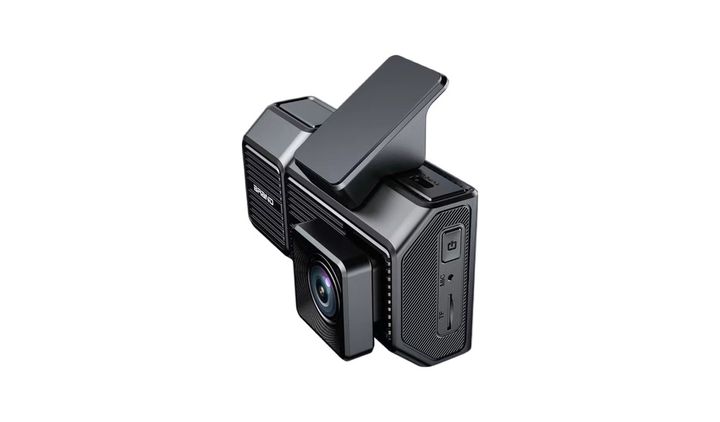

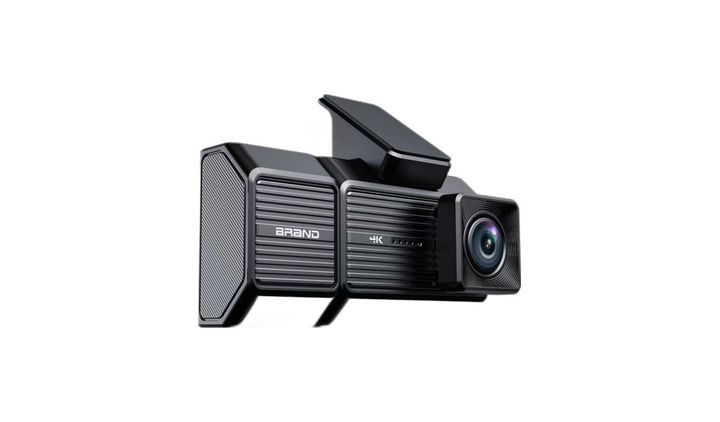

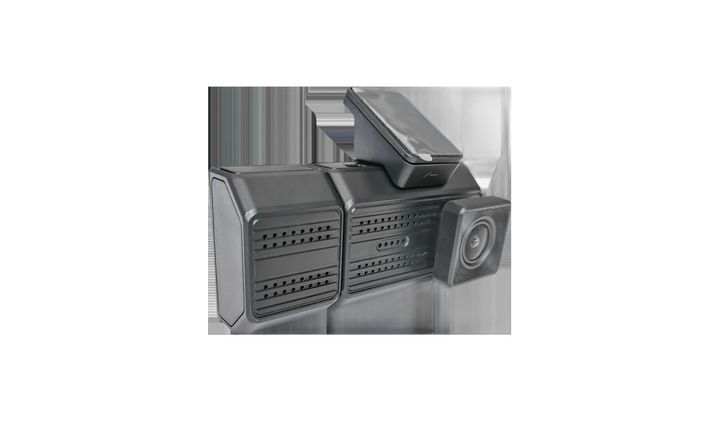

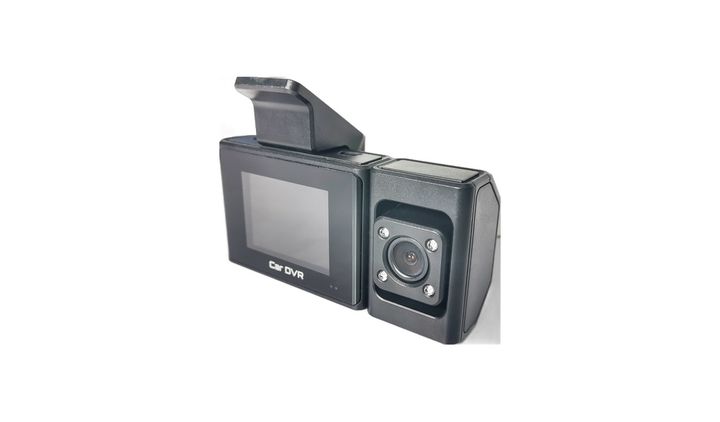

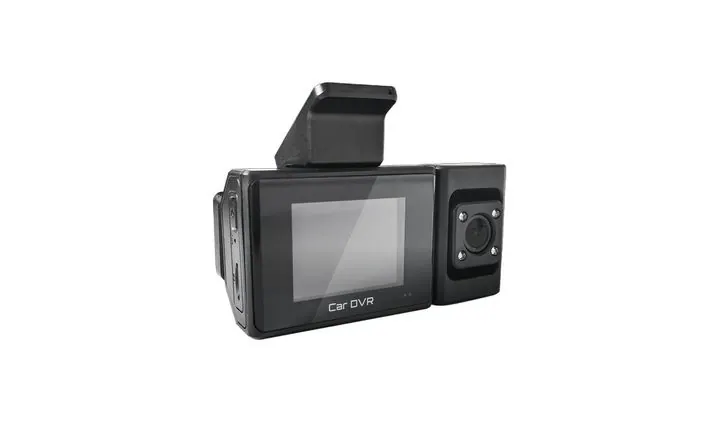

Main image and detail shots of the JFD-67.
JFD-67 (A6703Pro3) three-channel driving recorder with screen (front 4K + in-cabin 1080P + rear 2.5K / 2-inch IPS)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 3-channel dash cam with 2 inch IPS display: front + inside + rear
- Main push model A6703Pro3: 2.5K + 1080P + 2.5K three-lens configuration
- Chipset NT96670, 900MHz, DDR3 2GB + built-in 32Mb SPI flash
- Front camera IMX335, lens 2G4P F1.8, angle D140° / H118° / V59°, 3840x2160P@30fps with WDR
- Inside camera GC2053, lens 2G2P F2.0, angle D140° / H105° / V59°, 1920x1080P@30fps with WDR
- Rear camera EthCam IMX335, lens 2G4P F1.8, angle D140° / H118° / V59°, 2560x1440P@30fps with WDR
- 4GHz WiFi with FinalCamX App; GPS optional / built-in
- Star-light night vision; shake reduction included
- H.265, TS stream; recording quality 2160P / 1440P / 1080P / 720P
- Loop recording 1 / 3 / 5 minutes; parking monitoring / time-lapse recording with low-voltage detection
- MP4 one-second-save power-failure protection: the last video is saved even if power is cut off at any time
- Three-axis high-precision G-sensor; G-sensor event files are locked and not overwritten
- 2 indicator lights (blue = recording status, red = WiFi status)
- 4 physical buttons (MENU / OK / UP / DOWN) plus reset key
- RTC button battery ML621; USB-Micro plug supports 5V-12V power supply
- TF card 32G-512G external expansion
- PC+ABS housing with black 3M adhesive, high temperature resistant
- Bare unit 140g; product size 100 x 42 x 73 mm
- Working temperature -20°C to +70°C, storage -30°C to +85°C; rated current <0.8A, start time <8s
- Configuration options: A6703 (4K single), A6703D (4K+1080P), A6703DT (4K+1440P), A6703Pro3 (2.5K+1080P+2.5K three lens)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm configuration version: A6703 single recording 4K / A6703D 4K+1080P dual recording / A6703DT 4K+1440P dual recording / A6703Pro3 2.5K+1080P+2.5K three-way
- Confirm whether built-in GPS and supercapacitor are required (optional)
- TF card 32G-512G, confirm whether it is included with the goods
- Confirm whether a rear camera and its cable length are required.
- Confirm language, logo, packaging and boot screen.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The main unit is fixed on the front windshield with 3M glue. Clean the glass before installation to avoid high temperature exposure
- The power supply is DC 5V-12V (USB-Micro); when using a step-down cable, connect it to normal power / ACC / ground according to the color of the cable. Do not reverse the positive and negative poles
- Parking monitoring/time-lapse video requires a voltage-reducing cable and low-voltage detection. Pay attention to the battery when parked for a long time
- Disconnect the power before inserting or removing the TF card.
- Before connecting the mobile phone to the recorder WiFi, first disconnect other WiFi saved in the mobile phone
- The installation direction of the three cameras must be according to the instructions, and the in-cabin lens should not block the driver's view
- Check the recording time, image and loop overwrite periodically, and export important footage promptly.
- Keep the lens clean — rain, snow and mud all degrade the image and night vision.
