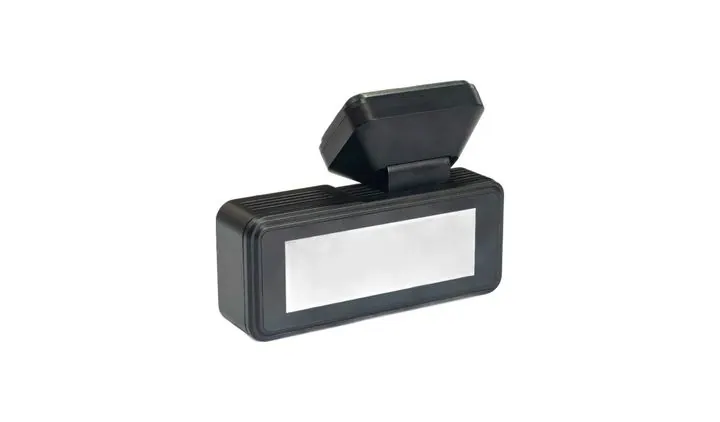

Main image and detail shots of the JFD-215.

Recording · MDVR & JFD

JFD-215

JFD-215 (A215) 4K driving recorder (2.89-inch IPS screen / 5.8G WiFi / single or dual channel)

Key features

Private-mould hot-selling model: single-channel 4K dash cam, dual 4K+1K version optional with rear camera
CPU HI3516CV610-20S Cortex-A7 with 1T NPU computing power
89 inch IPS LCD screen: on-screen display plus App display
Front camera GC4653 400W, lens 2G4P+IR, F1.8, angle D123° / H105° / V56°

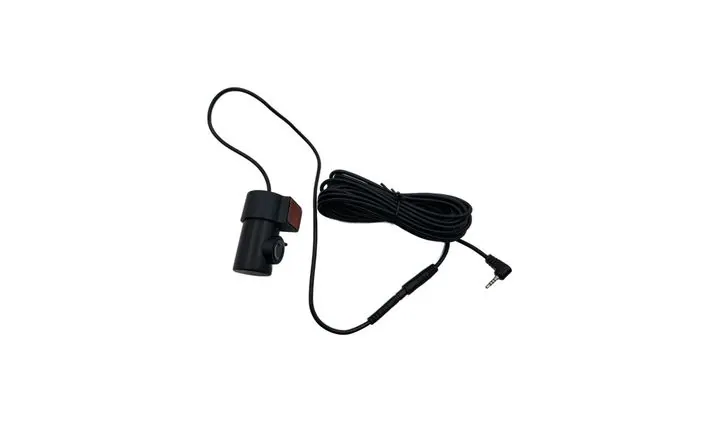

Optional rear camera GC2083 200W, lens 2G2P, F2.0, angle D140° / H105°
Recording resolution options: single 4K 3840x2160@30fps, dual 4K+1K, dual 2K+1K
8G WiFi with the FinalCamX App (31 languages)
Built-in GPS optional; electronic dog broadcast optional; 4G options for image / video upload and live view
H.264 / H.265, TS stream; one-second save technology keeps the last file even on sudden power loss
G-sensor collision lock (detectable range -16g to +16g, sensitivity 5)
Parking monitoring and time-lapse recording (step-down cable required)
Loop recording 1 / 3 / 5 minutes; one-key emergency recording
1GB DDR3 + 64MB SPI; 8Ω/1W speaker; built-in -42dB±2dB microphone

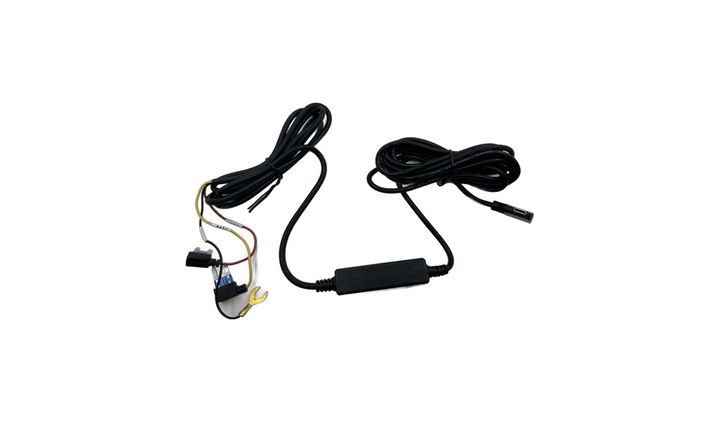

RTC button battery; Type-C car charger or ACC step-down cable (ACC detection / 8-pin BMW cable)
TF card up to 256GB (exFAT / FAT32)
Working temperature -20°C to +70°C, storage -30°C to +85°C
Working voltage 5V2A, rated current <0.8A, start time <8s
Bare unit 86.65 x 59.55 x 63 mm

Points to confirm before production so the unit arrives ready to fit.

Confirm single-channel 4K or dual-channel version (double-channel requires a rear-view camera)
Confirm whether you need built-in GPS (optional) and electronic dog function
Confirm whether 4G version is required (picture/video backhaul, real-time broadcast)
The TF card capacity information is inconsistent: the maximum specification is 256G, and the extended storage column is a maximum of 128GB. Please confirm before placing an order
Confirm the power supply method: Type-C car charger or ACC step-down cable (BMW cable)
Confirm the lens angle: This catalog information is for the front D123° / H105° / V56°, and there is also a saying of "horizontal 105 degrees"
Confirm whether a rear camera and its cable length are required.
Confirm language, logo, packaging and boot screen.
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

The main unit is fixed on the front windshield with 3M glue. Clean the glass before installation and avoid high temperature exposure
The power supply is 5V (Type-C); when using a step-down cable, connect it to normal power/ACC/ground according to the wire color. Do not connect the positive and negative poles reversely
Parking monitoring and time-lapse video require a step-down cable and low battery detection. Pay attention to the battery when parked for a long time
Disconnect the power before inserting or removing the TF card.
Before connecting the mobile phone to the recorder WiFi, first disconnect other WiFi saved on the mobile phone
Short press the button to take a photo, long press for 1 second to switch and then pull, long press for 5 seconds to restore to factory settings
Check the recording time, image and loop overwrite periodically, and export important footage promptly.
Keep the lens clean — rain, snow and mud all degrade the image and night vision.
