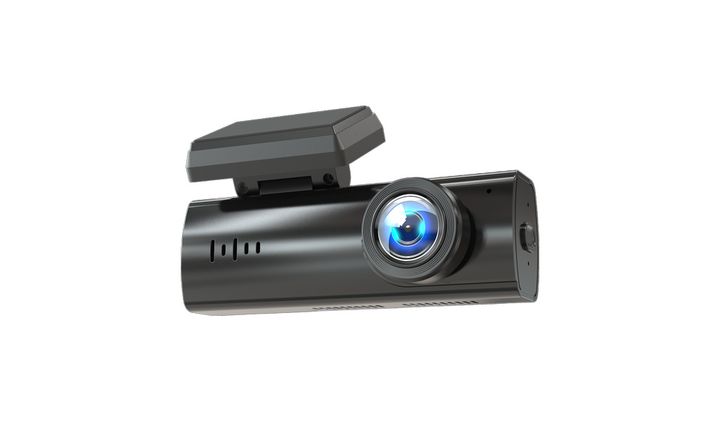

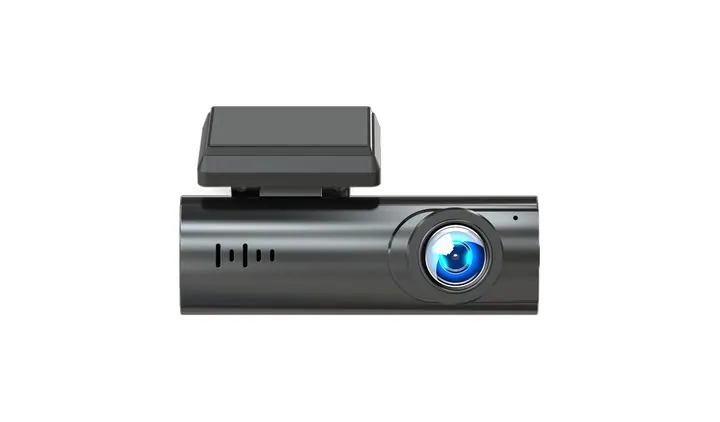

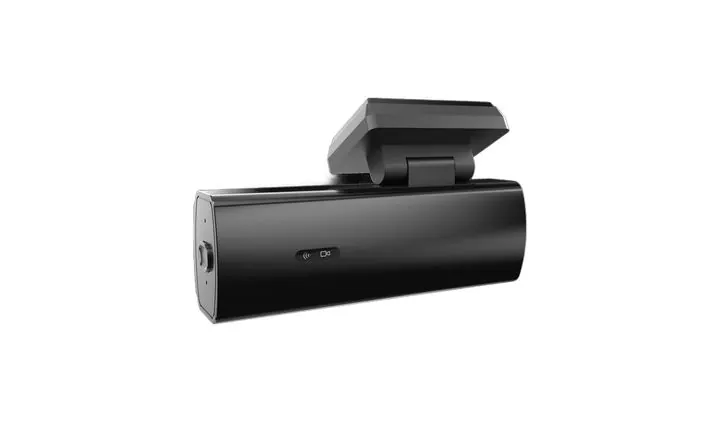

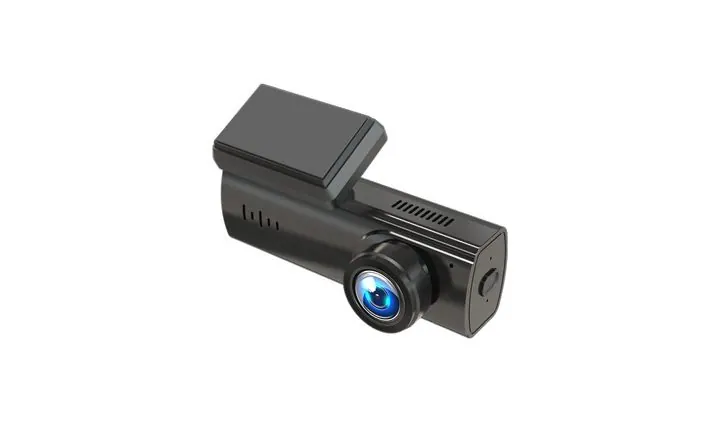

Main image and detail shots of the JFD-207.

Recording · MDVR & JFD

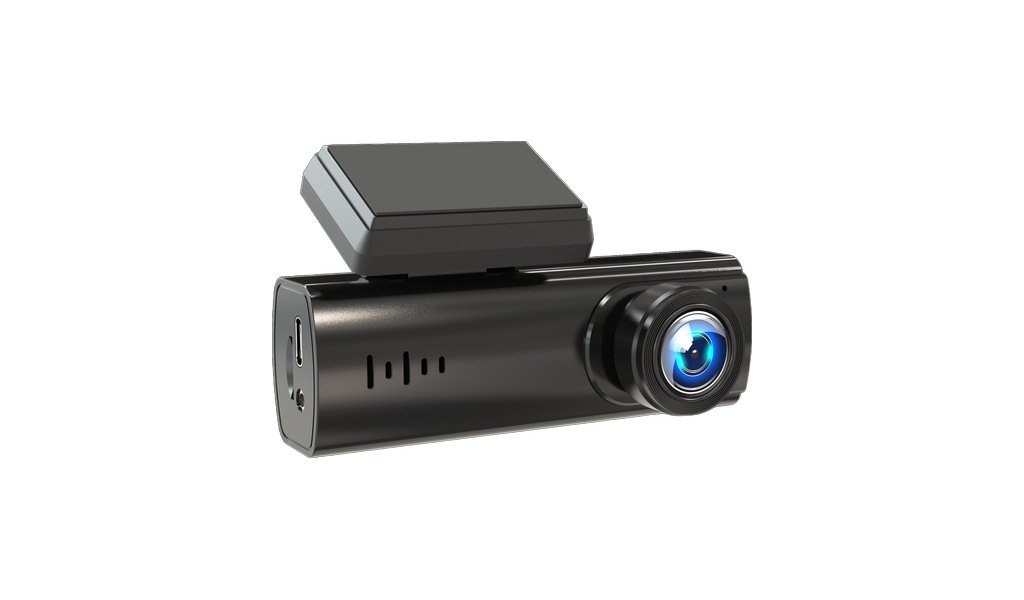

JFD-207

JFD-207 (A207P) single-channel driving recorder (differential 4K / 170° / WiFi + FinalCamX)

Key features

Single-channel dash cam with no screen: control and playback through the phone App (FinalCamX)
Interpolated 4K (2160p) recording; front 2G3P lens with 170 degree real viewing angle
Chipset HI-3516-610S with CV4002 image sensor
Built-in WiFi (RTL8188FTV USB transmission) for App preview, download and sharing
H.265 / H.264, MP4 file format; three-axis 3D G-sensor
Loop recording; night view; time-lapse mode; parking monitoring
Collision events are locked and will not be overwritten
App supports more than 30 languages
TF card up to 512GB
Power supply: cigarette-lighter car charger, optional ACC step-down cable; USB-C / TYPE-C 1-4-5
RTC button battery 5V / 2.5F, no supercapacitor
Housing: PC + ABS high-temperature resistant, black 3M adhesive mount
Bare unit 91 x 35 x 31 mm; net weight 450 g (whole set)
Operating voltage DC 9V-16V, rated current <0.8A, start time <8s
Operating and storage temperature -30°C to +85°C
Also available as a low-cost 1080p version (1080p@30fps, 150 degree, up to 128GB)

Points to confirm before production so the unit arrives ready to fit.

Confirmed version: A207P is a 4K difference version (TF maximum 512GB, 170°); there is also 1080P version information in the catalog (1080p@30fps, 150°, maximum 128GB), please confirm before placing an order
This "4K" is 2160p obtained by differential amplification of 1080P. If you want true 4K, please choose another model
Confirm GPS mode: built-in GPS or external GPS bracket (optional)
Confirm whether you need ACC step-down cable (optional, price extra)
Confirm the TF card capacity and whether it is included with the goods
Confirm if you want built-in GPS version and 4G option
Confirm language, logo, packaging and boot screen.
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

The host is fixed on the front windshield with 3M glue. Wipe the glass clean before installation. Do not expose to heat or moisture within 24 hours after pasting
The power supply is 9-16V; when using a step-down cable, connect the red wire to normal power, the ACC wire to ignition, and the black wire to ground. Do not connect the positive and negative poles reversely
The power must be cut off before inserting or removing the TF card to avoid data damage
Before connecting the mobile phone to the recorder WiFi, it is recommended to disconnect other saved WiFi on the mobile phone
Complete the device binding in the app for the first time, and then view and download the video
Format the TF card regularly and check the recording time, screen and loop coverage, and export important videos in a timely manner
Keep the lens clean — rain, snow and mud all degrade the image and night vision.
Do not work at high brightness for a long time when exposed to the sun in summer. Pay attention to heat dissipation
