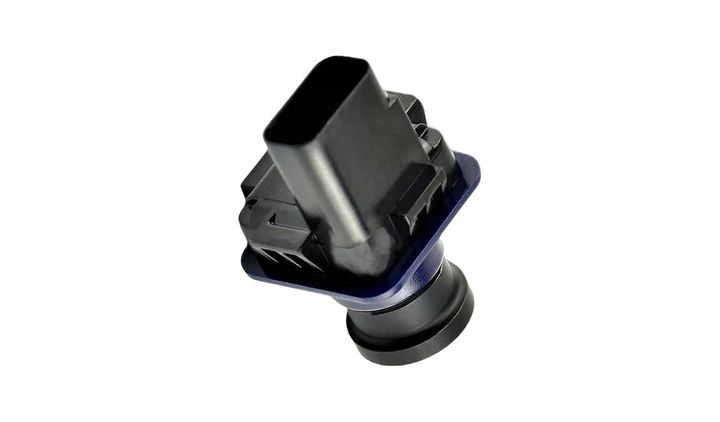

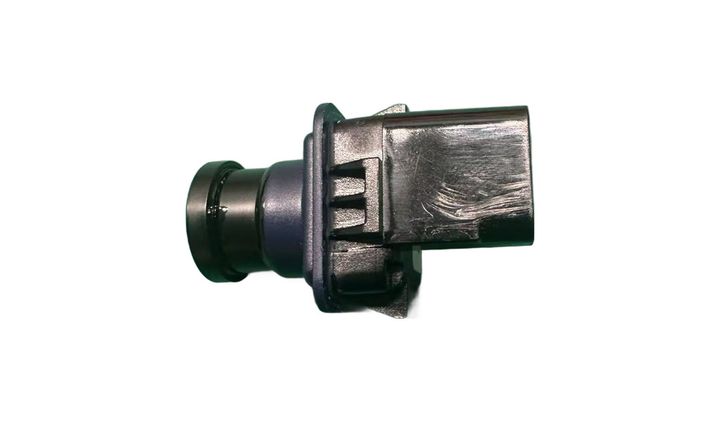

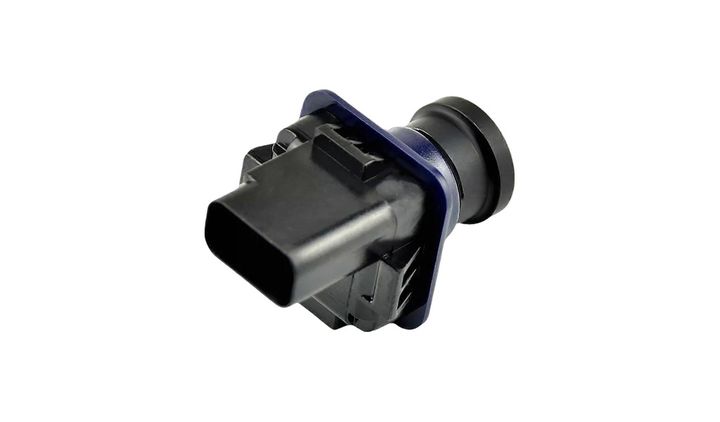

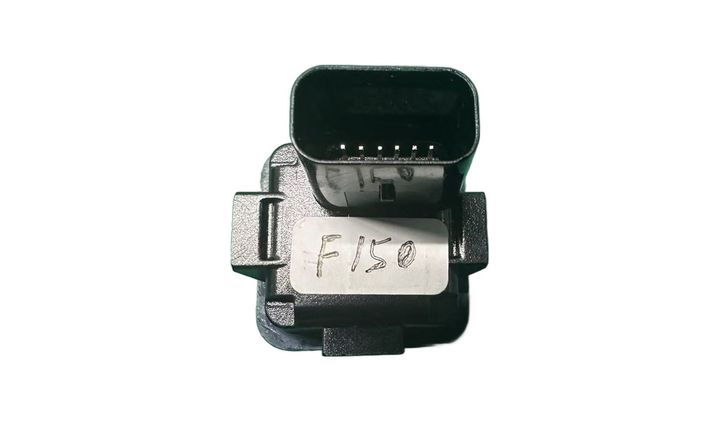

Main image and detail shots of the EL3Z-19G490.
EL3Z-19G490 Ford F150 / Raptor factory rear view camera (2011-2014)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
EL3Z-19G490 datasheet — full specification, ordering notes and installation guidance as a PDF (261 KB). Open it here or ask us to email it with your quotation.
Key features
- [It can be used when matching OE] OE: EL3Z-19G490-D (same family as AL3Z-19G490-A, BL3Z-19G490-B, CL3Z-19G490-C / -D) | Model: Ford F150 2011-2014 (same part number as Raptor) | Position: Rear view reversing camera. Please provide the customer with factory camera photos for verification again
- Ford F150 / Raptor factory rear view camera, OE AL3Z-19G490-A, BL3Z-19G490-B, CL3Z-19G490-C / -D, EL3Z-19G490-D
- One model covers F150 2011-2014 multiple model year part numbers, with a wide range of replacements
- Sensor: 1/4" On-Semi (USA) CMOS active pixel array, Nidec (Japan) glass + plastic lens
- Minimum illumination 0.1Lux, effective pixels 728×582, 600 TV lines
- Viewing angle 170°, standard NTSC / PAL, electronic shutter 1/50~1/100,000 seconds
- Waterproof to IP68, power supply DC 6~12V
- The factory harness plug is connected, no wire cutting, the appearance is matches the factory part
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check the OE number: This model can replace the four series part numbers AL3Z / BL3Z / CL3Z / EL3Z, confirm according to the customer's factory label
- Confirm model (F150 or Raptor) and model year 2011-2014
- Confirm the camera position — reversing view, or which channel of the 360 system.
- There is another "Mustang EL3Z19G490D" folder in this directory that also uses EL3Z-19G490-D. Pay attention to distinguish the reports: Mustang pair 2015-2020, F150 pair 2011-2014
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power up and check the reversing image and the factory guide lines work correctly.
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
