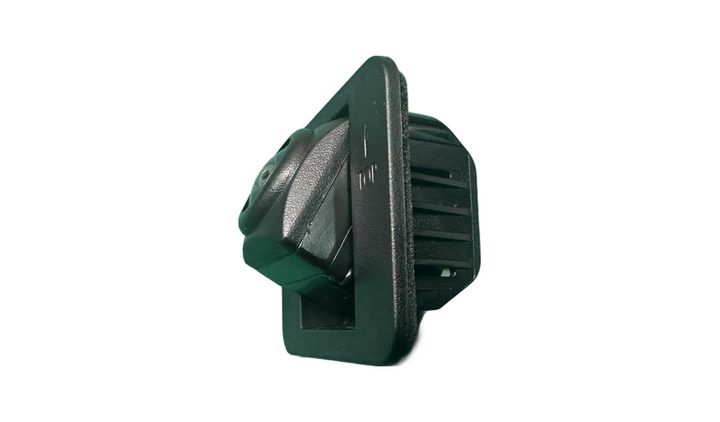

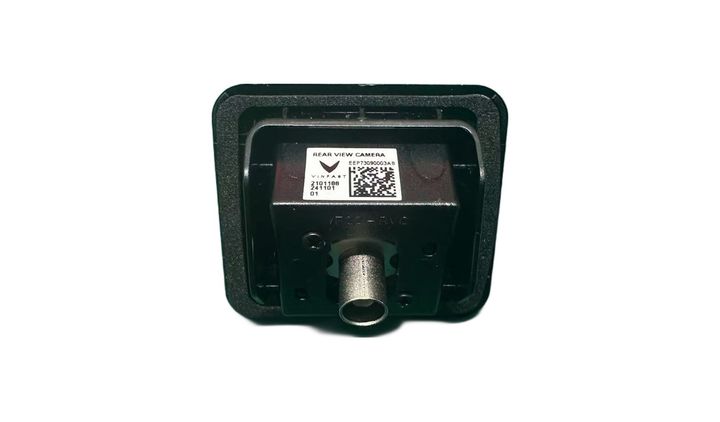

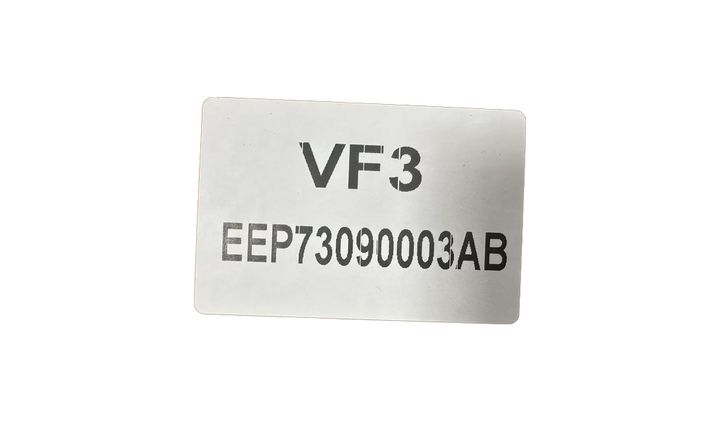

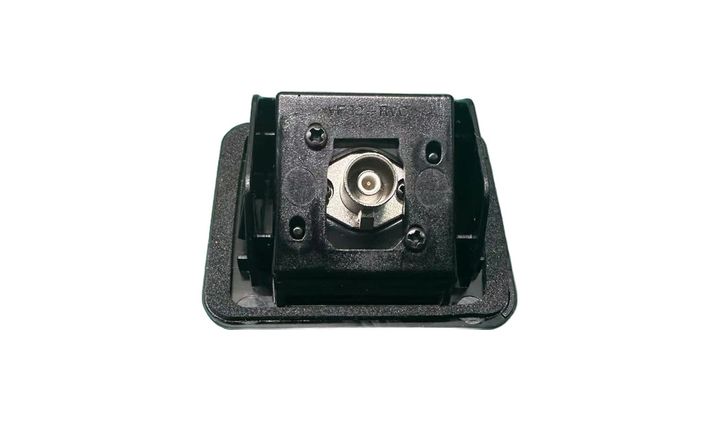

Main image and detail shots of the EEP73090003AB VinFast.
EEP73090003AB VinFast VF3 factory reversing camera (digital HD/coaxial transmission)
Key features
- [It can be used once the OE is matched] OE: EEP73090003AB | Car model: VinFast VF3 | Location: Rear view reversing camera. If the OE number is consistent, it can be directly replaced. Before placing an order, please provide the factory harness camera photo to check the appearance and plug
- VinFast VF3 dedicated digital high-definition reversing camera, OE number EEP73090003AB, direct replacement of original parts
- 1.3 million pixels BSI back-illuminated CMOS, 120dB high dynamic, good low-light contrast
- Megapixel image processor: automatic white balance, automatic exposure, automatic gain
- Coaxial cable transmission: three-in-one control, video, and power supply, transmission distance 8m, maximum 15m, low loss
- Maximum resolution 1344×968 (1.3MP), 30fps, viewing angle H190° / V120°, minimum illumination 0.5Lux
- Working voltage DC8V (range 5~12V), working current ≤200mA, maximum power ≧1W
- Power-on response ≤500ms, image stability ≤1s, suitable for instant picture production when reversing
- Working temperature -40°C~+85°C, storage -40°C~+95°C, humidity 10~95%RH
- Protection grade IP6K9K, the whole machine is about 100g, lens aperture F2.0
- With infrared filter, output format YUV422-8bit, optical axis deviation ≤±10 pixels
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check that the OE number EEP73090003AB is completely consistent (including suffix)
- Confirm it is VF3 model and year; confirm camera position (rear view/other)
- It is recommended to use LEONI Dacar462/302 coaxial cable + FAKRA connector for the coaxial cable harness, or use a cable harness and connector with equivalent or higher performance
- Confirm whether wires are needed with the goods; confirm the quantity, packaging and silk screen printing
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Do not open the sealed camera assembly. User disassembly and assembly by yourself does not guarantee the warranty; do not turn on the power during installation
- It is recommended to install in a dust-free environment to avoid dust entering the lens
- Disconnect the negative terminal of the battery before installation, and protect the buckle, waterproof ring and coaxial plug when disassembling the factory parts
- After installation, make sure the buckle is in place, the sealing ring is pressed tightly, and the coaxial connector is inserted all the way
- Power on and test whether the reversing screen and factory auxiliary functions are normal
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original disassembled vehicle parts to facilitate subsequent restoration
