Main image and detail shots of the 39530-TBA-A01.

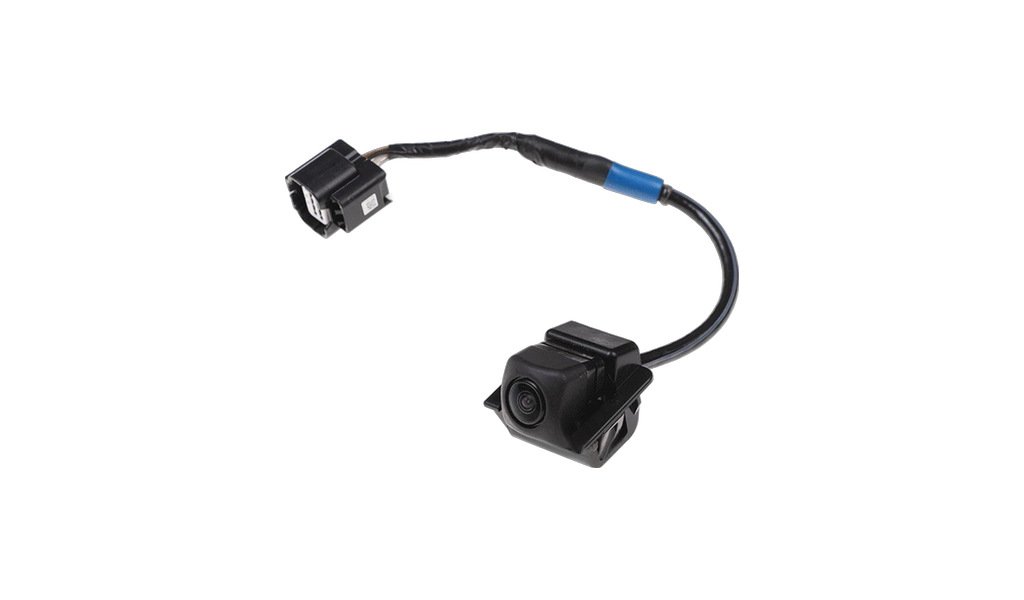

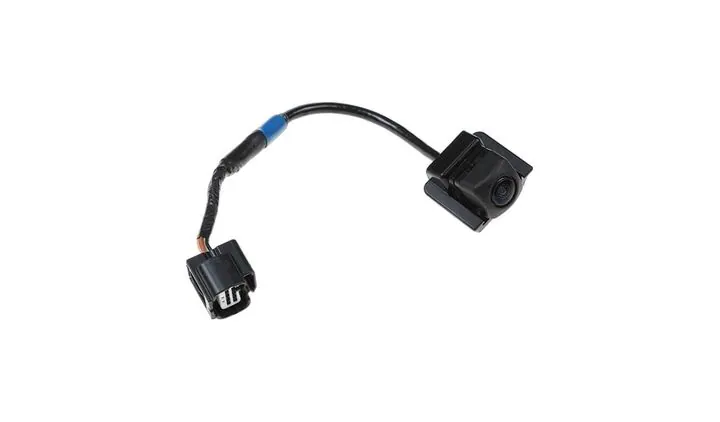

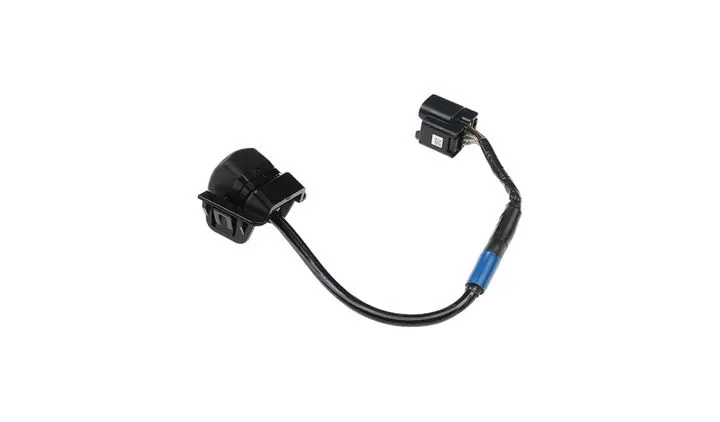

39530-TBA-A01 Honda Civic factory rear view camera (2014-2019)
Key features
- [It can be used if the OE is matched] OE: 39530-TBA-A01 | Model: Honda Civic (the OE cross-reference list is marked 2014-2019; the folder in this catalog is marked 2016-2021, press OE to check the year before placing an order) | Location: Rear view reversing camera. If the OE number is consistent, it can be directly replaced. Before placing an order, please provide the factory harness camera photo for verification
- Honda Civic factory rearview camera, OE 39530-TBA-A01 (also written as 39530TBAA01)

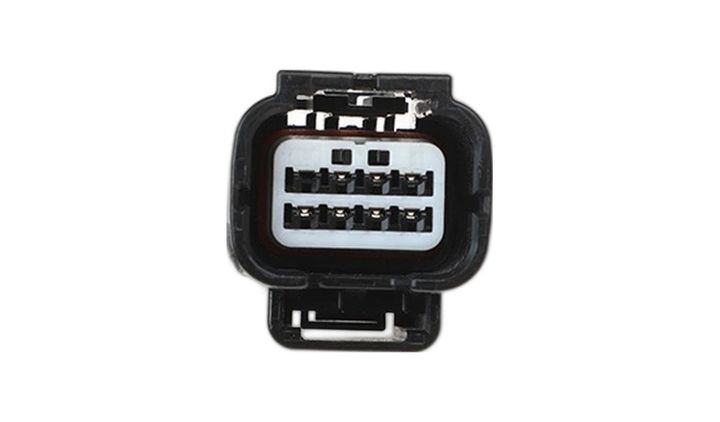

- Factory plug connection, no wire cutting
- The appearance is matches the factory part, and the installation position and angle are the same
- Sealed housing, rainproof, resists mud and pressure washing
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the model year first: 2014-2019 is written on our OEM cross-reference, and 2016-2021 is written on this catalog folder. Check with the customer or the factory system according to the OE number
- Ask the customer for photos of the factory camera — front, back, plug, bracket and the OE label on the housing — and check them against ours one by one.
- Check that the OE number 39530-TBA-A01 is exactly the same (Civic has other part numbers such as 39530-TEA-H01, so pay attention to distinguish them)
- Confirm the camera position — reversing view, or which channel of the 360 system.
- Confirm quantity, packaging and printing.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Disconnect the battery negative terminal before installation and keep the circuit unpowered while working.
- When removing original parts, protect the clips, seals and plugs — do not force them.
- After fitting, check the clips are fully seated and the seal is compressed so water cannot seep in.
- Power on and test whether the rear view image and the factory dynamic auxiliary line are normal
- When washing, do not hold a pressure washer directly on the camera or connector.
- Keep the original parts you removed.
