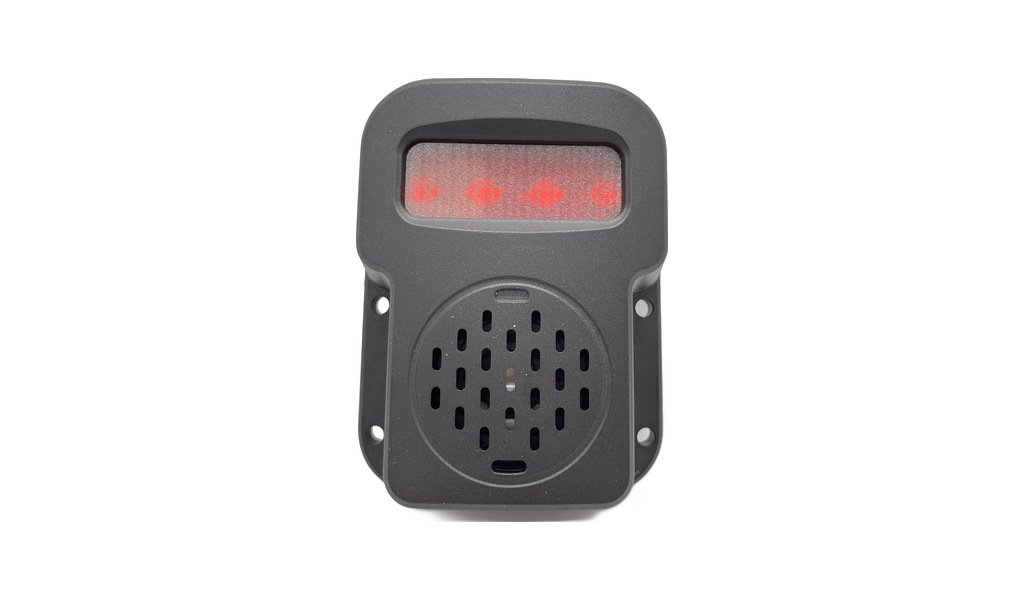

Speaker car sound and light alarm series (voice alarm / sound and light alarm, IP67-IP68, can be deeply custom)

Request a Quote Email about Speaker

Key features

Wire: Length, wire diameter, and connectors can be custom (GX12-4P / 6P aviation connector, bare wire, waterproof plug, custom terminal, Shuangde wire aviation connector uncharged version)
Color: Shell color can be custom. The regular color is black/orange/military green, other colors can be made according to customer requirements (custom Korean white models have been made)
Function: sound alarm/light alarm/sound and light alarm; IO trigger (high level or low level), RS485, RS232; light flashing or simulated rotation
Voice content: MP3 customization, can record customer-specified voices (alarm, prompt, reversing, brand prompt), supports multi-language - Chinese, English, French, Korean, Spanish versions have been made
Volume: Adjustable volume version is optional; external speakers can also be installed to make a "louder" version
Shell and structure: metal (aluminum die-casting) / plastic (ABS) / reinforced nylon, round / square / small, multiple options available
Wireless solution: Wireless alarm solution can be used (wireless alarms have been mass-produced in France), no wiring required, suitable for trailers, drop-hook, and later installation
Communication protocol: RS485 protocol has complete documentation (packet header 0xaa55, packet tail 0x55aa, default address 0x01, 9600,n,8,1, CRC check, data big endian), which is convenient for customers to do host/platform docking by themselves
OEM / ODM: silk screen, logo, packaging, wiring definition can all be done according to the project
Working voltage DC 8-36V; working temperature -30~+80°C; maximum power 12W
Communication: RS485/RS232 optional, IO×4 optional (high level trigger); baud rate 4800~115200
Speaker power 5W; light white/red/yellow optional; LED simulates rotation or flashing
Connector: aviation connector GX12-4P / 6P female seat (can be custom); line length 500mm (can be custom)
Mounting: 4 fixing holes, M5 screws
Protection: IP68
Shell: aluminum die-casting 100×100×45mm / 280g; or ABS plastic 100×100×51mm / 160g
Shell color: black, orange, military green (other colors can be custom)
Working voltage DC 6-36V; working temperature -40~+80°C; maximum power 10W
IO×2 optional (high/low level); baud rate 9600
Speaker 3W; LED flash; red light
Connector: aviation connector GX12-4P male connector (can be custom); cable length 15cm (can be custom)
Installation: 4 fixing holes, M4 self-tapping screws
Protection IP67; metal housing
Suitable for trucks/large vehicles; working voltage DC 12-48V; current 300mA; power 15W
Volume 105dB; weight 315g; diameter 70mm
Material reinforced nylon, black; IP67 (can be soaked in water for a short time)
Fleet blind spot/turning/reversing voice reminder (used with radar, BSD, MDVR)
Off-board voice prompts for construction machinery, dump trucks, sanitation trucks, buses, and mining trucks
Security management of warehouses, parking lots and parks
Overseas projects that require "customers' own language + own prompts" - projects have been implemented in France, South Korea, and Australia
We don’t just sell a standard product: the voice, color, wires, and functions can all be changed according to customer projects
Multi-language voice-over has been done: French, Korean, English, Spanish, new languages can be added quickly
There are wired/wireless solutions, so trailers and hitches no longer have to worry about wiring
The communication protocol documentation is complete, making it convenient for customers to connect the vehicle host and platform themselves

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

First confirm which one you want: round metal / round plastic / small metal / economical / wireless
Confirm the voltage: round model DC8-36V, small model DC6-36V, economical model DC12-48V, confirm by model
Confirm communication/trigger mode: RS485, RS232, IO trigger (high level or low level), or only local sound and light
Confirm the voice content: use our standard voice, or the customer provides MP3 files/copywriting and we record it; how many languages do you need?
Confirm the volume requirements: standard volume / adjustable volume / external speaker to increase the volume
Confirm the wire material: length, wire diameter, connector form (GX12-4P/6P, bare wire, waterproof plug, custom terminal)
Confirm the shell: material (aluminum die-casting / ABS / nylon), color, silk screen content
Confirm whether a wireless solution is required (wiring-free scenario), as well as wireless distance and pairing requirements
Confirm whether RS485 communication protocol document is required (default address 0x01, 9600, n, 8, 1)
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Confirm the voltage before wiring. Do not reverse the positive and negative poles; do not reverse the A/B lines of RS485
The horn and lamp face outward to avoid being blocked by mud or ice
IP67 / IP68 is a level of protection against water immersion / water spray, but it does not mean resistance to long-term direct impact with a high-pressure water gun
Use specified specification screws (M4/M5) for the fixing holes. The mounting surface should be flat. Tighten but do not over-torque
During debugging, first confirm the communication address and baud rate, and then connect to the vehicle system (default 0x01 / 9600,n,8,1)
Custom voice version: After changing the voice file, be sure to test it by powering on the actual car to confirm that the playback is normal and the volume is appropriate
Wireless version: Pay attention to the pairing and installation position of the transmitter and receiver to avoid being shielded by the metal car and shortening the distance
