KP-02 Forklift Fingerprint Start Lock (Fingerprint Start/Stop, DC12-110V, IP65) - Universal for diesel forklifts and

Name: KP-02 — KP-02 Forklift Fingerprint Start Lock (Fingerprint Start/Stop, DC12-110V, IP65) - Universal for diesel forklifts and
Brand: JFA-CAM

KP-02 Forklift Fingerprint Start Lock (Fingerprint Start/Stop, DC12-110V, IP65) - Universal for diesel forklifts and battery forklifts

Request a Quote Email about KP-02

Key features

Only drivers whose fingerprints have been registered can start the forklift, and those who have not recorded their fingerprints cannot drive
Put an end to "illegal uses" such as driving without a license, renting cars, driving privately to do private work, etc
Fingerprint is the key: no need to bring a card or remember a password, record it once and use it for a long time
Fingerprint authority management, one car can record up to 99 fingerprints (multiple drivers can also manage if they share one car)
When the fingerprint cannot be turned on, you can also use the remote control to operate the device (enter/delete fingerprints)
Strictly restrict operating authority to prevent illegal use of vehicles by unrelated persons
Improve management efficiency and reduce labor costs: no more key issuance, key collection, paper registration, and fingerprints can be deleted directly when personnel changes
Linked with safety management: Incorporate "who can open and when" into the company's safety system and standardize operating procedures
Prevent idling and abuse: cars will not be driven away and equipment utilization will be higher
Working voltage DC 12-110V: applicable to both diesel forklifts and battery forklifts, no need to specify models
No modifications are made to the original parts of the forklift, and the factory control system is not changed. Normal driving and annual inspection will not be affected after installation
Maintenance-free, mechanical contact-free, fully electronic design, once installed and used for a long time
Fully floating anti-shock design, good anti-seismic performance, suitable for long-term bumpy working conditions of forklifts
The power cord has an anti-short circuit design and a built-in overcurrent protection circuit for strong stability
IP65 waterproof and dustproof, it can be installed outside the forklift without fear of rain and washing
Working temperature -30~+80°C
Get in the car and press your fingerprint → Voice prompt "Login successful" → Vehicle starts
Press again → Voice prompt "Logout successful" → Vehicle stalls
Full voice prompts: login success/failure, logout success/failure, fingerprint entry success/failure, fingerprint deletion success
The remote control can be set within 3 meters: remote control "+" to enter fingerprints, remote control "-" to delete the current fingerprint, and the key combination can clear all fingerprints
Note: When it prompts "Login successful" but the car is not running, you need to log out first and then log in again
Diesel forklift, electric forklift, stacker, tractor, road roller, loader
Brands that have been installed: Linde, Jungheinrich, TCM, Heli, Hangcha, Daewoo, Hyundai, Toyota, Nissan, Crown, Clark, Mudanjiang, Mitsubishi, Lonking, Liugong, BT, OM, Tailifu, and various imported fuel/battery forklifts

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the model and voltage: This model is DC 12-110V, universal for diesel forklifts/battery forklifts. Check again according to the actual model before placing an order
Confirm fingerprint capacity: up to 99 fingerprints, confirm whether the customer needs full registration
Confirm the number of wires: This wire harness has four wires: normal power/ACC/ground wire/ignition wire; refer to similar products, battery forklifts may only need to connect 3 wires (ignition wires are not connected), confirm according to the instructions and the factory
Confirm whether the version requires password/card swiping and other startup methods (this model is fingerprint + remote control configuration)

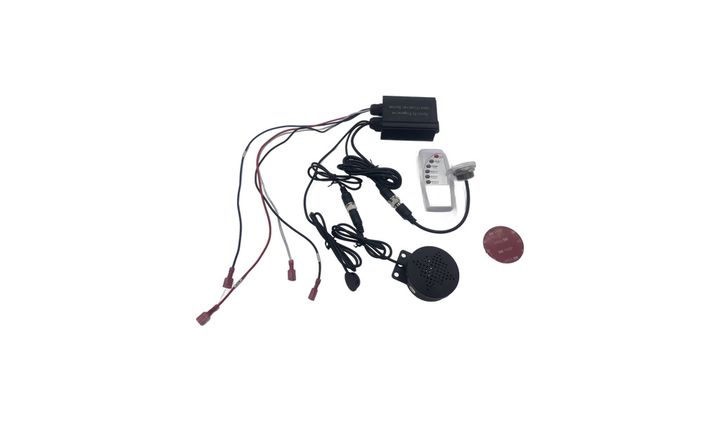

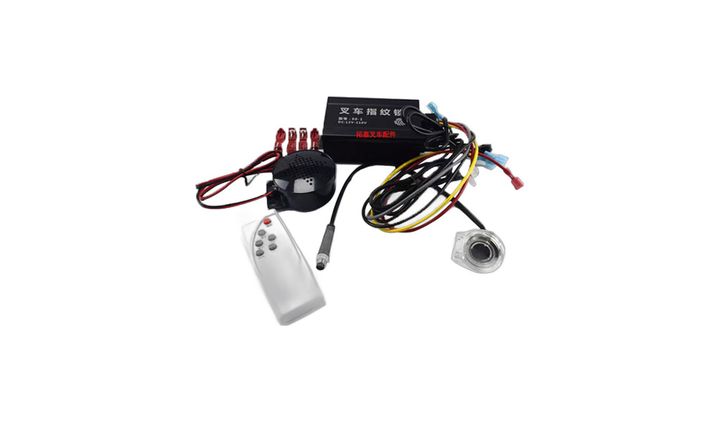

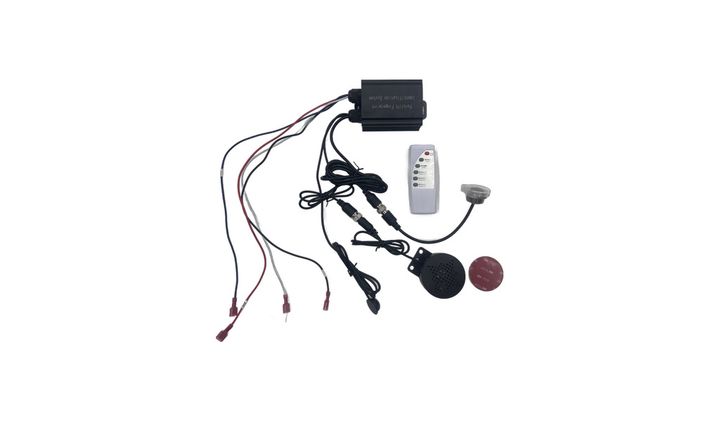

Confirm the accessories list: host, fingerprint head, fingerprint head cable, speaker, speaker cable, remote control, signal receiving cable, power harness
Confirm the length and connector of the harness and whether an extension cord is needed
Confirm whether you need to provide instructions with the goods (both Chinese and English versions are available)
Confirm the installation position: The fingerprint head is installed in a position where the driver can easily press it, and the host is hidden in a place that is not easily damaged
Confirm quantity, packaging and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Confirm the voltage before wiring, and do not connect the positive and negative poles reversely; it is recommended that an electrician perform the wiring according to the instructions
Unused wires should be wrapped and insulated to avoid safety hazards caused by accidental contact
Before powering on the device, check whether there is a short circuit in the speaker wire: a short circuit in the speaker wire will directly damage the device and there will be no voice output
When connecting the fingerprint head connection cable, the triangle is triangle to triangle. The needle is very thin. Misalignment will distort the needle and lead to poor contact
It is recommended that a driver enter multiple fingers: smooth, peeling, and wrinkled fingers will affect the recognition rate
Just after recording the fingerprints, I need to do a "vehicle start" test to confirm that it can start normally before handing over the car
The host is installed in a location where water is not easy to enter and is not easily damaged; the fingerprint head panel should be kept clean, as oil stains will affect the recognition rate
After a person leaves the company or changes their position, delete the corresponding fingerprints in a timely manner
