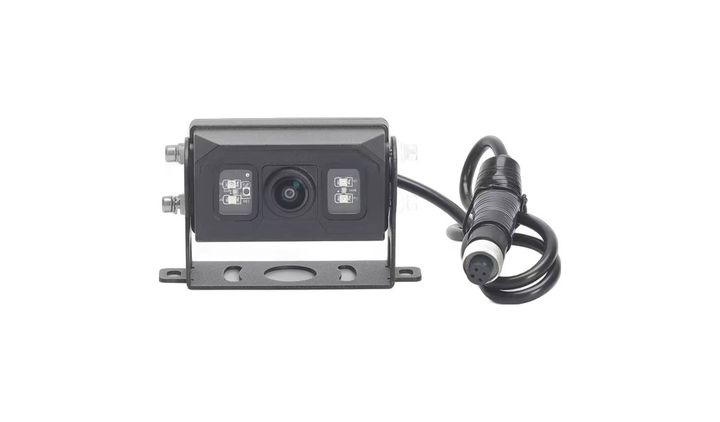

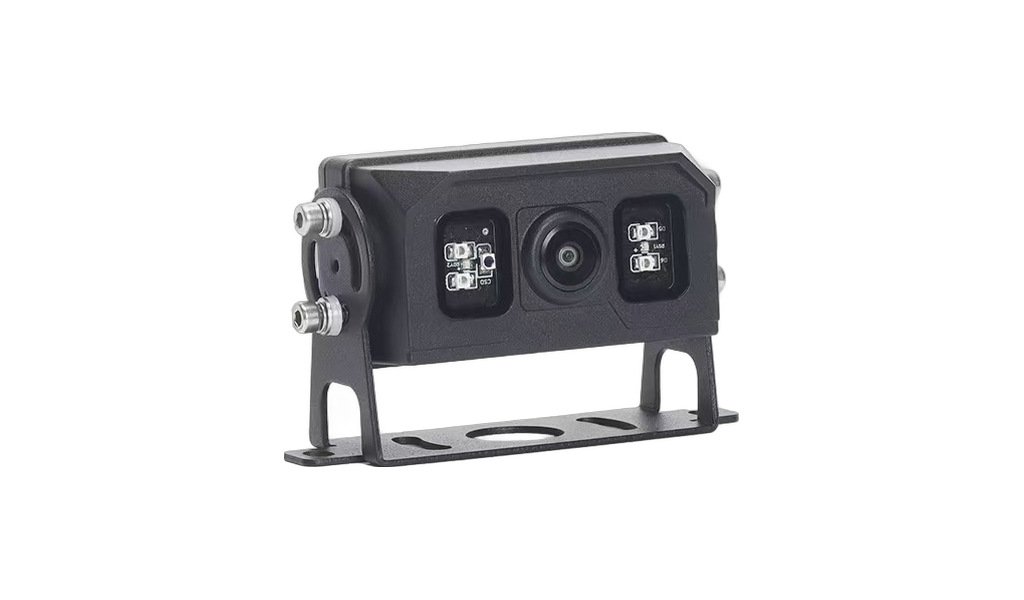

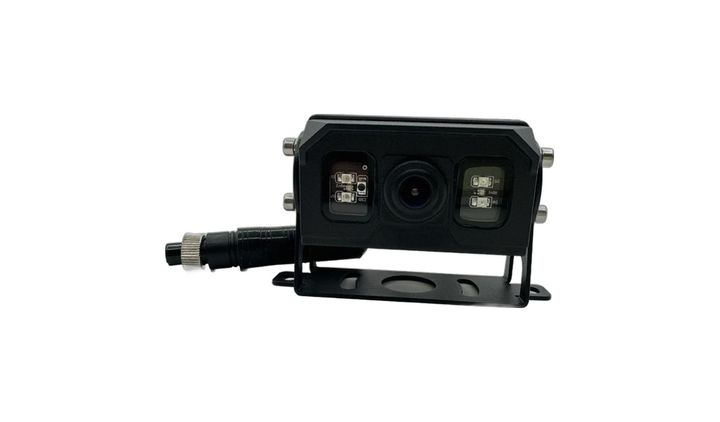

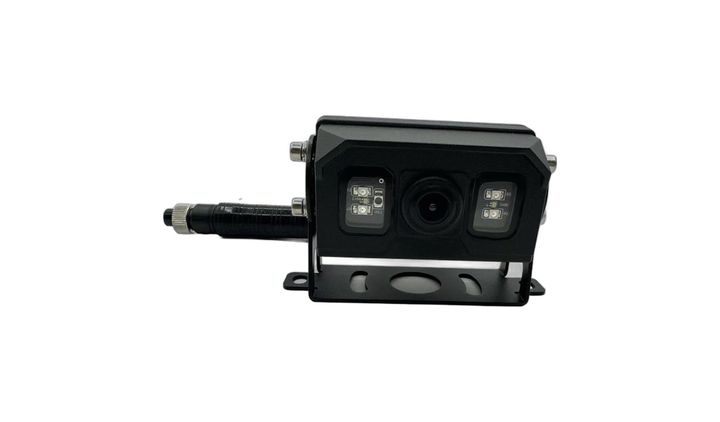

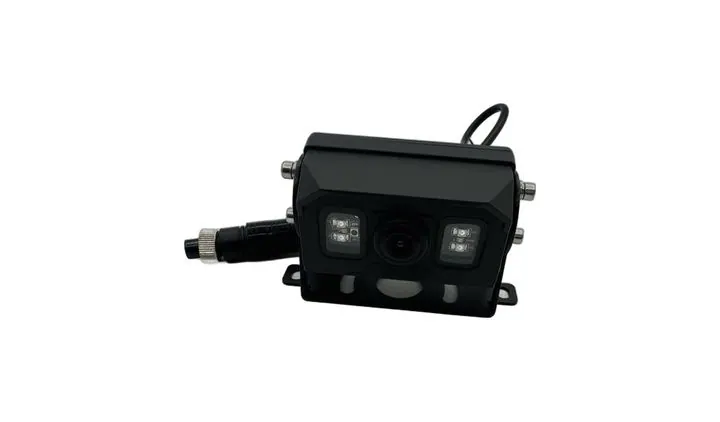

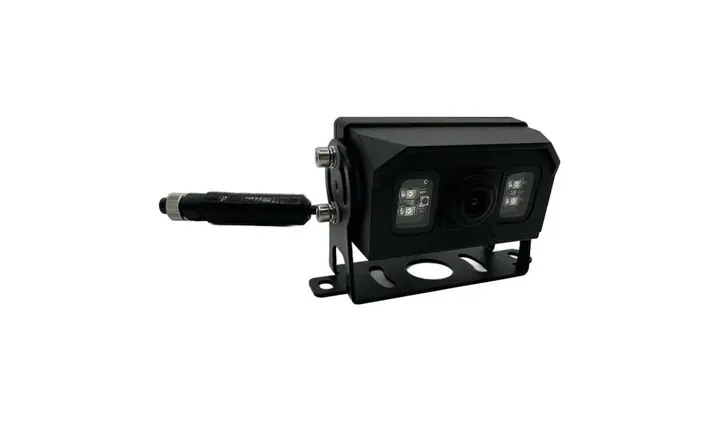

JPC-181 illuminated blind spot camera (AHD camera + three-color warning light + audio alarm, two versions available)

Request a Quote Email about JPC-181

Key features

Model A 160° infrared high-definition model (HY-876SAHD-160): 1080P high-definition + 4 high-power infrared lights, night vision ≤15m, see the rear/side rear of the car
Model B AI-BSD three-in-one alarm model (HY-876AHD-AI-JD): true starlight full color + green/yellow/red three-color light + audio alarm, specially designed to treat the blind spot on the right side of the vehicle
The shell, structure, waterproofing, and connectors of the two versions are exactly the same. The only difference is "whether AI blind zone alarm is required"
1080P AHD, 1920(H)x1080(V) (2 million pixels)
Horizontal 160° super large viewing angle: one lens fully covers the side and rear of the large vehicle, making the blind spot smaller
4 high-power infrared lights, minimum illumination 0 Lux (lights on), night vision distance ≤15 meters
Separation design of lens and IR LED: Solve night vision exposure and light shadow phenomenon (ordinary cameras are all white at night, with light spots)
Vehicle-specific IR-CUT + shock-proof design, automatic color to black, color during day and black and white at night
Stainless steel screws with spring washers, no rust for a long time
Fits: buses, dump trucks, mixer trucks, agricultural machinery, trucks, special-purpose vehicles, fire trucks, ships
Three-in-one: AI blind spot detection + green/yellow/red three-color light warning + audio alarm, one unit is equivalent to three units
Three-color staircase alarm, you can tell how close you are at a glance
· Green zone 3.0-5.0 m → green light + long beeps, there are obstacles, please pay attention
· Yellow zone 1.5-3.0 m → yellow light on + beeping speed up, approaching, slow down
· Red zone 0-1.5 m → Red light on + continuous beeping, entering the danger zone, stop immediately
Both people and vehicles can be recognized: pedestrians and vehicles are detected in real time, with logo frames and movement tracking on the screen
Synchronous early warning inside and outside the car: the driver sees the logo frame on the display, and pedestrians and vehicles outside the car see lights and hear sounds
Built-in alarm sound; optional audio output, equipped with a display with a power amplifier to achieve alarm (no external buzzer required)
True starlight full-color night vision: Class A 720P-AHD true starlight chip, just a little starlight at night is a full-color picture, and the night vision will not be overexposed and white like infrared cameras
Wide angle 110° (170° optional)
The humanoid alarm/vehicle alarm can alarm at the same time or separately
Ruler warning area size, positive/mirror image, PAL/NTSC can be set
Aluminum alloy shell: shockproof and drop-proof, light weight (200g), good heat dissipation, high grade
Submersible pump waterproofing process: truly 100% waterproof (IP68)
Anti-seismic and anti-interference design, specially designed for large vehicle environments
4-core aircraft carrier plug, with self-locking function, will not loosen on bumpy roads
Patented appearance, specially designed for large vehicles, exquisite and unobtrusive after installation
Standard U-shaped adjustable bracket: loosen the 4 hexagonal socket screws on both sides to adjust the angle up and down, and adjust the locking
Dimensions (actual measurement): Base width 102.2mm, body width 77.1mm, overall height 62mm, lens diameter ø14.2mm
Resolution: Type A 1080P 1920x1080 (2 million pixels); Type B 720P 1280x720 (1 million pixels)
Night vision: Type A has 4 high-power infrared lights, night vision ≤15m; Type B has true starlight full color (no infrared lights), minimum illumination 0.01 Lux
Viewing angle: Type A: about 160° horizontally; Type B: about 110° (170° optional)
Alarm function: Type A: None; Type B: green/yellow/red three-color light + voice alarm + AI human and vehicle recognition and tracking
Waterproof: Both models are IP68
Power supply: both models are DC 12V (24V is optional for model B)
Power consumption / net weight / operating temperature: both models are 2W / 200g / -20~+70°C (humidity <93%)
Common items: PAL/NTSC, automatic white balance, automatic backlight compensation, automatic electronic shutter, automatic AGC, GAMMA 0.45, video output 1.0Vp-p 75Ω AHD, microphone optional
Bus/bus, container truck/container truck, commercial vehicle/van, truck/tractor
Special-purpose vehicles, dump trucks, mixer trucks, fire trucks, agricultural machinery, ships
Logistics fleet, special vehicles
It is mainly installed in the blind spot on the right side of the vehicle (near the passenger side), and can also be used for rear and side rear monitoring

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Section B Confirmation: Whether an external regulator is needed (optional, used to change the size of the warning area and alarm mode)
Confirmation in Section B: Whether the humanoid alarm/vehicle alarm is at the same time or separately; what distance should the size of the warning area be set at?
Confirm resolution and format: Type A 1080P / Type B 720P, PAL / NTSC
Confirm the lens angle: Model A is fixed at 160°; Model B is 110° (170° is optional)
Confirm voltage: Default DC12V, for 24V models, please confirm whether you want the 24V version
Confirm whether you need a microphone (audio is optional)
Confirm the connector form: default 4-pin aviation connector (female plug, with self-locking) and wire length
Confirm the installation position: the blind spot on the right side of the vehicle (near the passenger side), the bracket hole position and adjustment angle are as shown in the drawing
Default specifications: 2053 + 8536H solution / PAL system / without reversing auxiliary line (no park line); without wide dynamic range (WDR) function, please explain in advance if other configurations are required
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

This list covers the main points. The full ordering sheet for this model is available on request.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Confirm the voltage (DC12V) before wiring. Do not connect the positive and negative poles reversely
The lights and alarms have high power, so it is recommended to add separate fuses with sufficient wire diameter
Insert the 4-core aviation connector to the bottom and lock the self-locking buckle to avoid loosening due to bumps
Fix the wiring well and avoid high temperature parts and sharp sheet metal edges
The installation position must cover the right blind spot and not be blocked by the fender, spare tire or car body
After Model B is installed, actual testing is required: find someone to walk at three distances: 5m/3m/1.5m, and confirm that the green/yellow/red lights and alarm sounds are corresponding correctly before handing over the vehicle
Dirty lenses and light surfaces will affect the picture and light output, so clean them regularly
IP68 is a water-proof seal, but when washing the car, avoid direct high-pressure water gun directed at the lens and connectors for a long time
