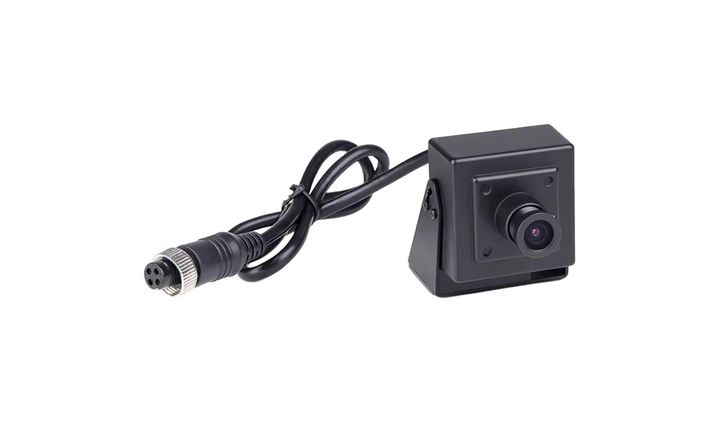

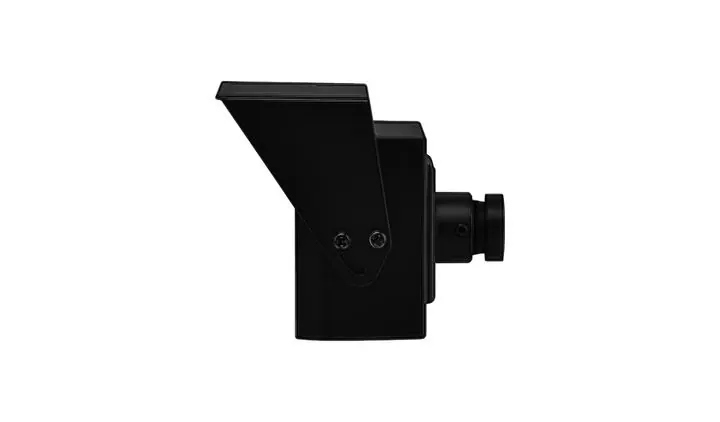

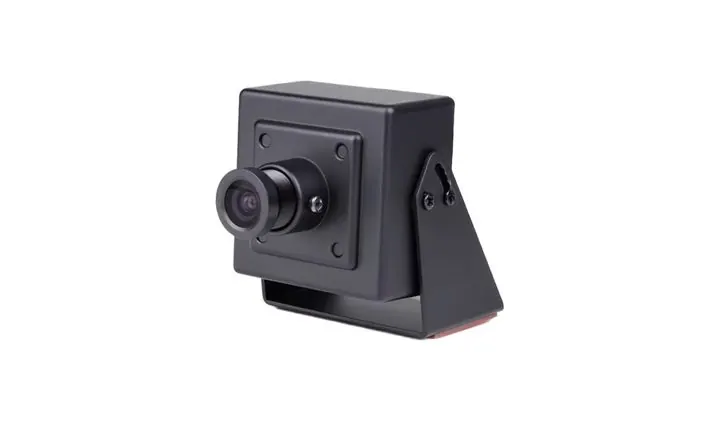

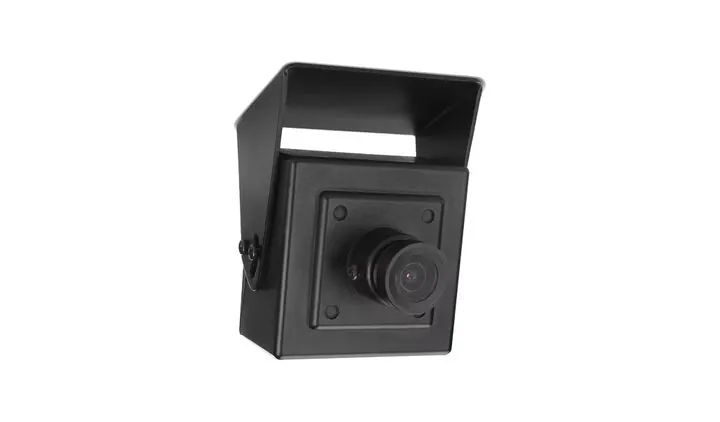

Main image and detail shots of the JPC-180.
JPC-180 front-view ceiling camera
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- Front view camera for ceiling / overhead mounting
- Metal housing with hood, bracket for ceiling or front panel installation
- 4-pin aviation cable, standard 0.5 m pigtail
- AHD 720P / 1080P output options - confirm with the factory
- For front view, blind spot and passenger area monitoring
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
- Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
- Confirm cable length. 0.5 m tail is standard and made to order.
- Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
- Confirm whether a waterproof boot is required.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
- Confirm the type of ceiling bracket and whether adjustable angle is required
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
- Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
- Tighten the connector and fit the waterproof boot to keep water out.
- Tighten the screws once the angle is set.
- The IP rating is subject to factory confirmation; when washing, do not hold a pressure washer on the lens or connector.
