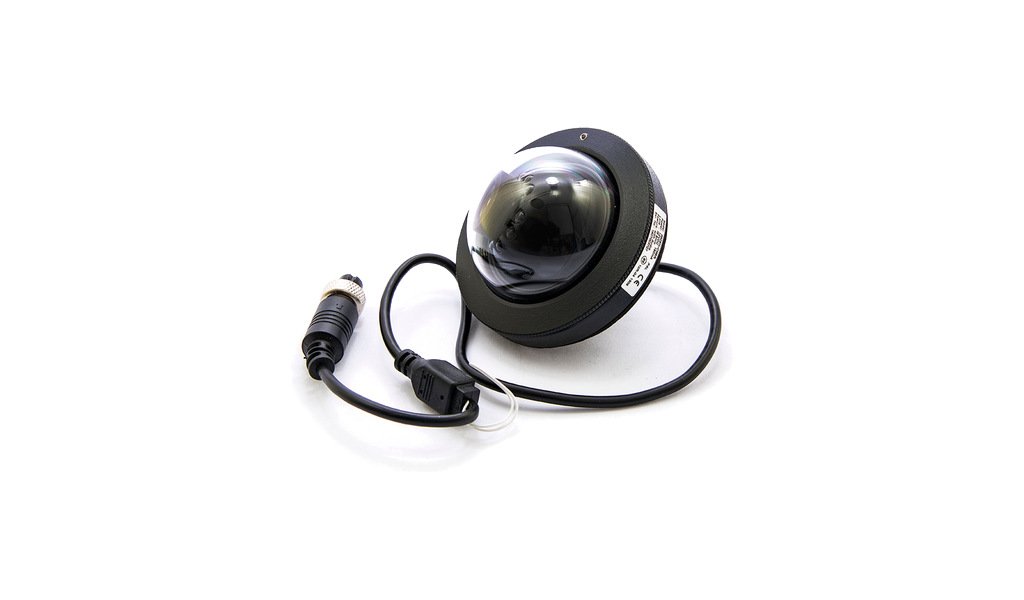

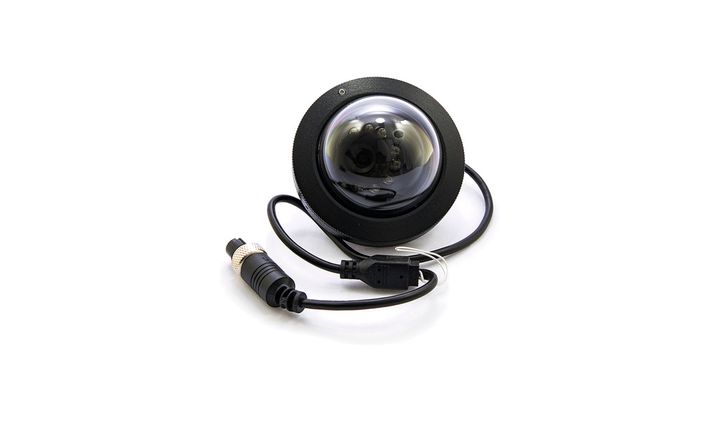

JPC-178 In-car Mini Dome Camera (20MM-28 / 2MP 1080P AHD / Metal Case IP67 / Includes 1 bracket)

Name: JPC-178 — JPC-178 In-car Mini Dome Camera (20MM-28 / 2MP 1080P AHD / Metal Case IP67 / Includes 1 bracket)
Brand: JFA-CAM

Get a Quote for JPC-178 Certificates & documents

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

Key features

Metal-cased micro dome: metal housing + transparent PC dome cover, anti-tamper, durable, not a plastic shell that will break at a touch
20mm small lens module, the whole machine is only ø77 × 60.3mm, net weight is 200g: it can be installed in the car inconspicuously, does not take up space, and does not block the line of sight

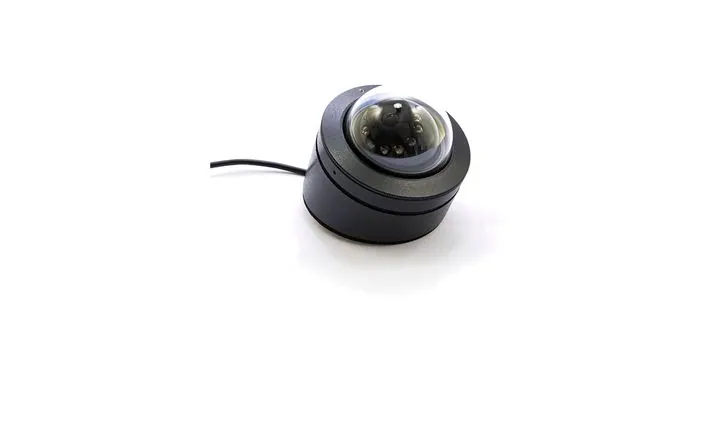

Hemispherical shape, can be installed on ceiling/wall, exposed/concealed (surface or flush mount)

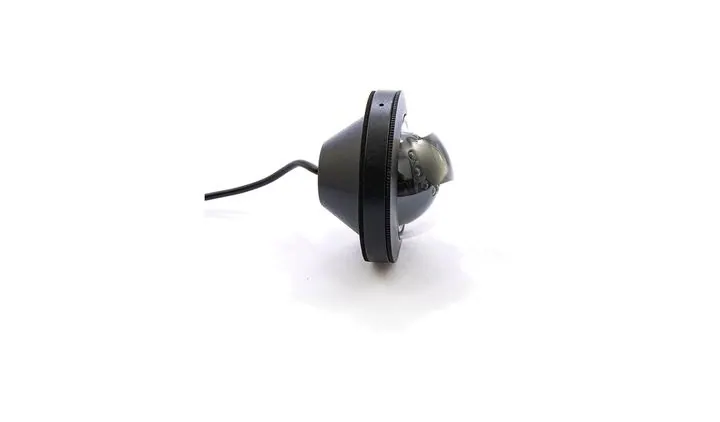

The direction of the lens can be adjusted by pressing the PC dome cover, and the hexagonal screw is locked so that it will not move after installation

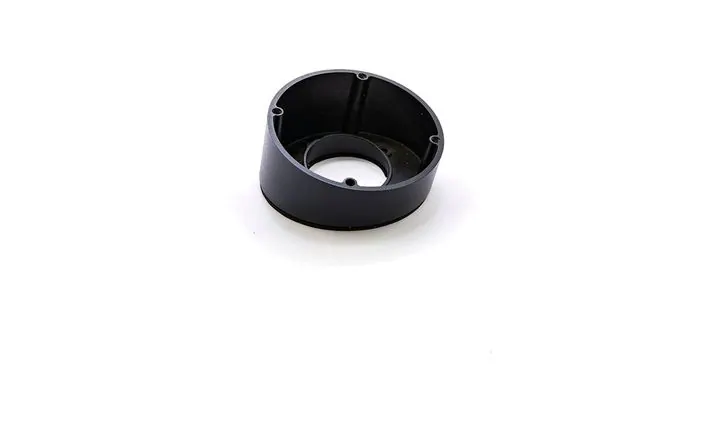

Standard configuration includes 1 mounting bracket + 4 mounting screws + hexagonal wrench + instruction manual, ready to install
2 million pixels HD, 1920(H) × 1080(V), AHD output
1/2.9" CMOS (manufacturer parameter sheet marked PS6210), progressive scan RGB CMOS
PAL/NTSC optional
3D digital noise reduction + wide dynamic processing: when the contrast between light and dark in the car is large (bright outside the car, dark inside the car), the picture is more balanced and has less noise
Automatic gain (AGC), automatic electronic shutter, automatic backlight compensation (BLC)
Minimum illumination 0.1 Lux / F1.2; video output 1Vp-p 75Ω
F2.8mm fixed focus lens, manual angle adjustment
This model does not have infrared lights or ICR: it is used in car scenes with light (daytime, car lights on, tunnels, and street lights at night)
Benefits: There will be no problem of infrared lights reflecting on the car window glass, and the picture will be clean and non-glaring
If you need night vision in total darkness (in the car with lights off, night bus), please choose in-car camera with infrared (such as JPC-174)
Optional audio (microphone): If you need in-car recording, you can specify an audio version
Optional mirror screen (Mirror)
Low power consumption: 12V DC±10%, maximum 85mA, long-term power supply will not damage the battery
Working temperature -30~+70°C, metal housing has good heat dissipation
4-pin aviation header (default), equipped with MDVR / monitor plug and play
Application: Truck/bus/bus/taxi/online car-hailing in-vehicle monitoring, driver monitoring, cabin monitoring, cargo hold/compartment monitoring

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the installation location: ceiling or wall mounting, surface mounting or concealed mounting
Confirm whether you need audio (microphone): This audio is optional and must be specified if you want to record
Confirm the screen mode: full image/mirror image (this mirror is optional)
Confirm output format: AHD 1080P, PAL/NTSC
Confirm connector type (4-pin aviation standard) and cable length (0.5 m tail standard; 1 m / 5 m / 10 m made to order).
Confirm whether there is light in the use environment: this model does not have infrared, total black environment please choose an in-car camera with infrared (such as JPC-174)
Confirm whether you need a wide dynamic range version: The manufacturer's information indicates that it supports Wide Dynamic Range. This model is quoted by default with no wide dynamic range (no WDR) configuration
Confirmed quantity: The quotation includes 1 bracket, additional brackets need to be specified separately
Default specifications: 2053 + 8536H solution / f2.8mm fixed focus / PAL system / without reversing auxiliary line (no park line); no wide dynamic range (WDR) function, if you need other angles or NTSC, please explain in advance
Confirm quantity, packaging and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (8–15V) and never reverse the polarity.
When installing the top cover, be sure to press the PC dome cover firmly with your hands to compact the o-ring, and then tighten the top cover - The manufacturer's instructions clearly state: Only in this way can IP67 waterproofing be guaranteed
After adjusting the angle of the ball head, be sure to tighten the hexagonal screw to avoid angle deviation after long-term vibration
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Wipe the PC ball cover with a soft cloth. Do not scratch it with a hard object to avoid scratches and affect the light transmission
The installation position should not block the driver's view and avoid the airbag deployment area
