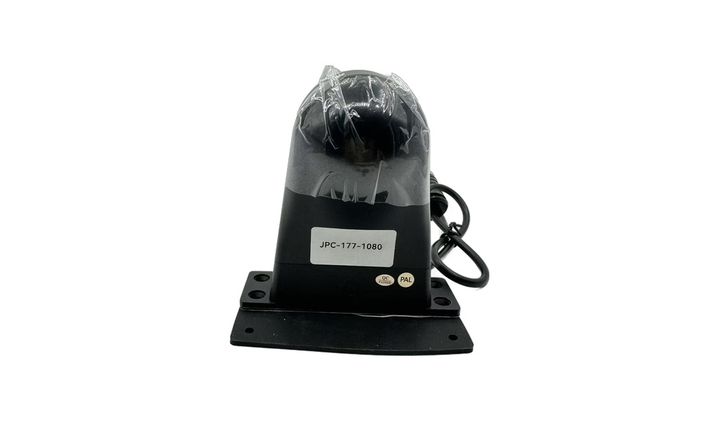

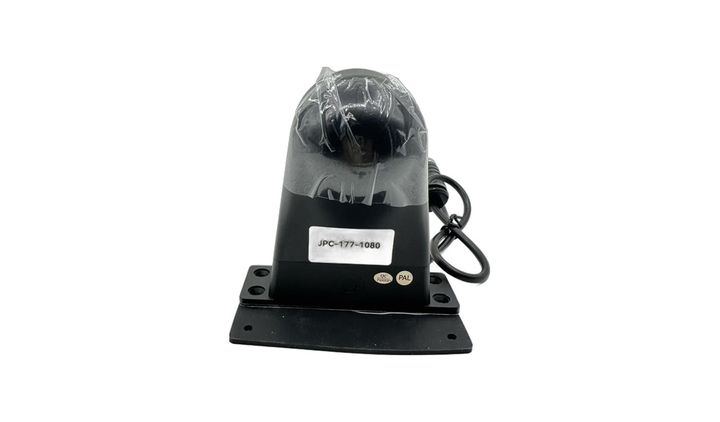

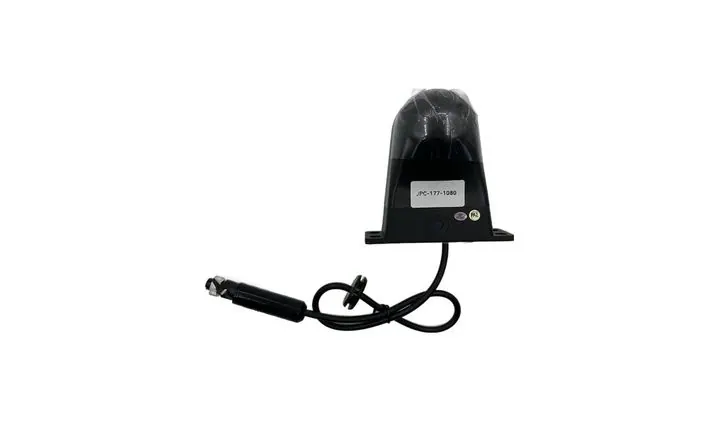

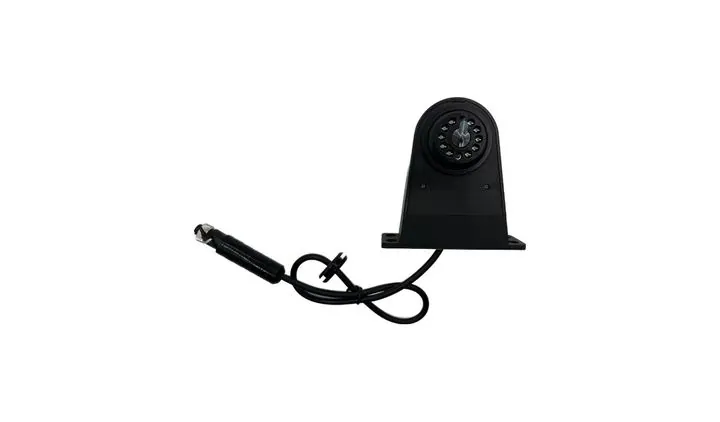

JPC-177 side-view camera (custom private model / plastic steel body + metal ball head + alloy base / 1080P AHD / IP68)

Request a Quote Email about JPC-177

Key features

Customer-developed tooling: The shape is the mold developed by the customer himself, not the common shell of the public mold on the market
The same shape cannot be found on the market, preventing copycat sales and price comparisons, suitable for private label and exclusive projects
Color, silk screen printing and packaging can be custom according to customer projects
The mold has been opened, and the follow-up order delivery and quality are stable
Plastic steel body (engineering plastic): light, non-rusting, non-conductive, long-term outdoor exposure to the sun and rain without aging and cracking
Metal camera ball: The ball head has good heat dissipation, is strong and resistant to impact; the lens angle is adjustable and will not move after being locked
Alloy base: sufficient strength and rigidity, installed on the side of the car body without loosening or deformation due to long-term vibration
Three-section split structure, easy assembly and later maintenance
1080P AHD output, 1920(H)×1080(V), horizontal resolution 2000TVL
Also available in 720P / CVBS version (1280×720, 1000TVL), with older monitors
2053 + 8536H solution, 1/2.7" CMOS (manufacturer parameter sheet marked CISTA C2053)
PAL/NTSC optional
Signal-to-noise ratio >70dB (48-52dB is common in the industry, this model is much higher, and the picture is cleaner)
Automatic white balance, automatic backlight compensation
Minimum illumination 0.01 Lux (F/No=1.6), pictures can be taken in low-light environments
Lens angle 60° ~ 170° Optional: wide angle to see the blind spot, narrow angle to see the distance
Side view/blind spot monitoring is generally recommended to be around 125°, and the specific angle is determined by the project
The angle consistency in the same batch is controlled by the manufacturer, and the pictures are unified when shipped in batches, and there will not be one viewing angle per machine
IP68 waterproof and dustproof: resistant to rain and high-pressure water gun cleaning
DC 12V power supply, operating current is only 60–90mA (very power-saving, does not increase the electrical load of the vehicle)
Working temperature -30~+70°C, storage temperature -40~+85°C
Optional 4-color reversing auxiliary line (OSD auxiliary line, turn on or off according to project needs)
4-pin aviation header (default), equipped with MDVR / monitor plug and play
Application: truck/trailer side blind area, bus, special-purpose vehicles, sanitation vehicle

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the lens angle: 60° ~ 170° optional, how many degrees to use for this project (side view blind spot is generally around 125°)
Confirm the output format: AHD 1080P or 720P / CVBS (to match the monitor / MDVR)
Confirm whether to turn on the reverse auxiliary line (4-color OSD auxiliary line, switchable)
Confirm the body color and silk screen printing (private models can be custom)
Confirm connector type (4-pin aviation standard) and cable length (0.5 m tail standard; 1 m / 5 m / 10 m made to order).
Confirm the installation position and fixing method (side of the car body/under the rearview mirror), and base screw holes according to the drawing
Confirm the voltage and power location (DC12V, 8-15V)
Default specifications: 2053 + 8536H solution / 125° field of view / PAL system / without reversing auxiliary line (no park line); no wide dynamic range (WDR) function, if you need other angles or NTSC, please explain in advance
Confirm whether a test report needs to be provided with the goods (IP68 waterproof, etc.)
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (8–15V) and never reverse the polarity.
Adjust the angle of the ball head and lock it to avoid long-term vibration and movement
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
IP68 waterproof, but when washing the car, avoid direct high-pressure water gun directed at the lens and connector for a long time
If the ball head lens is dirty, wipe it with a soft cloth. Do not scratch it with a hard object
The side mounting position avoids the exhaust pipe, fuel tank opening and tire mud-slinging area
