JPC-172

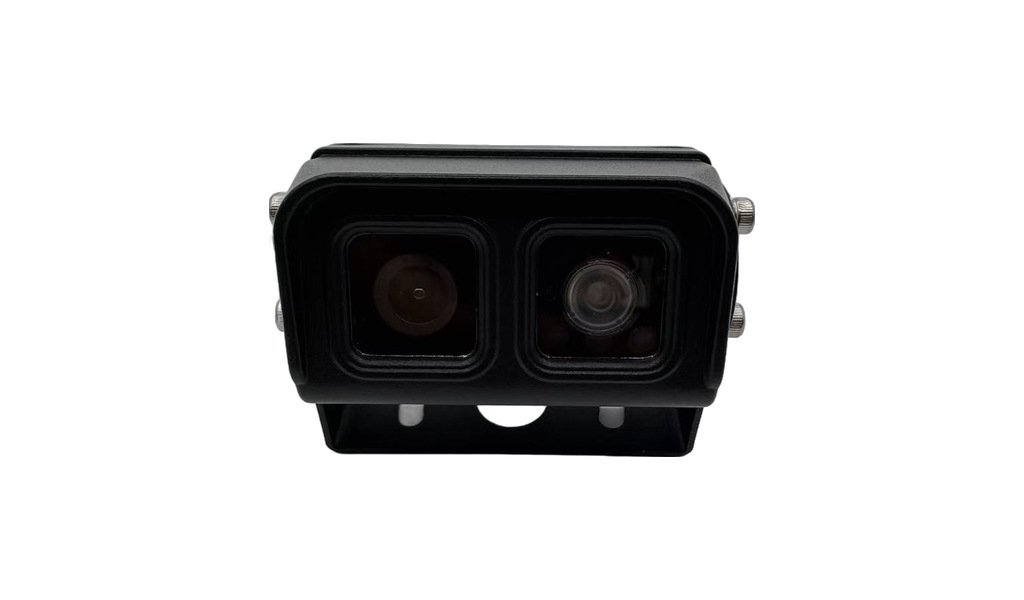

JPC-172 MILETV dual-chamber rear-view camera (AHD 1080P / 110 degree / heater optional / IP rating by variant)

  • Dual-chamber design: The lens and LED light panel are divided into two independent cavities, physically separated
  • IR LED will not be refracted or reflected on the lens glass at night, and the picture will not have spots or whitening. You can see clearly when reversing at night
  • The light board and lens are separated into separate compartments, and the heat sources are separated and do not affect each other. The picture is more stable for long-term work
  • During the day, strong light will not penetrate into the lens from the lamp cavity, and the picture will be cleaner when backlit

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPC-172 selling points

Separate chambers, a wide rear view and a clear service interface.

These exact-model diagrams explain the dual-chamber construction, the confirmed 110-degree rear view and the standard 4-pin connection path. The two source clips below come from the exact JPC-172 supplier folder; the second is the retained road-test video.

JPC-172 technical diagram showing the LED chamber physically separated from the lens and image-sensor chamber
01. Dual-chamber construction

Dual-chamber design: The lens and LED light panel are divided into two independent cavities, physically separated

JPC-172 technical diagram showing the confirmed 110-degree horizontal rear-view coverage
02. 110-degree rear view

2.8mm lens, 110° viewing angle, view the blind spot at the rear of the car in one screen

JPC-172 technical diagram showing the camera, 4-pin aviation connector and monitor or MDVR signal path
03. Connection path

Standard 4-pin aviation header; optional CAN-bus output to connect to the vehicle network

01

Exact-model source clip

Silent excerpt from the exact JPC-172 supplier folder.

02

Road-test monitor view

Silent excerpt from the retained road-test video in the exact JPC-172 supplier folder.

JPC-172 product features

  • Dual-chamber design: The lens and LED light panel are divided into two independent cavities, physically separated
  • IR LED will not be refracted or reflected on the lens glass at night, and the picture will not have spots or whitening. You can see clearly when reversing at night
  • The light board and lens are separated into separate compartments, and the heat sources are separated and do not affect each other. The picture is more stable for long-term work
  • During the day, strong light will not penetrate into the lens from the lamp cavity, and the picture will be cleaner when backlit
  • The divided structure also allows better heat dissipation of the housing and extends the life of the LED and sensor
  • Sealed metal construction is designed for muddy and washdown-duty use; the exact IP69 or IP69K rating is confirmed by the shipped variant and test report
  • Zinc-nickel coating: more corrosion-resistant than ordinary galvanizing, and will not rust in salt spray, muddy water, and snowmelt environments
  • Metal body + anti-tamper screws (anti-tamper): resistant to smashing and collision, can be installed outside without fear of being dismantled
  • Alloy connector: The connector is also a metal part, durable in plugging and unplugging, and not easy to oxidize
  • Anti-seismic design, suitable for special-purpose vehicles, trailers and heavy trucks subject to long-term bumpy conditions
  • Infrared night vision supports low-light reversing; LED count and illumination distance are confirmed by the shipped configuration
  • Minimum illumination 0 Lux (infrared on) - you can see the rear of the car clearly even in a completely dark environment
  • Automatic IR-CUT: Automatically convert to color during the day and black and white at night, no need to switch manually
  • Optional built-in heating module: defrost and defogging under low temperature conditions, the lens will not fog or freeze
  • Suitable for low-temperature scenes such as northern areas, cold areas, and cold chains; ACC preheats before driving after powering on, resulting in a clearer picture
  • 1080P AHD high-definition output (1920x1080), clear picture, more accurate reversing judgment
  • 2.8mm lens, 110° viewing angle, view the blind spot at the rear of the car in one screen
  • NTSC/PAL optional
  • Video output 1.0Vp-p 75Ω, directly connected to vehicle monitor/MDVR
  • Standard 4-pin aviation header; optional CAN-bus output to connect to the vehicle network
  • DC 12V power supply, low power consumption
  • Metal housing/connectors are available in optional colors and silk-screen printing, and packaging can be custom according to the project

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm the output mode: standard AHD video, or CAN-bus version is required
  • Confirm the protection level: the existing information is written as IP69K and IP69 respectively, whichever is the actual version shipped from the factory
  • Confirm the size and installation method: different information has inconsistent descriptions of size, please refer to the factory drawings
  • Confirm the connector type (default 4-pin aviation connector, alloy connector optional) and wire harness length; whether double shielded tail wire is required (anti-electromagnetic interference of the vehicle)
  • Confirm whether tamper-resistant screws are required and whether the test report for the supplied ingress rating must be included
  • Confirm voltage: Default DC12V (8-15V), whether 24V models need to be equipped with a step-down voltage
  • Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
  • Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

This list covers the main points. The full ordering sheet for this model is available on request.
