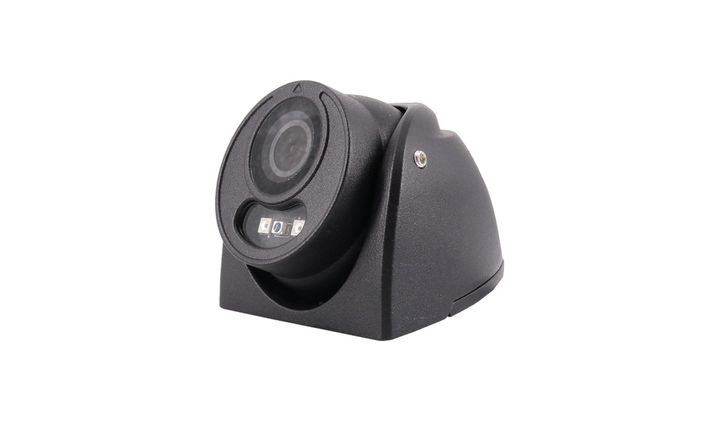

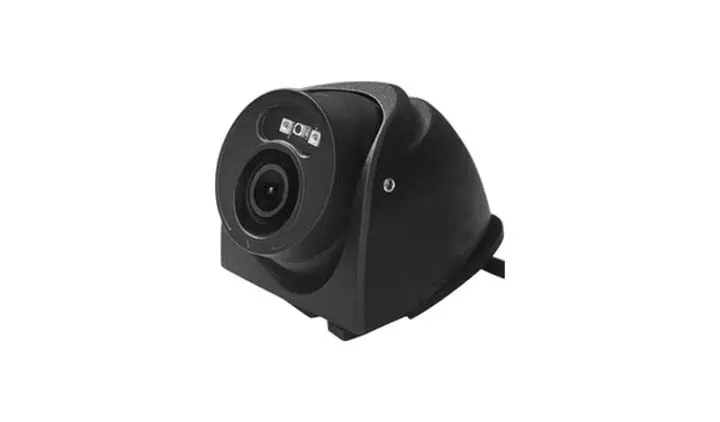

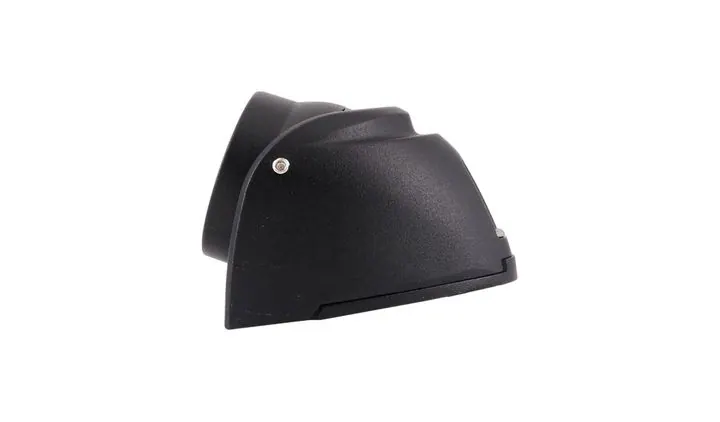

JPC-171 truck side view camera (metal housing / Aksu aviation grade powder coating / lens light compartment / dot

Name: JPC-171 — JPC-171 truck side view camera (metal housing / Aksu aviation grade powder coating / lens light compartment / dot
Brand: JFA-CAM

JPC-171 truck side view camera (metal housing / Aksu aviation grade powder coating / lens light compartment / dot matrix LED / 1080P AHD)

Request a Quote Email about JPC-171

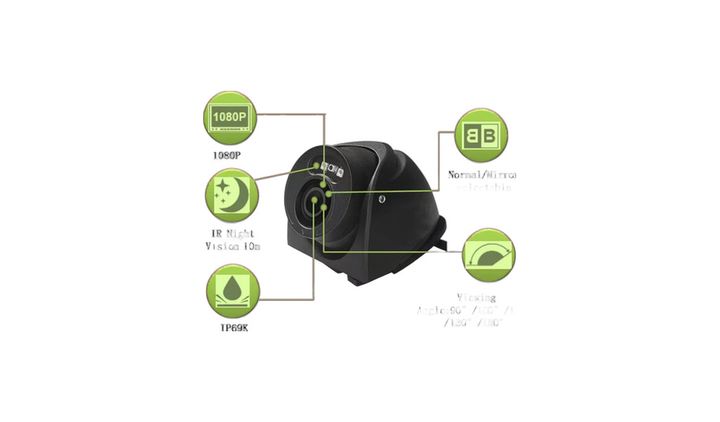

Key features

AkzoNobel powder spraying surface treatment, aviation-grade technology: spraying is durable, corrosion-resistant, and salt spray-resistant. It will not peel off or rust when used at the seaside and construction sites
The structure is waterproof: it is not filled with glue, but a precision sealed structure + glass structure is waterproof, which makes the waterproofing more reliable and the heat dissipation better
Lens and LED compartment (dual cavity) design: the lens and light panel are physically separated, IR LED will not be refracted to the glass at night, and the picture will be free of reflections and light spots
Dot matrix LED light: uniform light emission, transparent night vision picture, no "flashlight effect" of ordinary lamp beads (bright in the middle, dark around)
Pure metal lens barrel: not a plastic lens barrel, optically stable and non-focusing under extreme vibration and temperature changes
Pendulum-type IR-CUT: accurate color reproduction during the day, high contrast at night, and easy switching between day and night
1080P AHD coaxial high-definition output, 1920(H)x1080(V)
Sony IMX323 sensor + 2053 + 8536H solution, good low-light performance and stable picture
NTSC / PAL optional; video output 1.0Vp-p 75Ω
Signal-to-noise ratio ≥48dB; automatic white balance, automatic gain, automatic electronic shutter
Minimum illumination: 0.1 Lux (daytime), 0 Lux (infrared on)
SMD dot matrix IR LED, night vision distance 10-15 m
8mm lens, 120° horizontal viewing angle
The pitch of the bracket is adjustable from 0-60°, and it can be installed on the side of the car body to find the angle as needed
Truck/trailer/bus side blind spot monitoring: clearly see the side and right blind spots of the vehicle when turning right, changing lanes, or stopping at a stop
Suitable for side mounting on the side of the car body, cab side, or compartment side panel
Similar products are also commonly used in special-purpose vehicles, sanitation vehicles, buses, and RVs
Metal mini body, 64×68×59mm, net weight 200g, small size, easy to wire
12V DC±10%, low operating current (about 210mA, <500mA in separate specifications), does not increase the electrical load of the vehicle
4-core aviation connector with monitor/MDVR plug and play

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the resolution/format: AHD 1080P/720P, PAL/NTSC, and match the monitor/MDVR
Confirm the protection level and operating temperature: the existing data is written as IP68 / IP69 / IP69K, -20~+70 / -25~+70 / -40~+60, whichever is the actual version shipped from the factory
Confirm the lens angle: The existing information states 120° and 110° respectively. This model is quoted at 120° (2.8mm). Special angles must be mentioned in advance
Confirm connector type (4-pin aviation standard, RCA optional) and cable length (0.5 m tail standard; 1 m / 5 m / 10 m made to order).
Confirm the installation method and bracket: side mounting / ceiling / wall, whether an adjustable angle bracket is required (this model supports pitch 0-60°)
Confirm whether you need the dot matrix LED version/sub-bin version (different versions have different prices)
Confirm the IR LED version: 650nm and 850nm (SMD) appear in the data respectively, confirm according to the actual factory configuration
Default specification: 2053 + 8536H platform, 120° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether you need a waterproof cover or extension cord
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Confirm the voltage (DC12V±10%) before wiring. Do not connect the positive and negative poles reversely
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
After adjusting the angle, tighten the screw; the side mounting position avoids the exhaust pipe and tire mud-slinging area
The waterproof structure does not mean that it can withstand long-term direct flushing with high-pressure water guns. Please pay attention when washing the car
The advantage of this model is the divided compartment structure. When disassembling and assembling, be careful not to let dust get between the glass and the light panel
