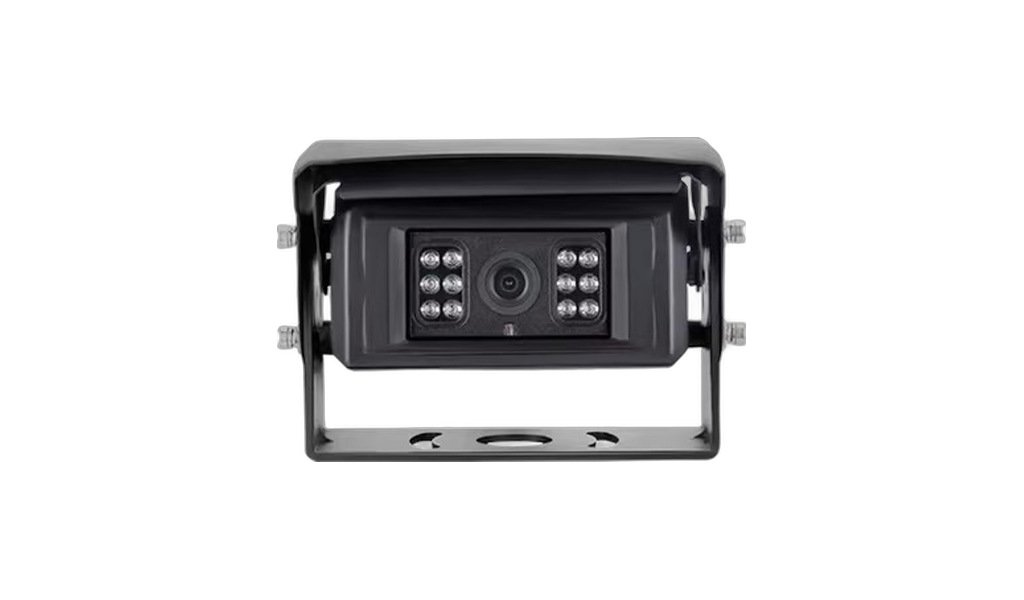

JPC-168 automatic shutter rear view camera (luview JY-678 / 2 million pixels / IP69K / dedicated for dusty

Name: JPC-168 — JPC-168 automatic shutter rear view camera (luview JY-678 / 2 million pixels / IP69K / dedicated for dusty
Brand: JFA-CAM

JPC-168 automatic shutter rear view camera (luview JY-678 / 2 million pixels / IP69K / dedicated for dusty environments)

Get a Quote for JPC-168 Certificates & documents

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

Key features

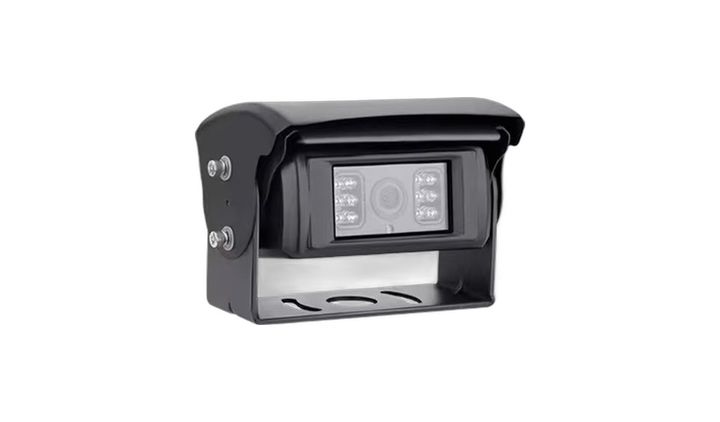

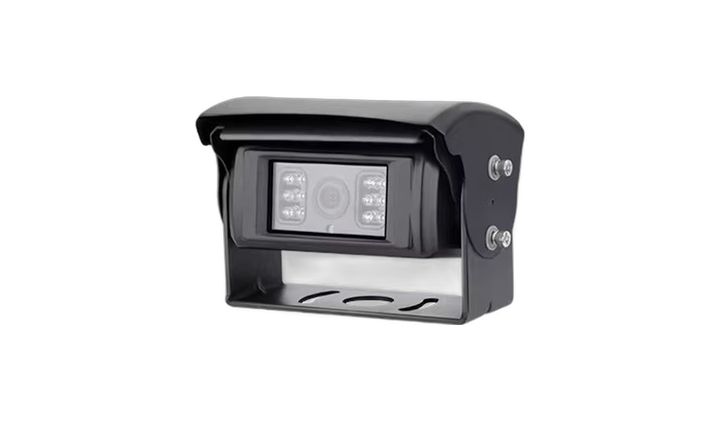

Normally, the protective cover is closed and the camera does not work: when the vehicle is driving forward, the movable metal protective cover covers the lens, so that the lens does not get dust, mud or rain
It only works when reversing: the protective cover opens and the camera takes pictures when reversing, and it automatically closes after reversing
The lens is always clean: the ordinary rearview camera is exposed to the outside for a long time, and it becomes covered with dust after a few days of running, and the picture is blurry when reversing; this one is usually covered, and when you need to see it, you can open it and the picture will be clear
The lens and coating have a long life: no long-term exposure to the sun, no dust or water, and no need to wipe the lens frequently
The mechanical protective cover itself is a physical protection: anti-flying rocks, anti-scratch, anti-man-made damage

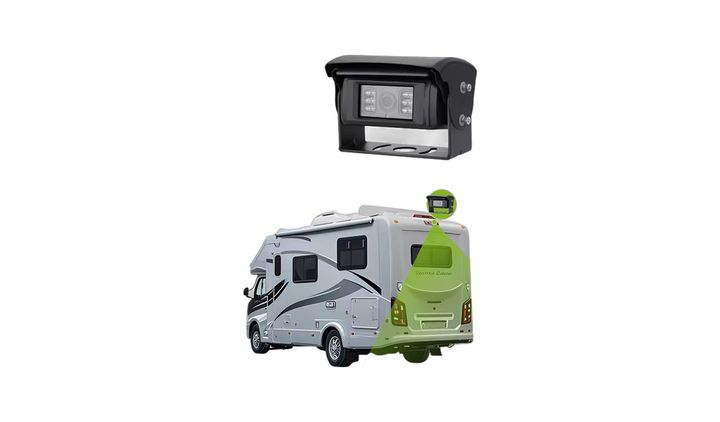

Specialized in high dust environments: cement tank trucks (mixers), bulk cement/powder transport trucks, mining trucks, construction site dump trucks, garbage trucks, farmland operation trucks
2 million pixels 1080P: 1/2.9" CMOS (GC2053) sensor, 1920(H)x1080(V)
NTSC/PAL optional
8mm lens, 120° viewing angle, view the blind spot at the rear of the car in one screen
Automatic white balance / automatic gain / automatic backlight compensation / automatic electronic shutter, Gamma 0.45
Signal-to-noise ratio ≥48dB, video output 1.0Vp-p 75Ω, directly connected to monitor/MDVR
Supports mirror switching, rear view/front view can be set on demand
12 infrared lights, night vision distance 13m, day and night monitoring
Minimum illumination: 0.1 Lux (daytime), 0 Lux (infrared on) - you can see the rear of the car clearly even in total darkness
Microphone optional: Customers who need simultaneous recording can choose a version with a microphone
IP69K waterproof and dustproof: can withstand high-pressure water gun cleaning and muddy water environments
Full metal housing, available in white/black/silver colors
Wide voltage DC 12-32V: 12V cars and 24V trucks are common, no need to add a step-down module
Low power consumption: 65±5mA during the day, 205±5mA at night
Working temperature -20~+70°C, maximum humidity 95%; storage temperature -30~+80°C
Accessories: screw bag + instruction manual; extension cable 5m / 10m / 15m optional
Net weight 450g, color box 13×11×8.5cm, 40 pcs/carton

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the shutter triggering method and wiring definition: whether the protective cover is triggered by the reversing signal (reversing light takes power) or controlled by normal power + signal, confirm how the wiring harness is connected
Confirm the model voltage and power supply location: this wide voltage DC12-32V, 12V / 24V can be used
Confirm format and resolution: NTSC / PAL, 2 million pixels 1080P
Confirm whether you need to bring a microphone (audio optional)
Confirmation screen mode: supports mirror image switching, the default is to confirm whether it is a mirror image or a positive image according to customer usage habits
Confirm case color (white/black/silver)

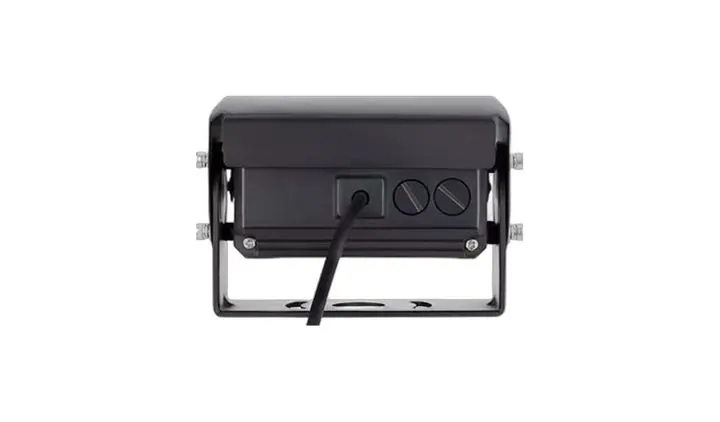

Confirm the connector type (default 4-pin aviation connector) and cable length (extension cable 5m / 10m / 15m optional)
Default specification: 2053 + 8536H platform, 120° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm the minimum order quantity and delivery date (the minimum order is MOQ 20 after the sample is approved), and whether the quotation includes tax and freight
Confirm the packaging method (screw bag + instruction manual) and whether silk screen is required

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Confirm the voltage (DC12-32V) before wiring. Do not connect the positive and negative poles reversely

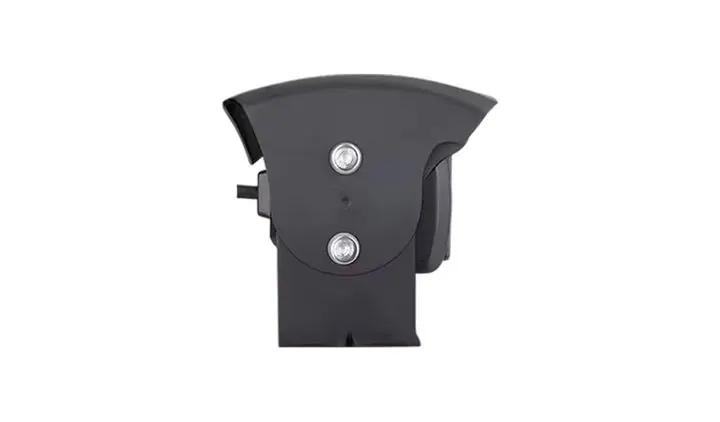

The protective cover is a movable mechanical part: when installing, leave space for the cover to open and close, and do not let it be blocked by the bracket, spare tire or car body
In a dusty environment, regularly check whether the protective cover rotates smoothly, and do not let mud and sand get stuck between the cover and the casing
When washing the car/washing with a high-pressure water gun, avoid rushing directly into the shutter gaps and joints at fixed points for a long time
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
In low-temperature and icy areas, if the cover is frozen, melt the ice before use. Do not forcefully break the protective cover
