JPC-166 304 stainless steel explosion-proof vehicle camera (tank truck / dangerous goods transportation / 1080P AHD /

Name: JPC-166 304 — JPC-166 304 stainless steel explosion-proof vehicle camera (tank truck / dangerous goods transportation / 1080P AHD /
Brand: JFA-CAM

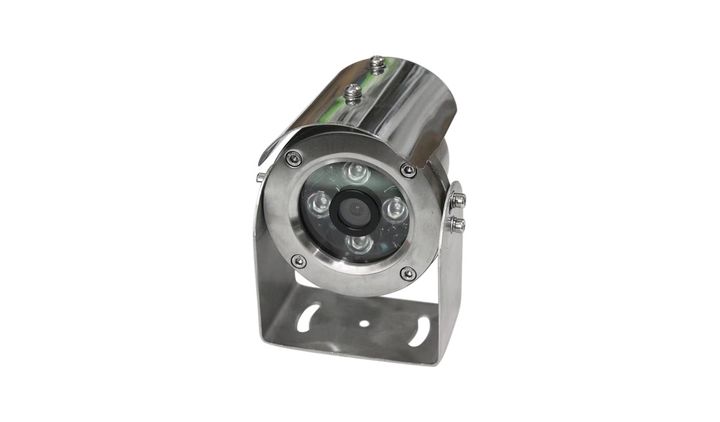

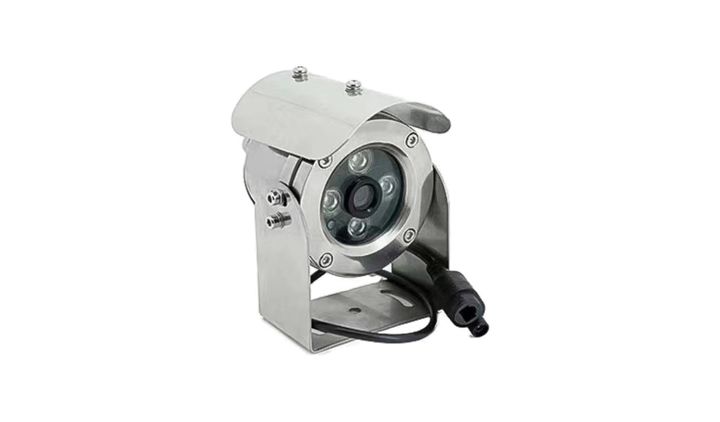

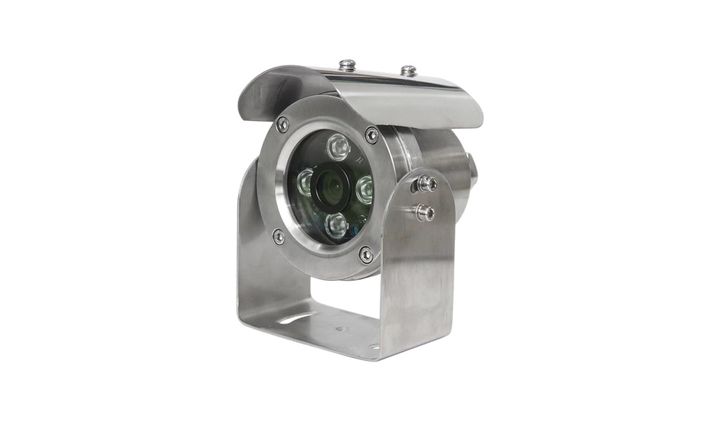

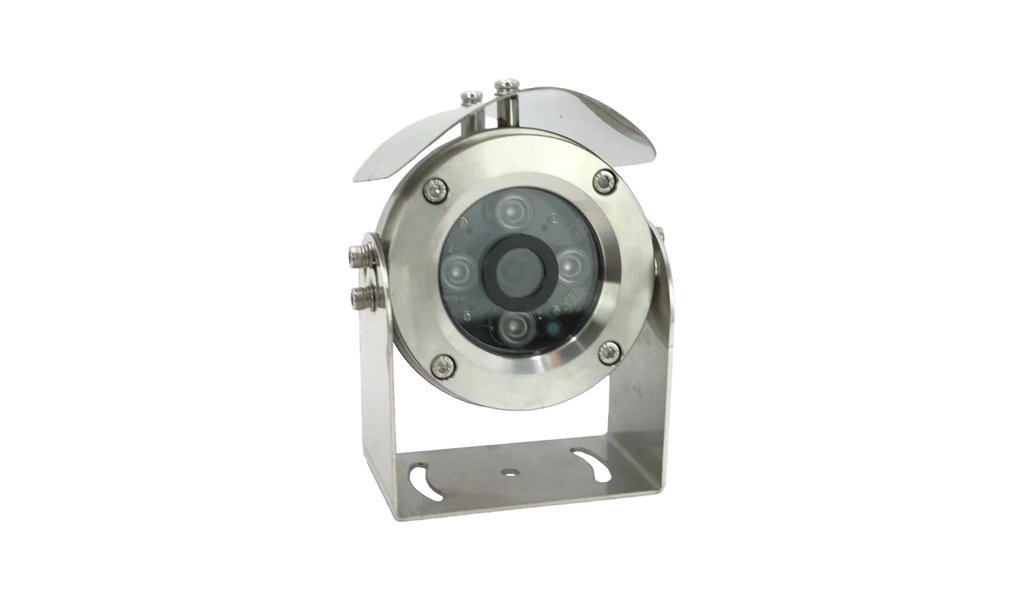

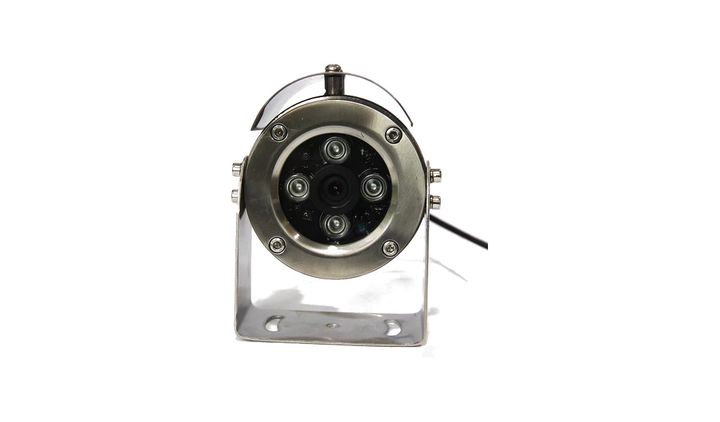

JPC-166 304 stainless steel explosion-proof vehicle camera (tank truck / dangerous goods transportation / 1080P AHD / IP69K)

Request a Quote Email about JPC-166 304

Key features

Explosion-proof vehicle camera designed for hazardous environments - made for oil tankers and dangerous-goods vehicles
304 stainless steel overall shell: acid and alkali resistance, salt spray resistance, corrosion resistance, impact resistance, long-term outdoor wind and rain without rusting
Full metal housing + anti-disassembly structure: not easy to be pried or dismantled, and can be installed safely in a tank or at the rear of a car
Specially designed for high-risk scenarios such as oil tank trucks, chemical trucks, dangerous goods transport trucks, oil depot/gas station operation areas, construction machinery, etc
Large and thick casing (113 x 140 mm), the casing itself is a shield
The surface treatment is weather-resistant and can be used for a long time in seaside, chemical industry areas and tank washing operating environments
1080P AHD high-definition output, 1920(H)x1080(V), the picture is clear and delicate, and moving objects are not blurry
2053 + 8536H solution, 1/2.9" CMOS sensor; optional 720P 100W / 1080P 200W
1920(H)x1080(V)@30fps NTSC / @25fps PAL
Adaptive digital noise reduction (DNR), less noise in dark areas
Support UTC coaxial control, menu can be adjusted on the monitor
Video output 1.0Vp-p 75Ω, directly connected to monitor/MDVR, no converter required
4 650nm infrared lights, night vision distance 10 m, automatic IR-Cut, no color cast during the day
Minimum illumination: 0.1Lux (daytime), 0 Lux (infrared on) - you can see the rear of the car clearly even in total darkness
110° wide angle + 2.8mm lens, view the rear and side blind areas of the car on one screen
IP69K waterproof and dustproof: resistant to high-pressure water gun washing, can withstand washing tanks and cars
Vibration resistance 4.5G, suitable for long-term bumpy transportation conditions
Working temperature -20~+70°C, storage temperature -30~+80°C
DC 12V (8-15V), current <300mA, low power consumption, does not increase the electrical load of the vehicle
Standard 4-pin aviation header (RCA optional): 1 red 12V+ / 2 black 12V- / 4 yellow video signal, docking MDVR plug and play
Line length, connectors, silk screen printing and packaging can be custom according to the project

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

There is no original datasheet on file for this model, so resolution, angle, voltage and IP rating are subject to factory confirmation. Request the datasheet before ordering.
Confirm explosion-proof requirements: Does the customer want an explosion-proof certificate/test report to be included with the goods? According to what standards? Does a scan of the certificate need to be included?
Confirm the lens angle: default 110° (2.8mm lens)
Confirm connector type (4-pin aviation standard, RCA optional) and cable length (0.5 m tail standard; 1 m / 5 m / 10 m made to order).
Confirm the installation location and fixing method (vehicle rear/tank/vehicle side) and whether anti-tamper screws are required
Confirm whether you need the automatic heating/defogging version (in low-temperature areas, refer to JPC-173 of the same series)
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

This list covers the main points. The full ordering sheet for this model is available on request.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (8–15V) and never reverse the polarity.
Installation, wiring and wiring locations on dangerous goods vehicles must comply with the safety regulations of the vehicle manufacturer/transportation company and avoid hazardous areas
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
IP69K is an anti-spray/water-immersion level, but when washing tanks or cars, avoid directing high-pressure water guns directly at the lens and connectors for a long time
Although the stainless steel shell is corrosion-resistant, it is recommended to rinse the surface with clean water regularly after use in seaside/chemical industry areas to reduce chemical residues
After adjusting the angle, tighten the screws. Do not dismantle the anti-tamper structure without permission
Wipe the lens and infrared lampshade regularly. Dust and oil will affect the nighttime picture
