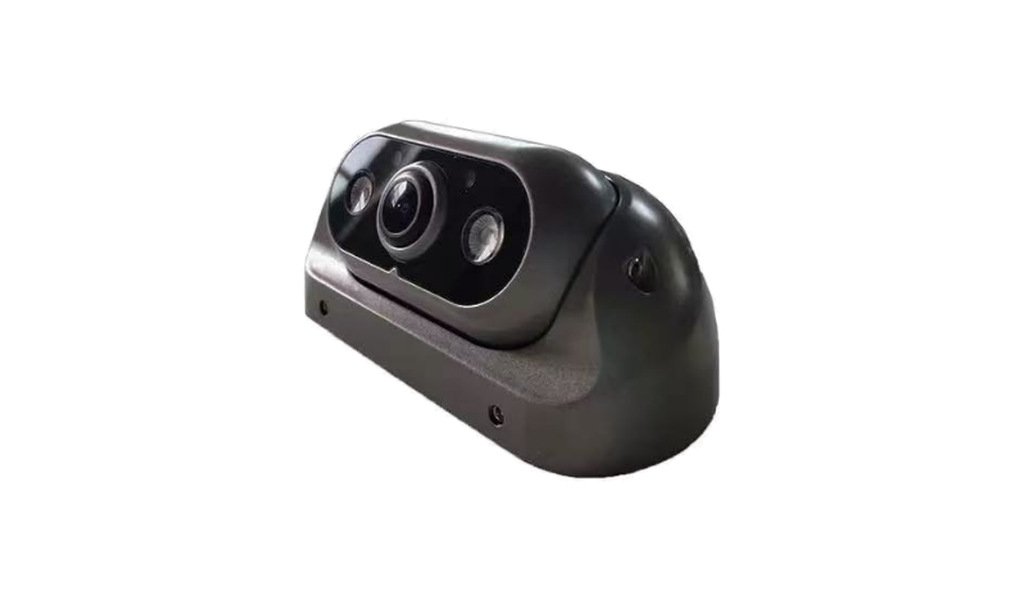

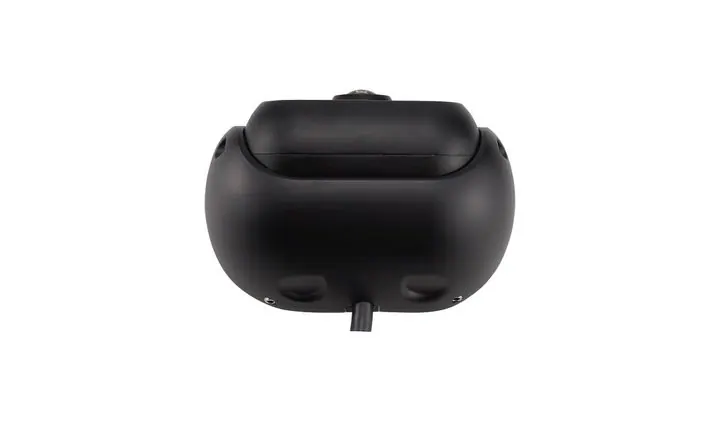

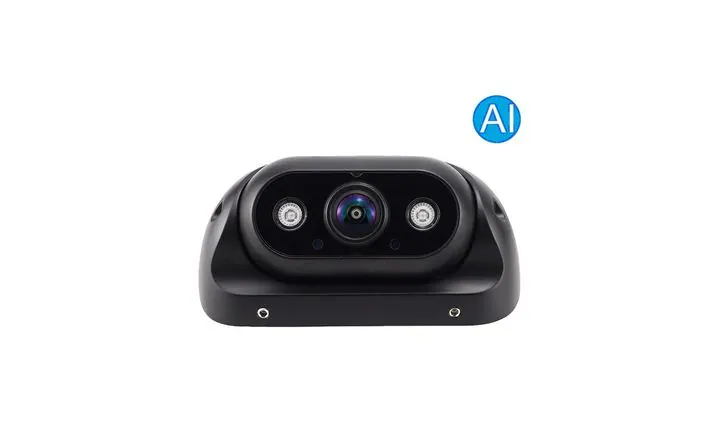

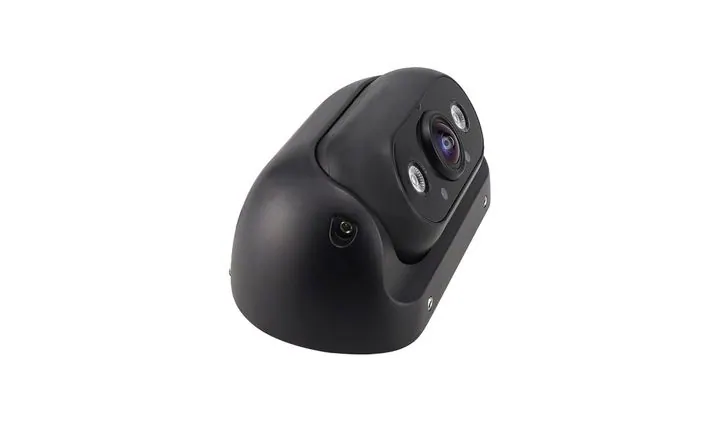

Main image and detail shots of the JPC-164.
JPC-164 new housing camera (Andrew model)
Key features
- New-design housing camera, compact cube shape with metal bracket
- Clean appearance, suitable for OEM projects with custom branding

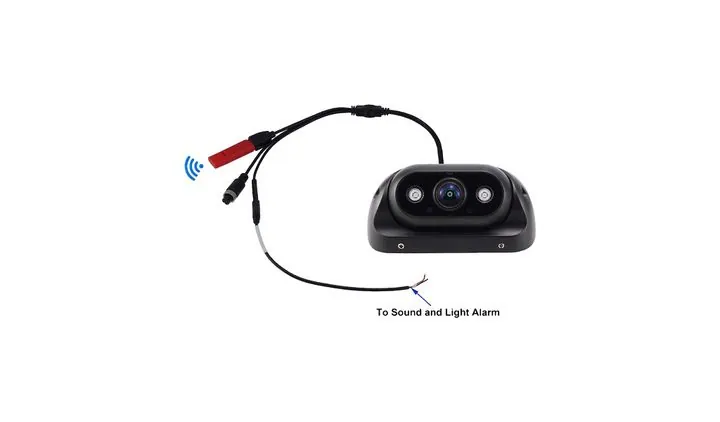

- 4-pin aviation cable, standard 0.5 m pigtail
- AHD 720P / 1080P output options - confirm with the factory
- For rear view, side view and cabin monitoring
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
- Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
- Confirm cable length. 0.5 m tail is standard and made to order.
- Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
- Confirm whether a waterproof boot is required.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
- Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
- Tighten the connector and fit the waterproof boot to keep water out.
- Tighten the screws once the angle is set.
- The IP rating is subject to factory confirmation; when washing, do not hold a pressure washer on the lens or connector.
