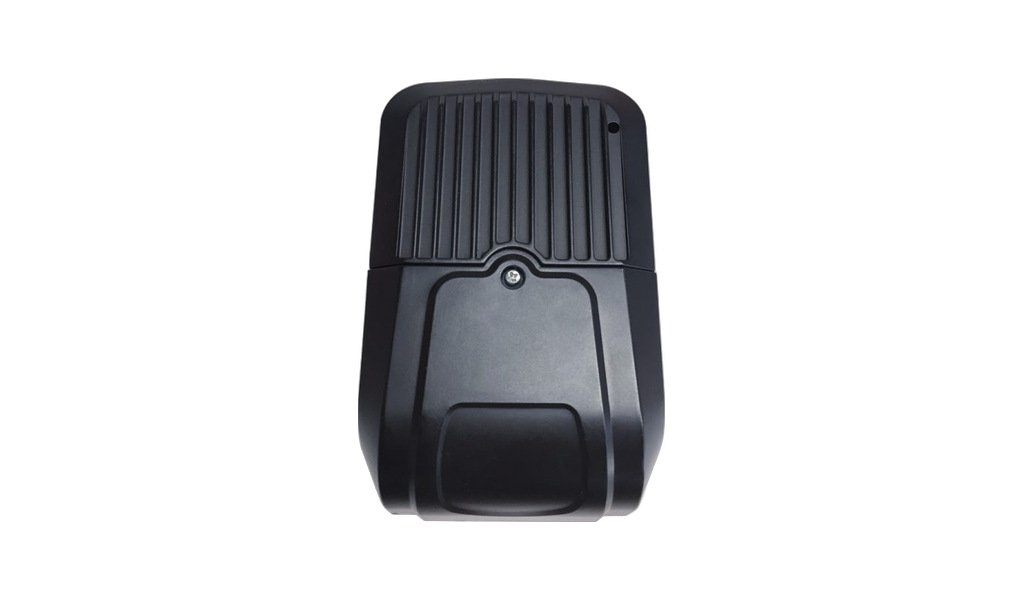

JPC-158 front-view IPC camera (AHD 1080P / IP69K / multi-lens optional)

Key features

Front view camera with IPC / AHD output, 1080P 1920(H) x 1080(V) (720P version also available)
M12 lens mount with 2.8 mm / 4 mm / 8 mm lens options - choose the coverage per installation
IP69K waterproof, DC 12V input, consumption < 2.5W (< 3.5W for some versions)

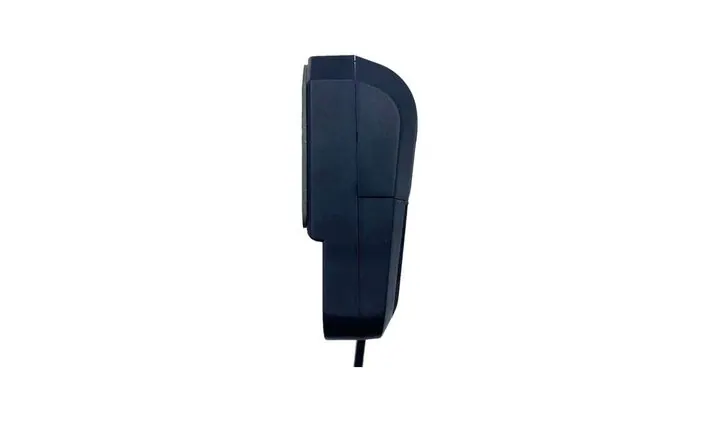

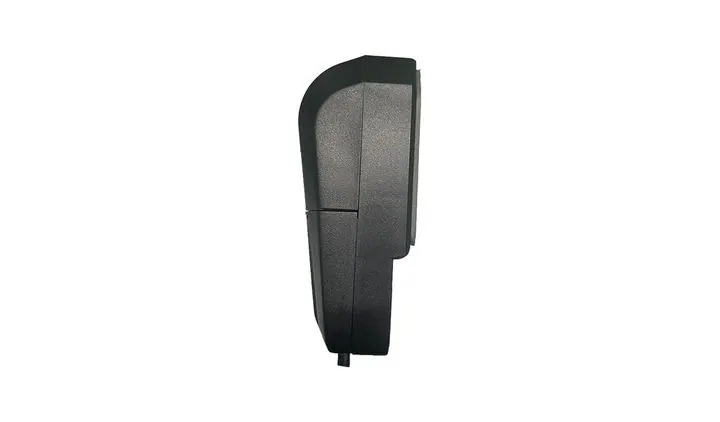

Compact body (106 x 57 mm / 84 x 46 mm depending on version)

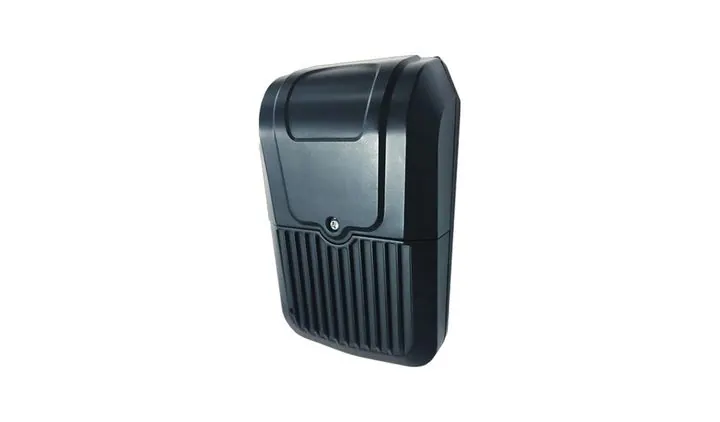

Metal housing with bracket mounting for trucks, buses and commercial vehicles
Suitable for front view, blind spot and MDVR / IPC system integration

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.

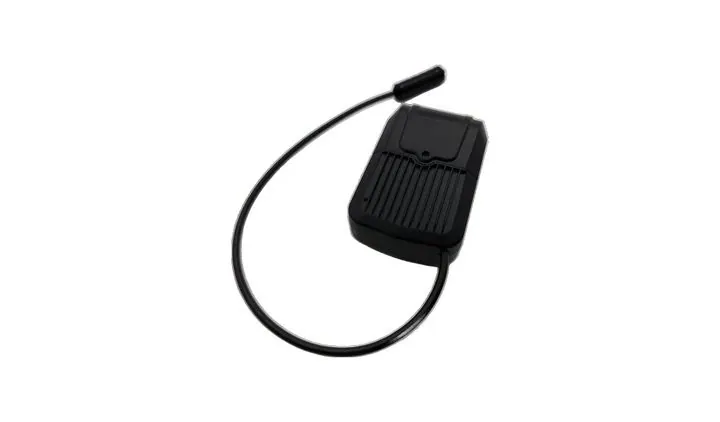

Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm the 1080P or 720P version.
Confirm the lens focal length (2.8mm / 4mm / 8mm) and whether it has IPC output
Confirm if audio channel (white audio signal No. 3) is required

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
