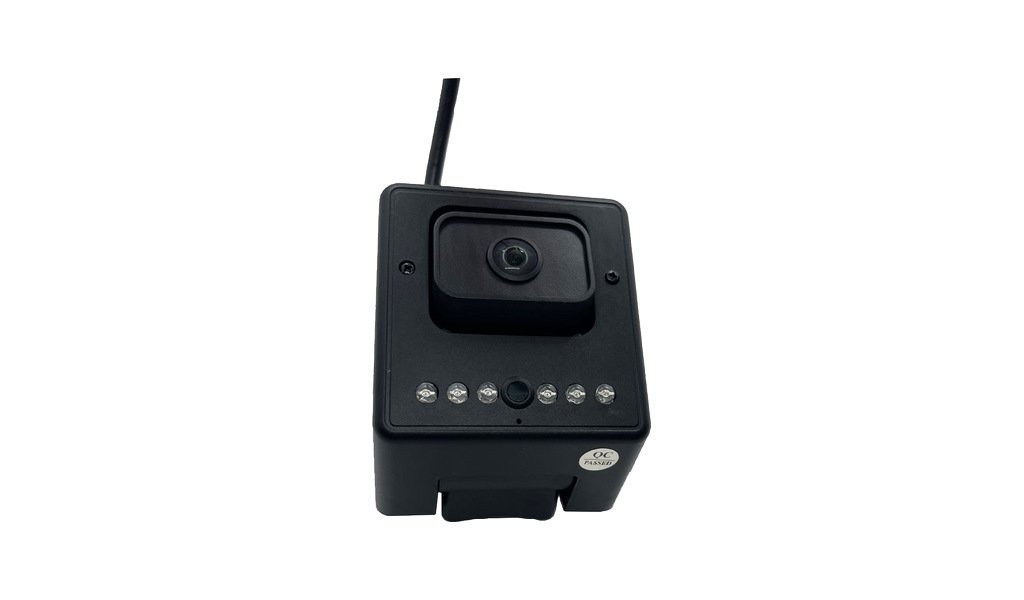

JPC-149 dual-lens (double-sided) car camera - simultaneous recording of two channels outside the car + inside the

Name: JPC-149 — JPC-149 dual-lens (double-sided) car camera - simultaneous recording of two channels outside the car + inside the
Brand: JFA-CAM

JPC-149 dual-lens (double-sided) car camera - simultaneous recording of two channels outside the car + inside the car, optional with audio, docking with MDVR

Get a Quote for JPC-149 Certificates & documents

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

Key features

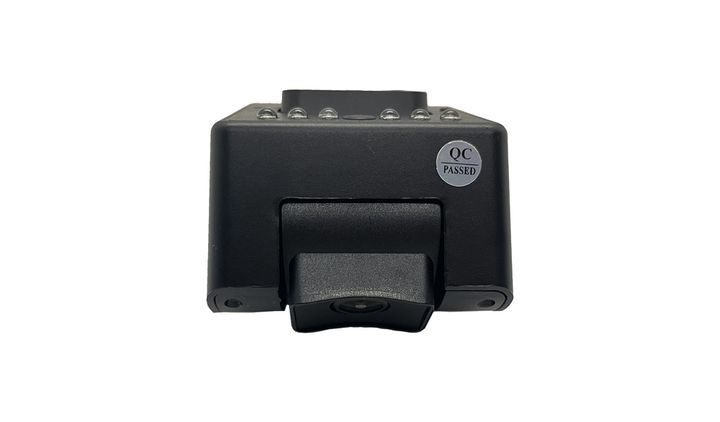

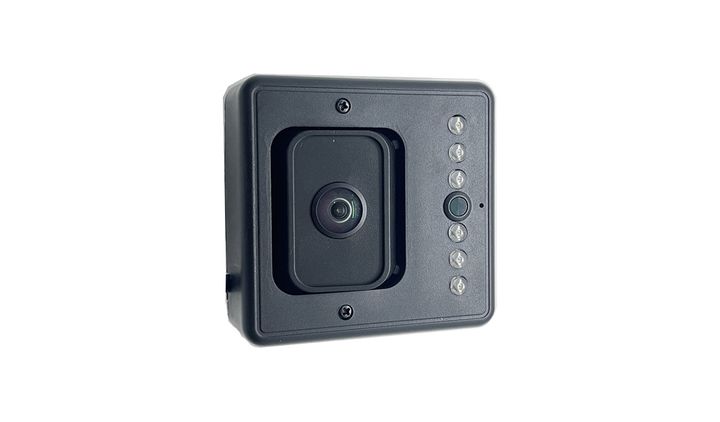

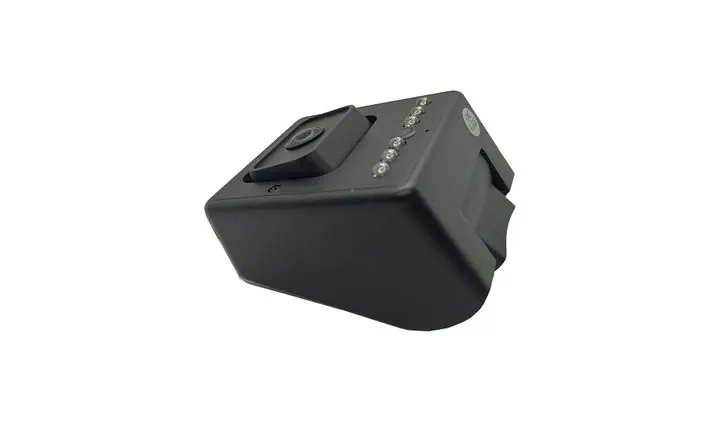

Dual-face camera: two lenses in one compact body - one looks forward / outside the vehicle, the other watches the cab inside
Simultaneously record outside and inside the car: one screen to see the road conditions, the other screen to see the driver and passengers, connect to MDVR to record both simultaneously, and you can compare them afterwards
One installation position solves two monitoring points: no need to install two cameras, no need to drill two holes, and one less line of wiring, saving time and wires during modification
The dual lenses are equipped with wide-angle lenses, which can see far away and cover the inside of the car. The driver and passengers can enter the picture at the same time
Ready to use after installation, does not block the driver's view, and has a compact and inconspicuous appearance
Suitable for taxi/online ride-hailing/bus/truck/SUV in-car monitoring, as well as fleet and MDVR system matching
AHD high definition output, 720P / 960P / 1080P optional, PAL / NTSC
Infrared night vision, minimum illumination 0 Lux (IR ON) - you can see clearly inside and outside the car in total darkness
When the IR is turned on, no visible red light is exposed on the glass, which is not dazzling or interferes with the driver's vision, making driving safer
The picture is clean, with less noise, details are well preserved at night, and dynamic pictures do not smear
Automatic white balance, automatic gain, automatic electronic shutter; video output 1.0Vp-p 75Ω
Optional audio: video and sound are entered into MDVR together, and in-car conversations and on-site sounds can be restored afterwards, providing more evidence for disputes
One tail line outputs two channels of video (+ audio) at the same time. custom according to the MDVR interface definition, plug it in and use it
Fleet remote monitoring/MDVR platform, capable of real-time viewing and event traceback
Connector, wire length and pin definitions are custom according to car model and MDVR, no external converter is required
Compact and small shell, easy to hide in the car (near the rearview mirror/ceiling/A-pillar)
12V power supply, directly draws power from the car, no additional power module is required
Wide operating temperature, suitable for indoor exposure to severe cold weather; anti-seismic and anti-interference design, suitable for long-term driving environment
The bracket is fixed, easy to install, and the wiring can be routed along the factory wiring harness
Shell color, silk screen printing and packaging can be custom according to the project

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

There is no original datasheet on file for this model, so resolution, angle, voltage and IP rating are subject to factory confirmation. Request the datasheet before ordering.
Confirm the directions and angles of the two lenses (outside the car + inside the car, or other combinations), and what focal length lenses are used for each of the two lenses
Confirm resolution/format: AHD 720P/960P/1080P, PAL/NTSC, and match MDVR/monitor
Confirm whether audio is needed: how many microphones are needed, how to enter the audio into MDVR, and whether noise reduction is required
Confirm the interface definition: the pins and line sequence of the two-channel video (+ audio), it is best to provide the MDVR model or interface diagram
Confirm the connector type (default 4-pin aviation header, customizable) and line length (default 0.5m tail line, 1m / 5m / 10m customizable)
Confirm the power supply voltage and power-taking location: the default is 12V (8-15V). For 24V models, please confirm whether it is equipped with a step-down voltage
Default specifications: 2053 + 8536H solution / AHD high definition / PAL system / dual lens synchronous output / without reversing auxiliary line (no park line); no wide dynamic range (WDR) function, if you need other configurations, please explain in advance
Confirm whether waterproof cases, extension cords and brackets are needed, and whether the installation location will affect vision or airbags
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
The definitions of the two video lines must be checked clearly. Wrong insertion will result in no picture on one of the lines
The installation location should avoid the airbag deployment area and do not block the driver's view
Fix the wiring and follow the factory wiring harness to avoid being close to high-temperature parts such as the engine and sharp sheet metal edges
Insert the connector all the way and lock it tightly, and put on the waterproof cover; although the car will not be exposed to rain, you still need to pay attention to moisture and car wash vapor
The lens should be installed to avoid facing strong light/backlight, and the lens in the car should not be blocked by headrests or objects
Wipe the lens and IR LED cover regularly. Dust and fingerprints will affect the nighttime picture
Models with audio: Confirm local regulatory requirements for in-car recording before installation and use, and inform the car owner
