JPC-146 Agricultural machine/special-purpose vehicles LED work light camera (1080P-AHD lighting monitoring all-in-one

Name: JPC-146 — JPC-146 Agricultural machine/special-purpose vehicles LED work light camera (1080P-AHD lighting monitoring all-in-one
Brand: JFA-CAM

JPC-146 Agricultural machine/special-purpose vehicles LED work light camera (1080P-AHD lighting monitoring all-in-one machine/8 high-power LEDs/IP68)

Request a Quote Email about JPC-146

Key features

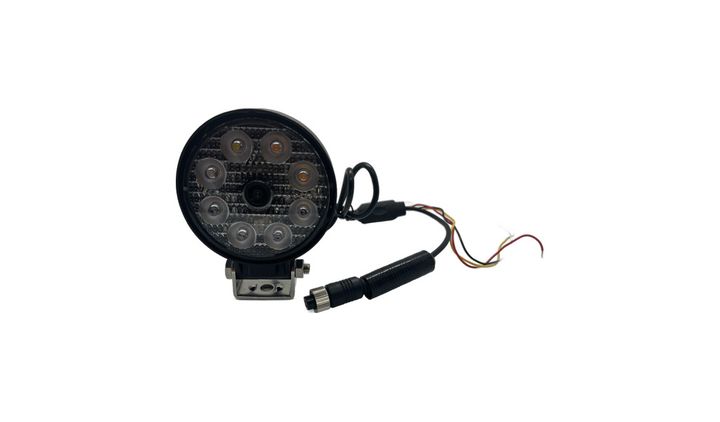

2-in-1: a work light and a camera in the same housing - you light the working area and see the picture at the same time
The position where the light is installed is the position of the camera: one installation position, one wire, and one power supply. There is no need to drill additional holes or pull additional wire harnesses during modification
You can see where you shine at night: wherever the light shines, you can see the picture. There is no need to guess when reversing, unloading, harvesting, shoveling, and hoisting
Solve old problems: a single-mounted work light only lights up but cannot be seen, a single-mounted camera cannot illuminate at night - one machine solves lighting and monitoring at the same time
Universal for agricultural machinery, construction machinery, trucks, and trailers. One machine can be used as a work light and reversing/operation monitor at the same time

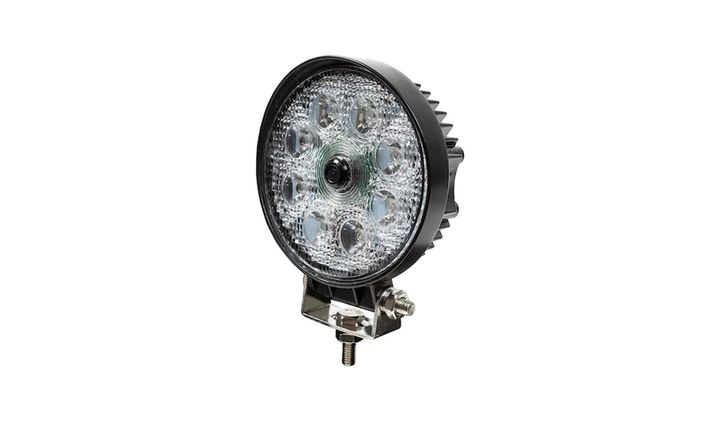

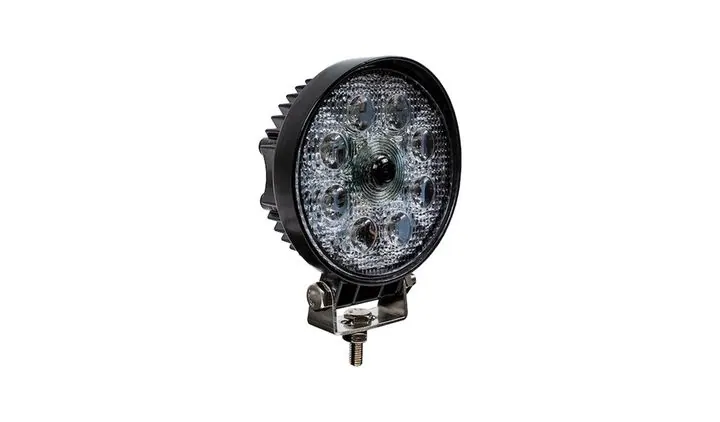

8 pcs imported high-power LED beads with a special optical lens, matched light distribution
Night illumination distance up to 50-100 m - far enough for field, yard and quarry work
60 degree flood light beam - wide and even light, no hot spot right in front of the machine
Three levels of light are optional (high light/medium light/low beam), switching according to the working scene (optional version)
Optional color temperature 3000K / 4500K / 6000K - warm light penetrates rain and fog, white light allows you to see details clearly
Night work light power ≤10W, camera 2W: small current, long-term operation will not damage the vehicle battery

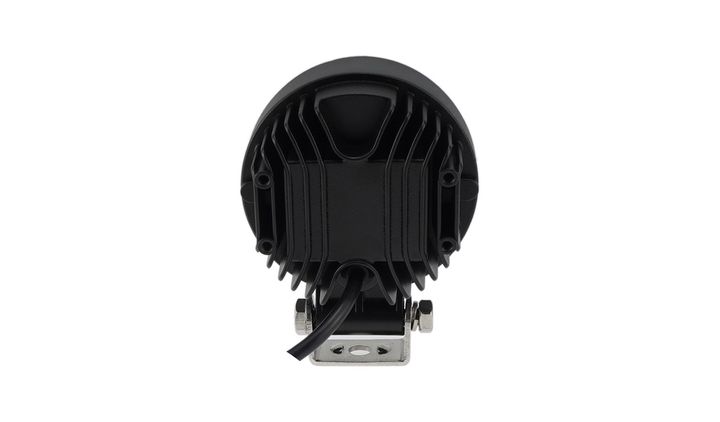

High temperature PC lampshade + cast aluminium housing with grid-type heat sink - LEDs stay cool, longer life
High quality 1080P-AHD / 720P, PAL / NTSC
A-class HD AHD chip designed for the vehicle environment: wide video dynamic range, 3D noise reduction, auto white balance, auto backlight compensation, auto electronic shutter
Clear picture, fast dynamic response, no trailing shadow (no trailing shadow when the machine moves)
Minimum illumination 0 Lux (LED light on) - The screen will light up as long as the light shines on it
View angle about 110 degree (there is also about 120 degree version)
Video output 1.0 Vp-p 75 ohm; signal-to-noise ratio >= 48 dB (AGC on)
IP68: submersible water-pump grade sealing process - truly waterproof, for rain, mud and high-pressure washing
Anti-seismic and anti-interference design, built for the constant vibration of harvesters, excavators and tractors

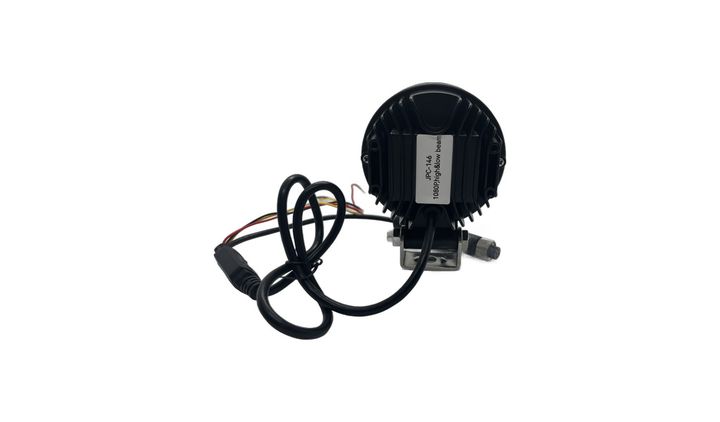

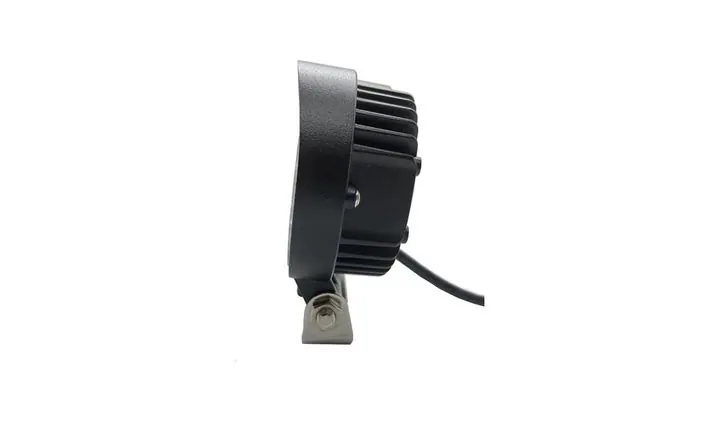

Thickened cast-aluminium housing with grid heat dissipation - high grade look and longer service life
Large stainless steel screws - stays tight under vibration
4-core aviation female plug with self-locking function - waterproof and vibration proof
Working temperature -20°C to +70°C
Patent appearance design, compact and delicate
Round work-lamp housing (3.5 inch class) - uses the same mounting position as a normal round work light
Simple installation with one bracket - no extra holes, no extra cable run
Camera 12 V (8-15 V); work light 12-24 V - fits both 12 V cars / vans and 24 V trucks, tractors and construction machines
Application: agricultural machinery, tractors, harvesters, engineering vehicles, excavators, cranes, forklifts, trucks, ships and off-road equipment
Wiring matched to the vehicle: 4-pin aviation standard, custom cable length and connector on request

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the lighting version: single gear or three gears of high light / medium light / low beam (optional), choose color temperature 3000K / 4500K / 6000K
Confirm resolution/format: AHD 1080P/720P, PAL/NTSC
Confirm lens angle: about 110°
Confirm the voltage and wiring method: camera 12V (8-15V), work light 12-24V, lights and camera are powered separately; confirm whether the vehicle is 12V or 24V
Confirm connector type: Default 4-pin aviation connector (self-locking waterproof female connector)
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Confirm whether the installation hole position is matches the factory part work light, and whether a waterproof cover or extension cord is required
Default specifications: 2053 + 8536H solution / AHD 1080P / About 110° field of view / PAL system / 4-pin aviation connector / Camera 12V, work light 12-24V; mirror image, no reversing auxiliary line (no park line), no wide dynamic range (WDR) function, if you need other angles or NTSC, please explain in advance
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Confirm the voltage before wiring: camera 12V (8-15V), work light 12-24V, do not connect the positive and negative poles reversely
The power of the work light is relatively large (≤10W). It is recommended to add a separate fuse. The wire diameter should be sufficient to avoid sharing the same bundle with sensitive signal lines
The outer casing of the lamp will heat up when it is working. Avoid oil pipes, plastic parts and flammable materials when routing wires. Do not touch the lamp surface with your hands immediately after shutting down
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Insert the connector all the way and lock the self-locking buckle, and put on the waterproof cover to avoid water ingress
Mud and dust coverage will affect the light output and picture. Clean the lamp surface and lens promptly after operation
IP68 is a water-proof seal. When washing the car, avoid direct high-pressure water gun directly into the lens, light surface and connectors for a long time
After adjusting the angle, tighten the screws. Do not over-tighten the large stainless steel screws
