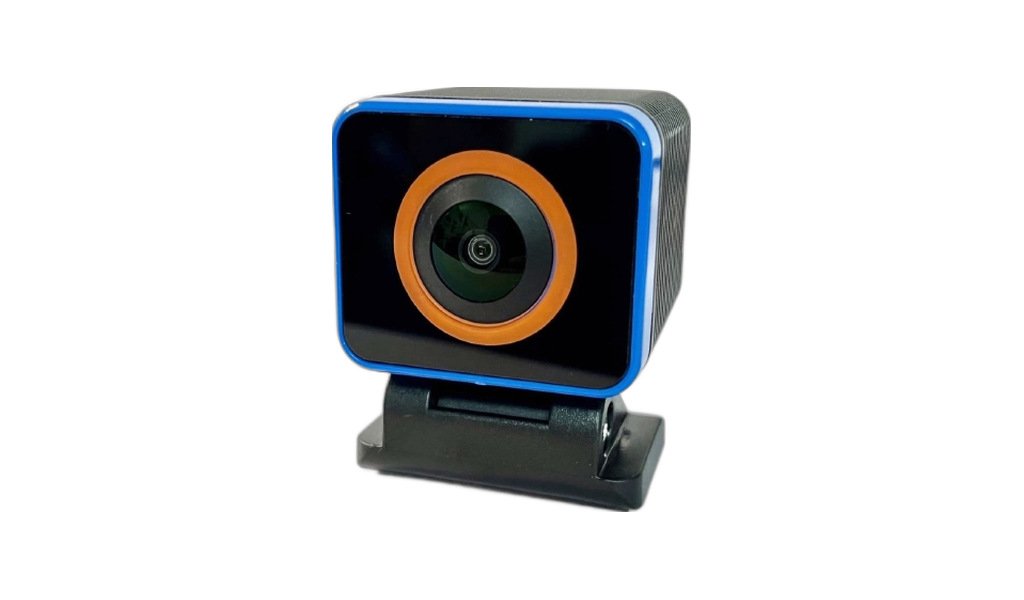

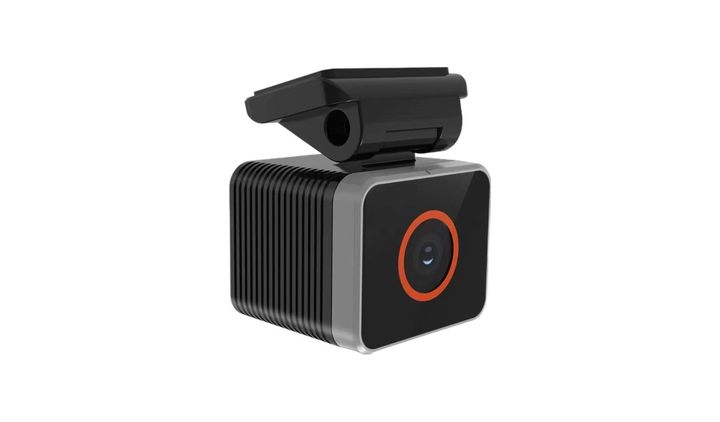

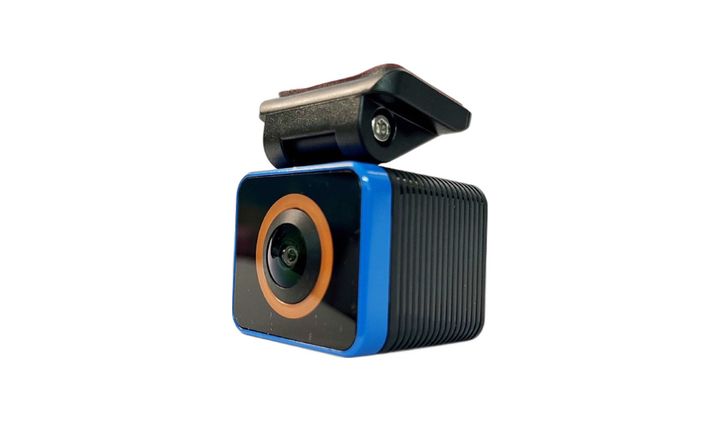

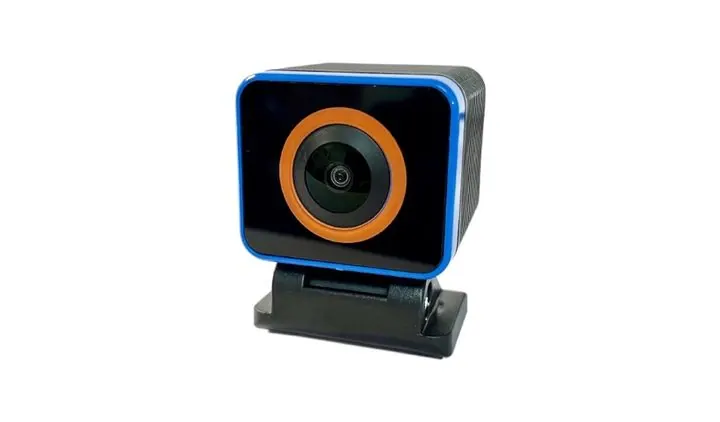

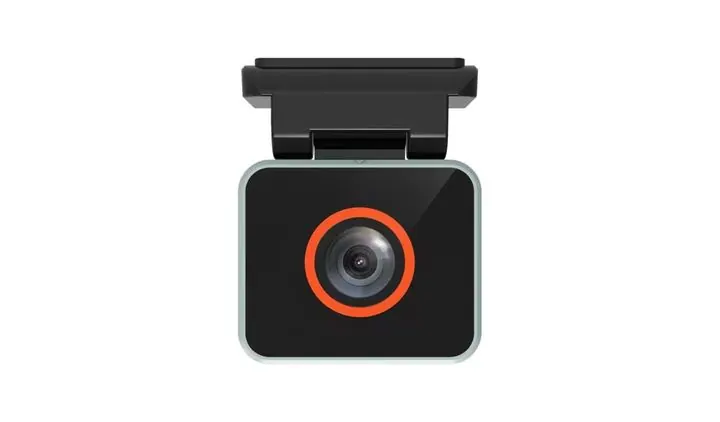

JPC-145 Front glass front camera 1080P (105° / IP69K)

Key features

Front view camera for windscreen mounting on trucks and buses
2053 + 8536H chipset, 1920(H)x1080(V), AHD output
110 degree viewing angle, 2.8 mm lens (no IR LEDs - daytime front view)
Adaptive digital noise reduction, support UTC; no WDR (wide dynamic range) function
All-aluminium alloy waterproof housing, anti-demolition design, IP69K
Power 12V (8V-15V) < 2.5W, working temperature -20°C to +70°C
4-pin aviation cable: 1 red 12V+ / 2 black 12V- / 4 yellow video signal

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm whether the forward vision without night vision version meets the requirements

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
