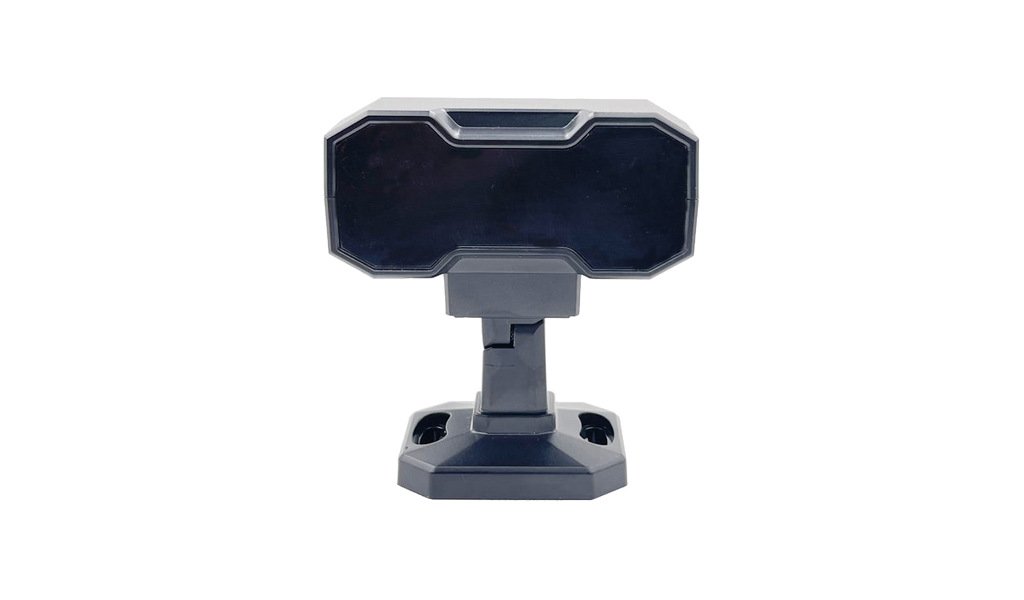

JPC-143 DMS Driver Monitoring Camera (AI/WiFi)

Key features

DMS (Driver Monitoring System) camera - monitors the driver and can raise alarms
AI dual-lens module with WiFi, works with a phone app and a monitor display
Detects fatigue / distraction behaviour and shows the event on screen
WiFi connection to mobile app for live view and event review
For trucks, buses, taxis and fleet safety management
Alarm types, algorithm and platform options are made per project - confirm before ordering

Points to confirm before production so the unit arrives ready to fit.

There is no original datasheet on file for this model, so resolution, angle, voltage and IP rating are subject to factory confirmation. Request the datasheet before ordering.
Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard and made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm that the alarm function requirements (fatigue/phone/smoking/distraction, etc.) cannot be connected to the platform
Confirm the camera angle (facing the driver

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
The IP rating is subject to factory confirmation; when washing, do not hold a pressure washer on the lens or connector.
The DMS camera should be installed facing the driver's face to avoid backlighting and obstruction
