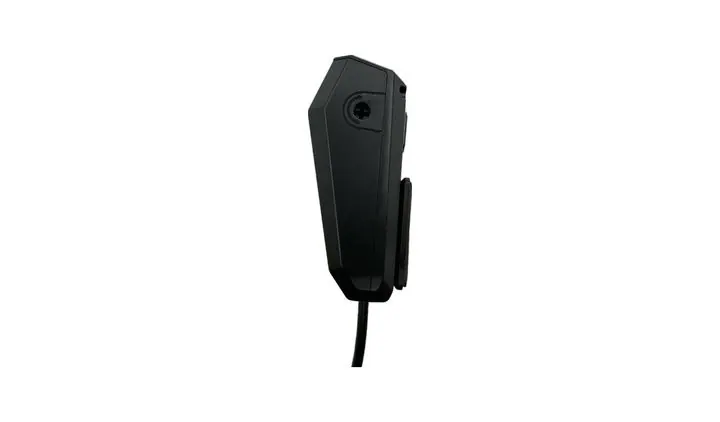

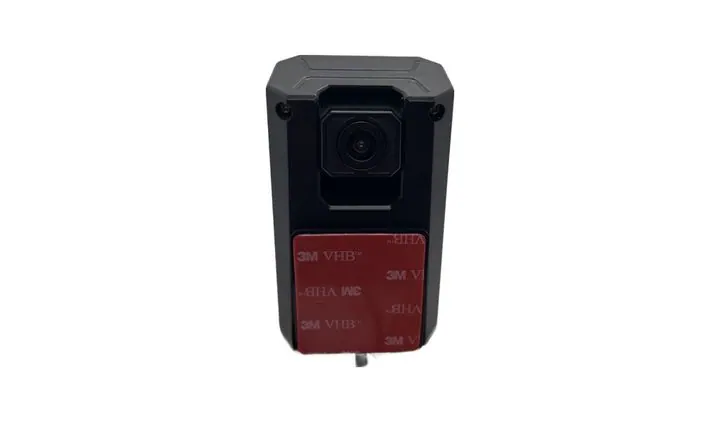

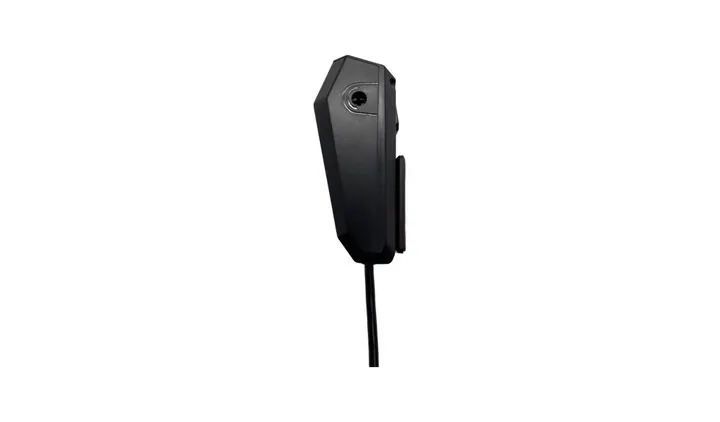

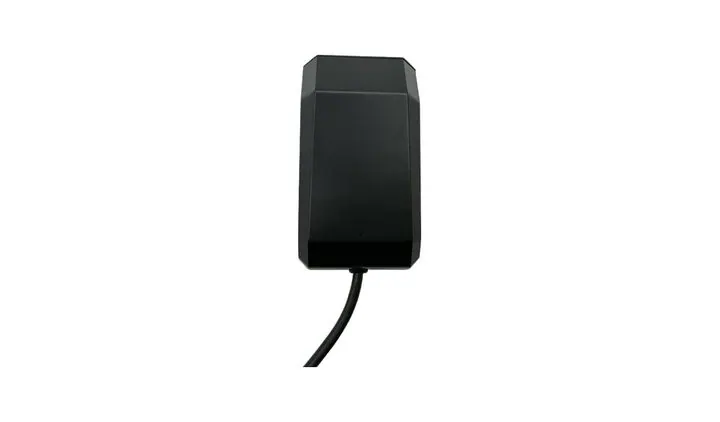

JPC-137 front view camera (windshield/AHD 1080P-720P)

Key features

Front view camera for trucks and buses, mounted on the windscreen or front panel
2053 + 8536H chipset color CMOS, AHD output
1080P 1920(H)x1080(V) or 720P 1280(H)x720(V) version
110 degree viewing angle, 2.8 mm lens
Adaptive digital noise reduction, support UTC; no WDR (wide dynamic range) function
Working temperature -20°C to +70°C, power 12V (8V-15V) < 2.5W
No IR LEDs (day view front camera); 4-pin aviation cable

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm the 1080P or 720P version.
Confirm whether it is a front view or a side view angle requirement (this product does not have infrared night vision)

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
Product is not waterproof
