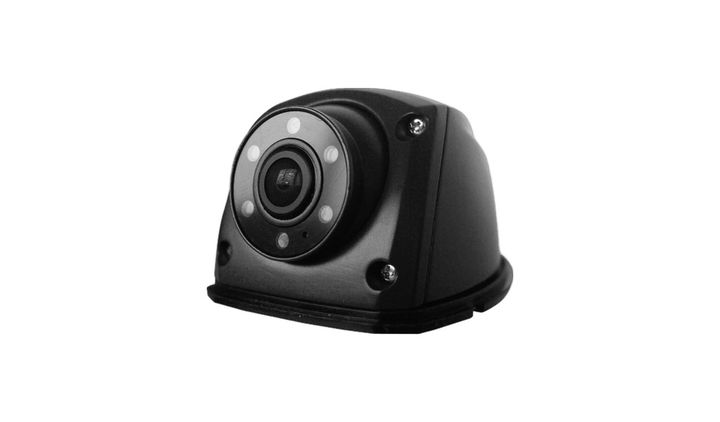

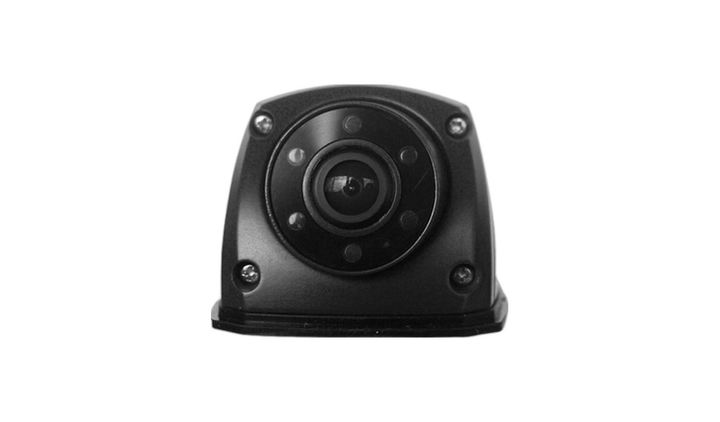

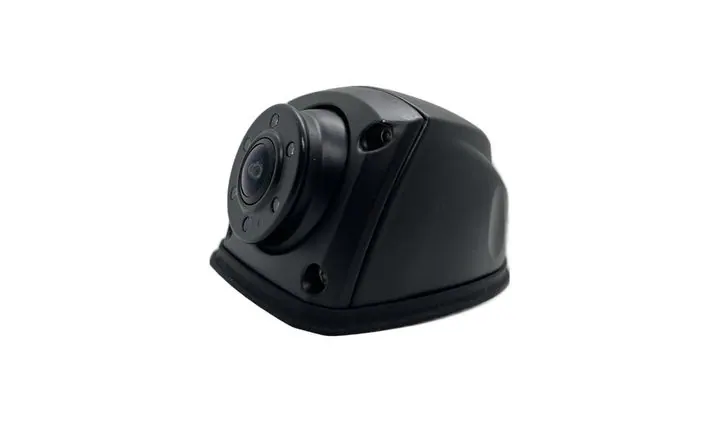

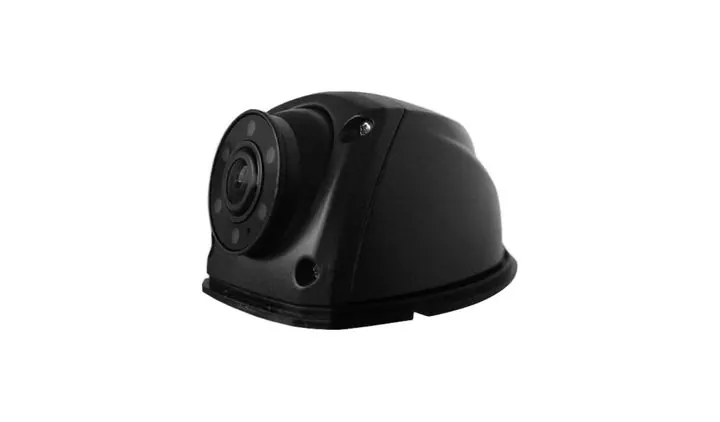

JPC-125-1 Super vision and heightened side view camera 1080P (2053 + 8536H solution / night vision 10M)

Key features

Extra-height side camera housing - lifts above the body line so the side blind spot is not blocked
2053 + 8536H chipset color CMOS, 1920(H)x1080(V), AHD output
110 degree (also 105 degree variant) viewing angle, 2.8 mm lens
IR distance 10 m without auto IR-cut
Adaptive digital noise reduction, support UTC; no WDR (wide dynamic range) function
All-aluminium alloy waterproof housing, anti-demolition design, IP69K
Power 12V (8V-15V) < 2.5W, working temperature -20°C to +70°C
Multiple heights / lens angles available (up to 180 degree variant) - confirm the ordering version

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm the height of the heightening bracket and the lens angle (110° / 105° / 150° / 180°, etc. versions)
Confirm whether you need to extend the bracket

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
