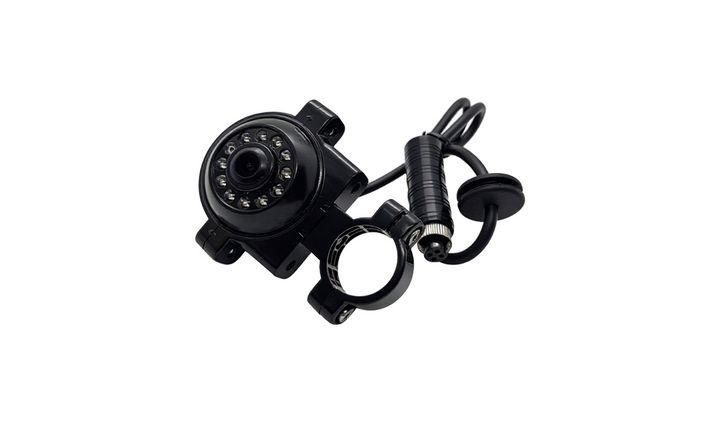

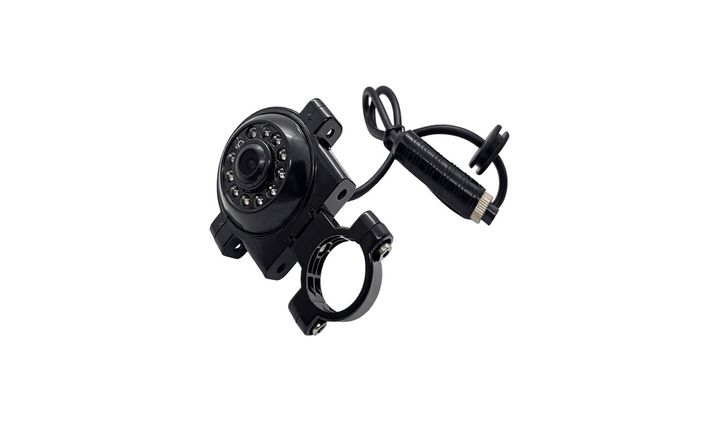

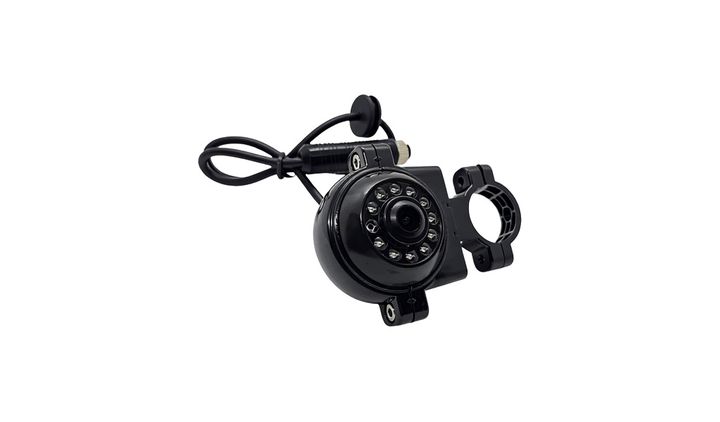

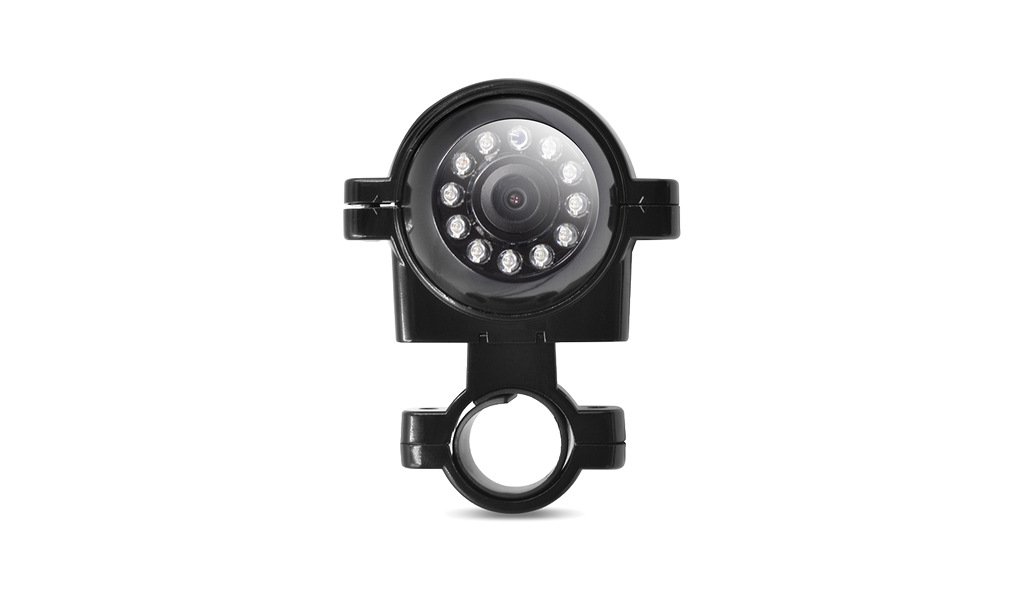

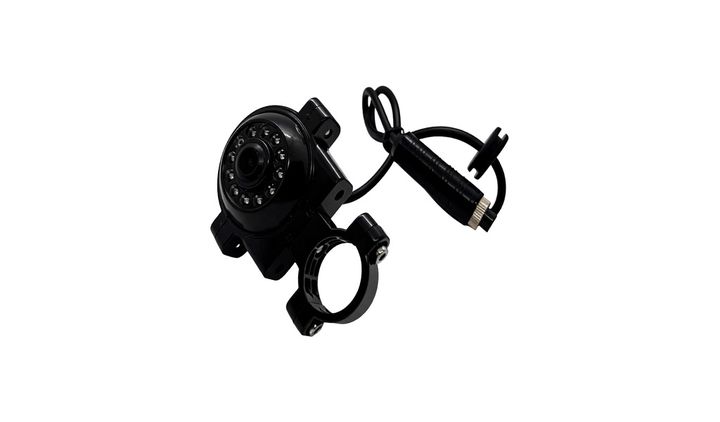

JPC-119 Arm Metal Housing Camera (Gimbal/Night Vision)

Key features

Arm-type metal bracket camera - the arm can be bent / adjusted to reach the required viewing angle
Metal housing with built-in IR for night vision
Suitable for positions where a normal bracket cannot reach, e.g. cab interior and side body
4-pin aviation cable as standard (RCA optional)
AHD 720P / 1080P output options - confirm with the factory

Points to confirm before production so the unit arrives ready to fit.

There is no original datasheet on file for this model, so resolution, angle, voltage and IP rating are subject to factory confirmation. Request the datasheet before ordering.
Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard and made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm the length and mounting hole location of the arm bracket

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
The IP rating is subject to factory confirmation; when washing, do not hold a pressure washer on the lens or connector.
Do not repeatedly bend the metal arm at large angles to avoid fatigue breakage of the internal wires
