JPC-117 AI camera (AI recognition/vehicle monitoring)

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

Key features

AI camera module for vehicle monitoring - can be used for driver / cabin / blind spot analysis

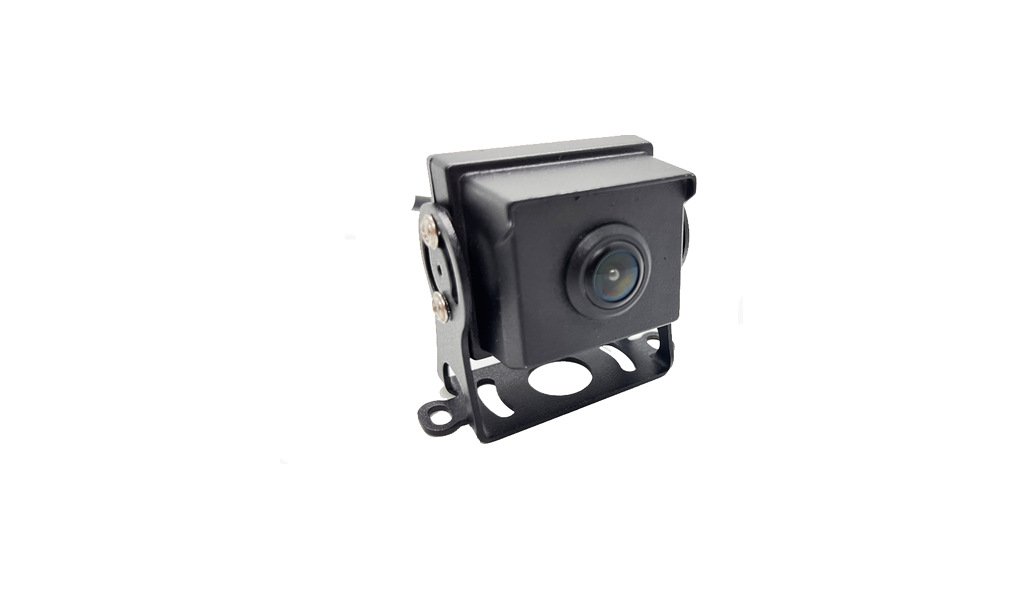

Compact housing with bracket, adjustable angle

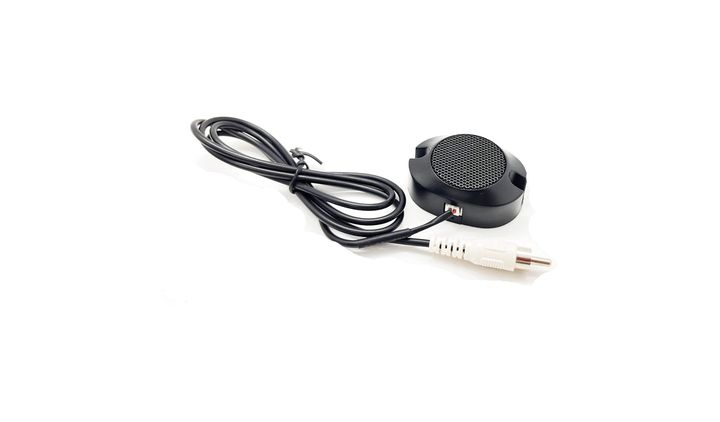

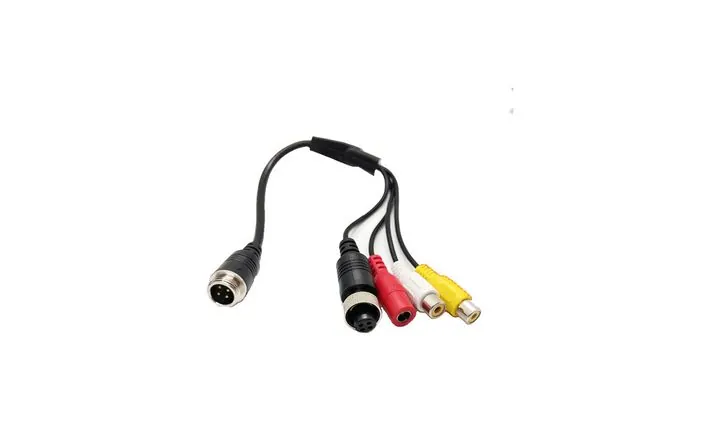

Video output to monitor or MDVR; cable set as shown in the photos
Works with AHD / CVBS display systems - confirm the version with the factory
Suitable for trucks, buses, taxis and fleet management
AI functions and algorithm version are made per project - confirm before ordering

Points to confirm before production so the unit arrives ready to fit.

There is no original datasheet on file for this model, so resolution, angle, voltage and IP rating are subject to factory confirmation. Request the datasheet before ordering.
Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard and made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm AI functional requirements (what targets are recognized, whether alarm output is required) and whether supporting algorithms/platforms are required

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
The IP rating is subject to factory confirmation; when washing, do not hold a pressure washer on the lens or connector.
AI cameras are more sensitive to lens cleanliness and wipe the lens and IR LED surface regularly
