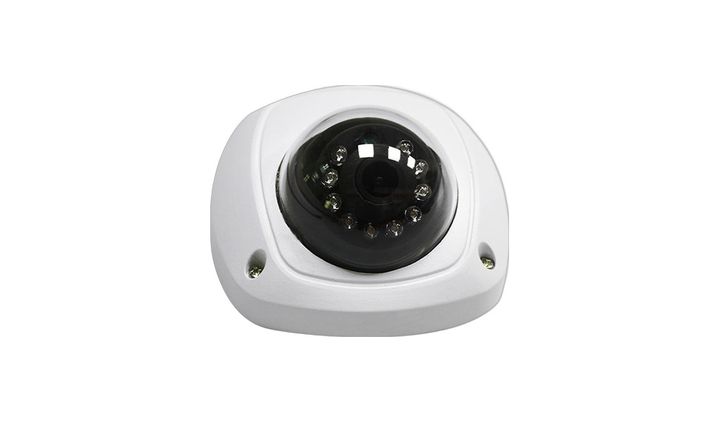

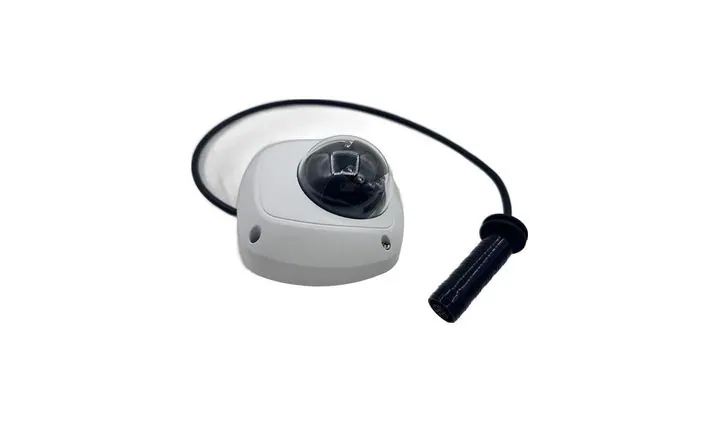

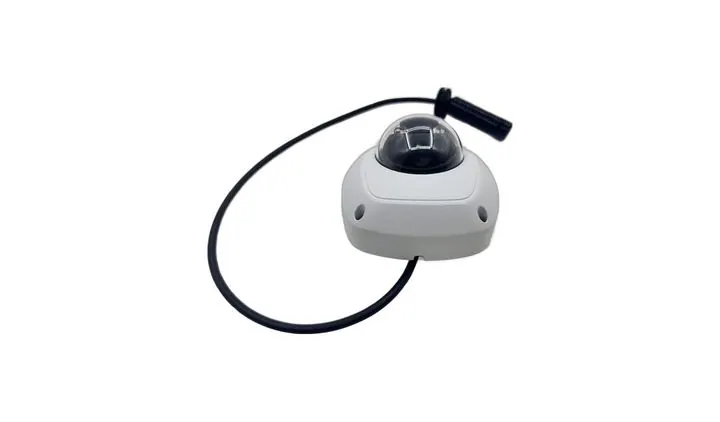

JPC-116 Truck rear view/in-car camera 1080P (2053 + 8536H solution, night vision 15M)

Key features

Night vision rear / cabin camera for trucks, 1080P AHD output
2053 + 8536H chipset color CMOS, 1/2.9" sensor
105 degree viewing angle, 2.8 mm lens, 1920(H)x1080(V)
IR distance 15 m with auto IR-cut - clear picture in the dark
Adaptive digital noise reduction, support UTC; no WDR (wide dynamic range) function
All-aluminium alloy waterproof housing, anti-demolition design
Power 12V (8V-15V) < 2.5W, working temperature -20°C to +70°C

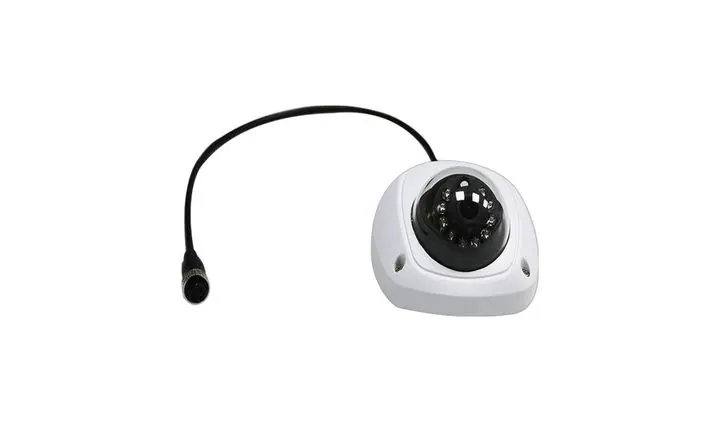

4-pin aviation cable: 1 red 12V+ / 2 black 12V- / 4 yellow video signal

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
