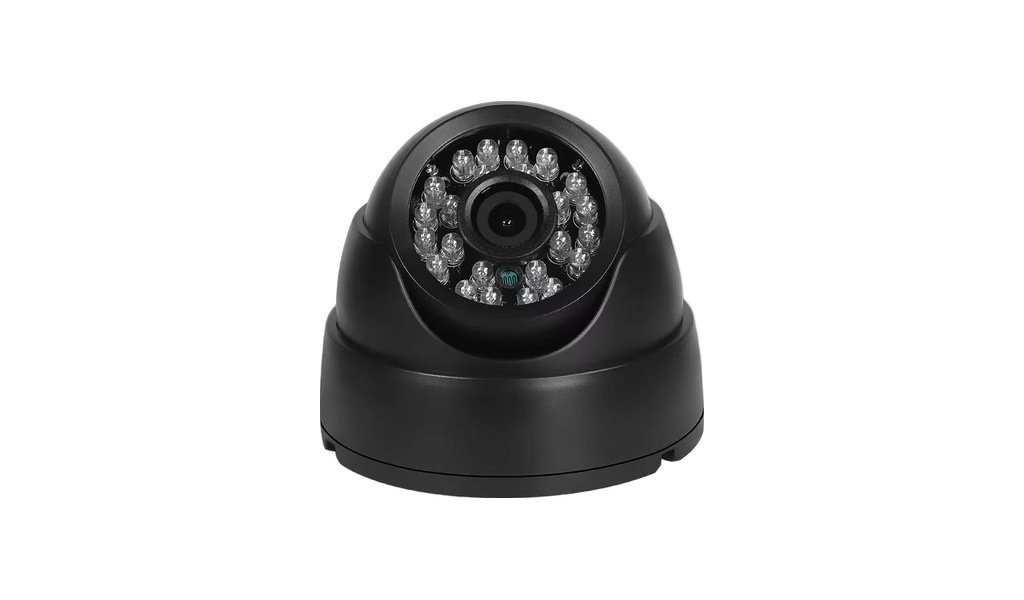

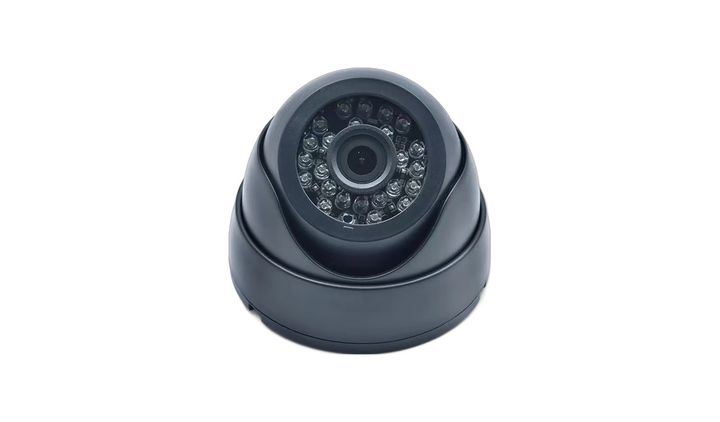

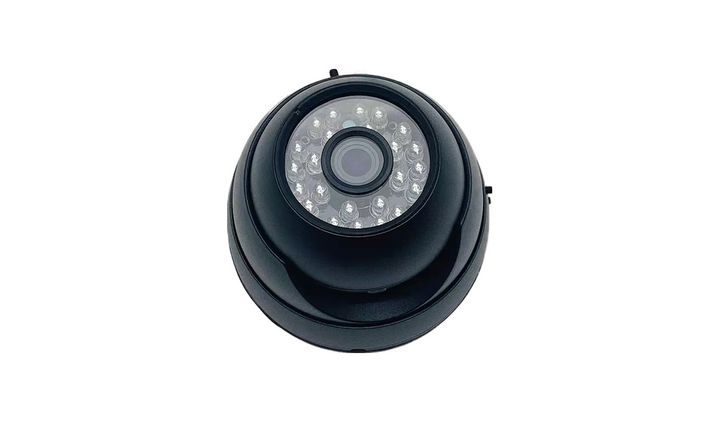

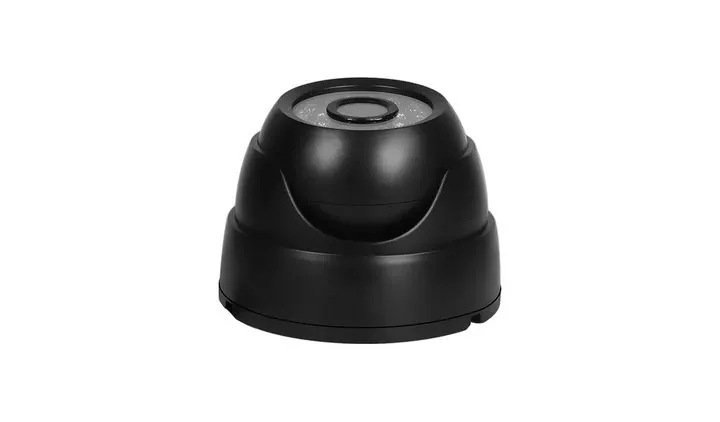

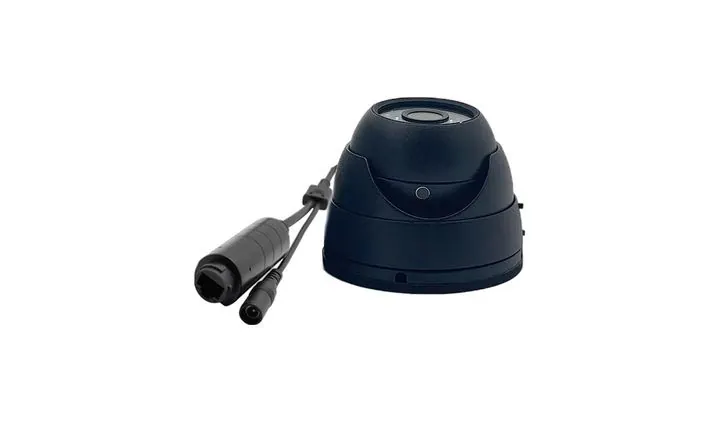

JPC-115B metal indoor bus camera (077L, aluminum alloy, with night vision)

Key features

Metal housing interior camera for bus and coach (077L series)
Aluminium alloy housing, black surface finish, built-in night vision
Compact dimensions: bracket 82 x 53 mm, overall dome 82 x 60 x 53 mm
14 mm lens module with fixed lens holder - stable focus, no drift
Silicone waterproof gaskets (lens 39.9x3 mm, housing 54.3x51.8x1.5 mm) and sealed cable outlet
4 x bracket screws M4x6, 4 x housing screws M2.5x8, 4 x PCB screws M2x5
Suitable for bus / coach interior, cars and indoor vehicle monitoring

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.

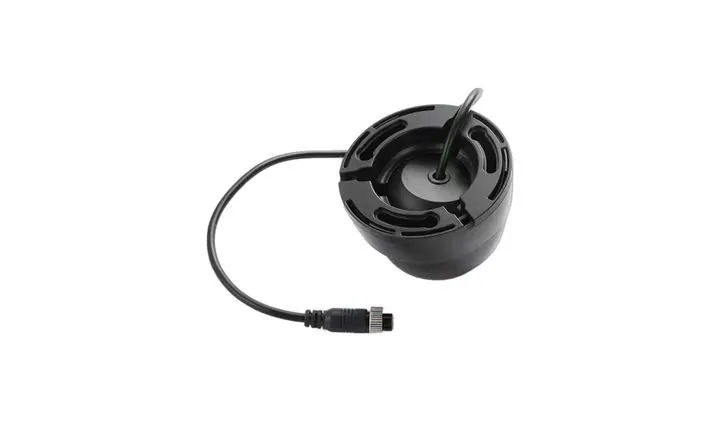

Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm the installation method (ceiling/bracket) and the wiring location in the car

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
