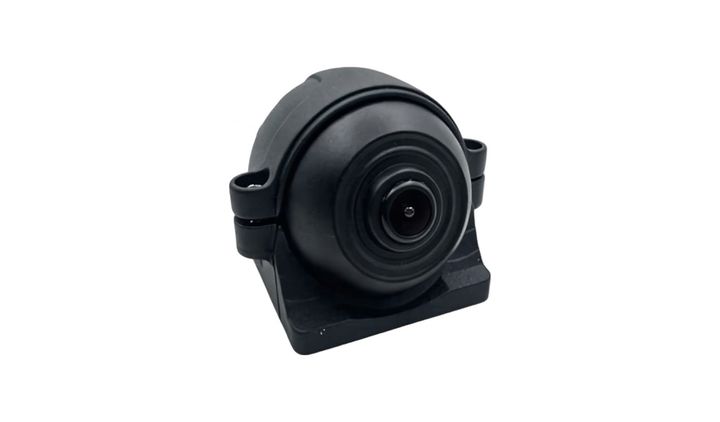

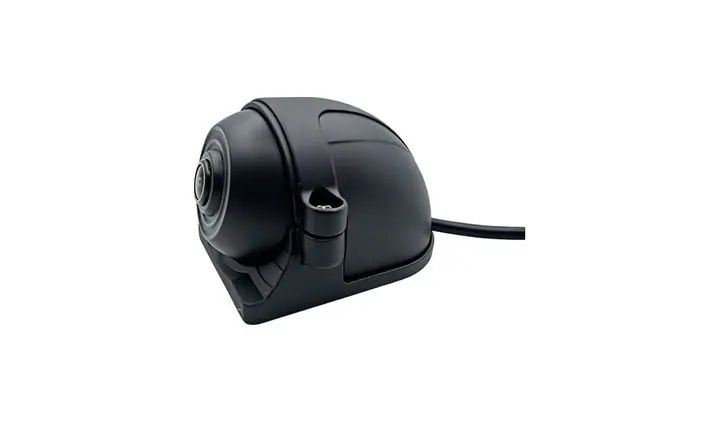

JPC-113 Metal large housing side view camera (12 lights / IP68 / 0.27kg)

Key features

Metal case with fixed lens and 12 pcs IR LEDs - easy to install on wall or ceiling
0 MP model M-AHD-1256-D: 1/4" CMOS, 720P 1280(H)*720(V)
3 MP model M-AHD-2256-D: 1/3" CMOS, 960P 1280(H)*960(V)
PAL / NTSC, AHD video output, auto gain control and auto white balance
3D noise reduction, illumination 0.01 Lux/F1.2 (IR on), IR range 15 m
M12 lens mount, 3.6 mm lens (2.8 mm or 4 mm optional), field of view 90 degree
IP68 waterproof, operating temperature -20°C to +60°C, DC 12V
Black metal housing, size 89 x 77 x 63 mm, weight 0.27 kg

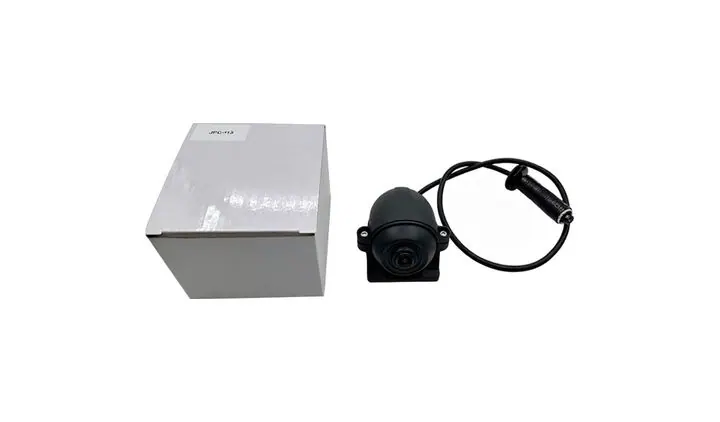

4-pin aviation connector as standard (BNC optional); colour box 11.5 x 11.5 x 11 cm, 48 pcs / carton

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Confirm pixel version: 1.0MP (720P) or 1.3MP (960P)
Confirm lens angle: 3.6mm standard, optional 2.8mm/4mm
Confirm video connector: default 4-pin aviation header (BNC optional)

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
