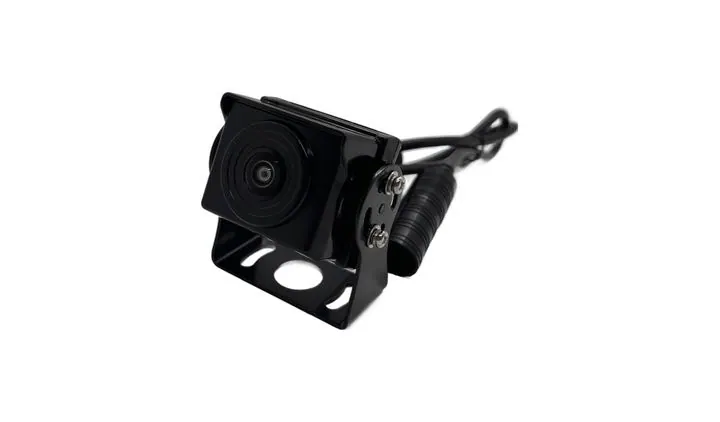

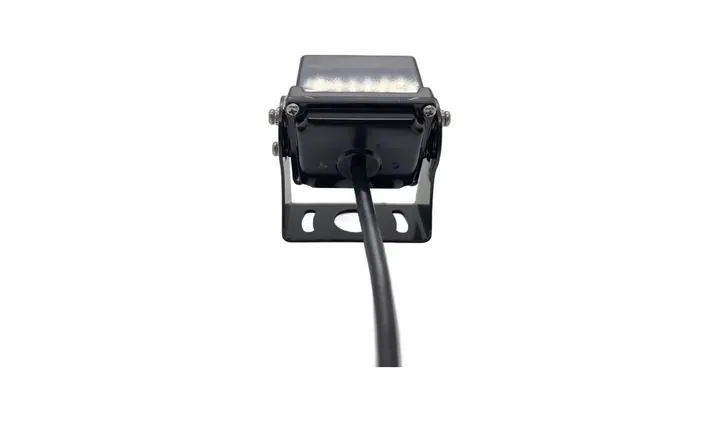

JPC-110 universal vehicle camera (square housing with bracket/4-pin aviation connector)

Key features

Compact box-type vehicle camera with adjustable bracket, fits truck, van and bus mounting points

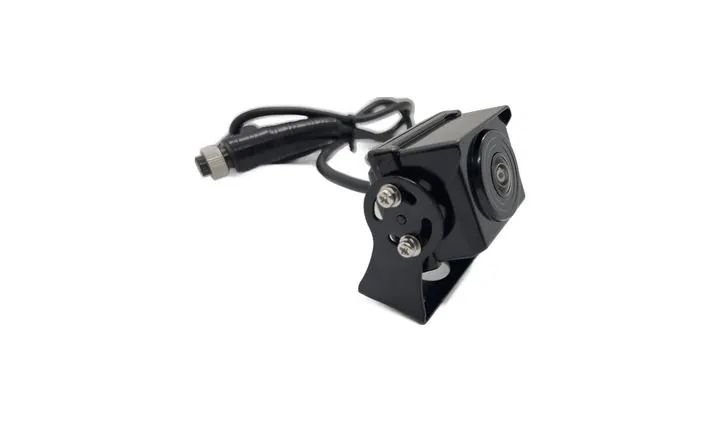

4-pin aviation pigtail cable, RCA adapter cable supplied in the photo set - works with common monitors

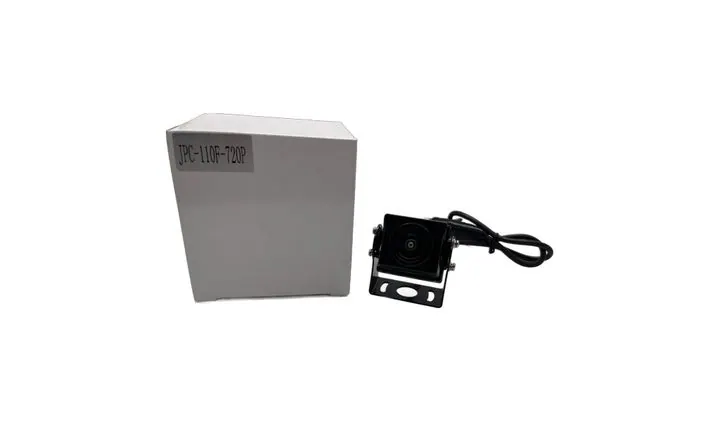

Packaging label shows the 720P version (JPC-110F-720P); 1080P version available on request
Metal bracket with screw holes, comes with screws and mounting hardware as shown
Standard 0.5 m pigtail, extension cables available in 1 m / 5 m / 10 m
Suitable for rear view, side view and general vehicle monitoring

Points to confirm before production so the unit arrives ready to fit.

There is no original datasheet on file for this model, so resolution, angle, voltage and IP rating are subject to factory confirmation. Request the datasheet before ordering.
Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard and made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
The IP rating is subject to factory confirmation; when washing, do not hold a pressure washer on the lens or connector.
