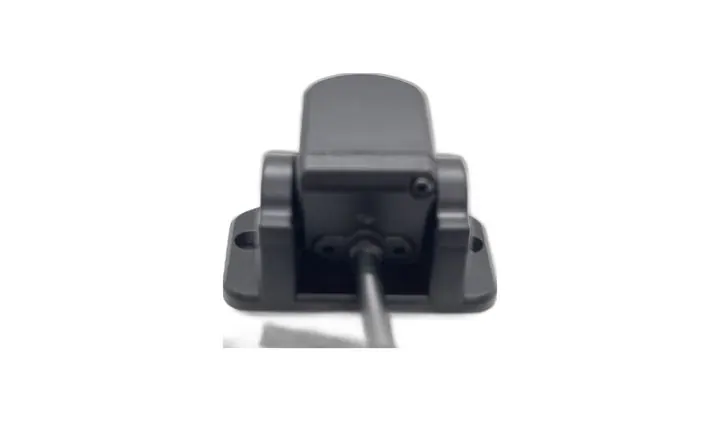

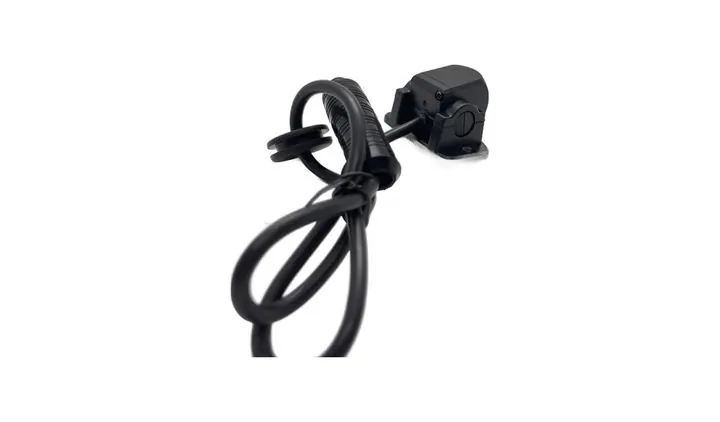

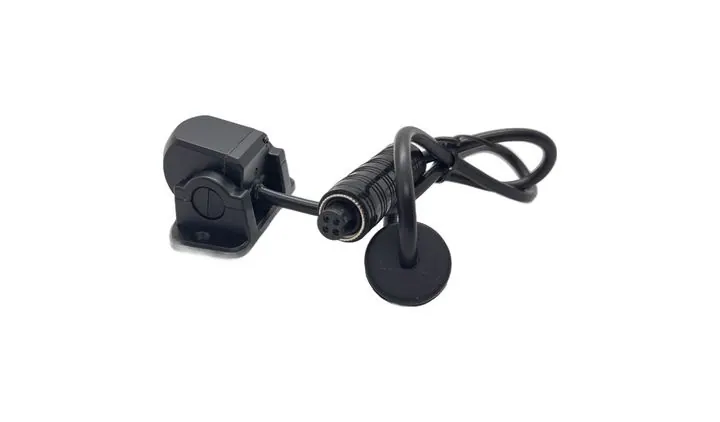

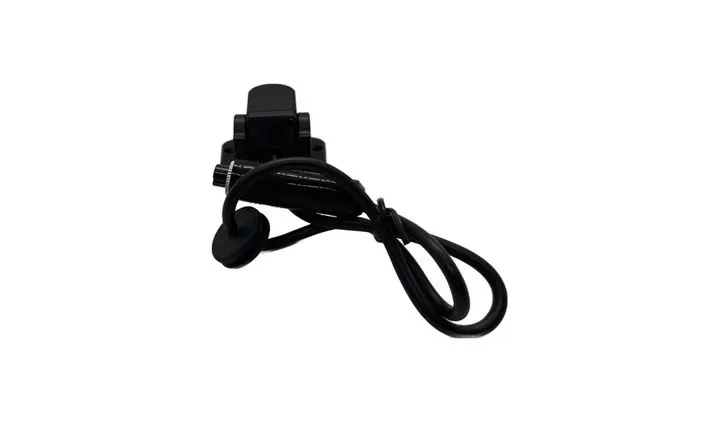

Main image and detail shots of the JPC-104.
JPC-104 Truck Side View Camera 1080P (Metal Housing/IP69K)
Key features
- Side truck camera 1080P, AHD high-definition output, clear and delicate image
- 1/2.9" color CMOS (2053 + 8536H), 1920x1080
- 150 degree wide viewing angle covers truck side blind spots
- Adaptive digital noise reduction; no WDR (wide dynamic range) function
- All-aluminium alloy waterproof housing, anti-demolition design
- IP69K waterproof rating
- DC 12V (8V-15V), power < 2.5W (IR start)
- 4-pin aviation cable: red 12V+, black 12V-, yellow video signal
- Support UTC function
- Operating -20°C to +70°C
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
- Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
- Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
- Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
- Confirm whether a waterproof boot is required.
- Confirm lens angle and mounting position — side view, rear view or cab.
- Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
- Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.
- Tighten the connector and fit the waterproof boot to keep water out.
- Tighten the screws once the angle is set.
- IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
