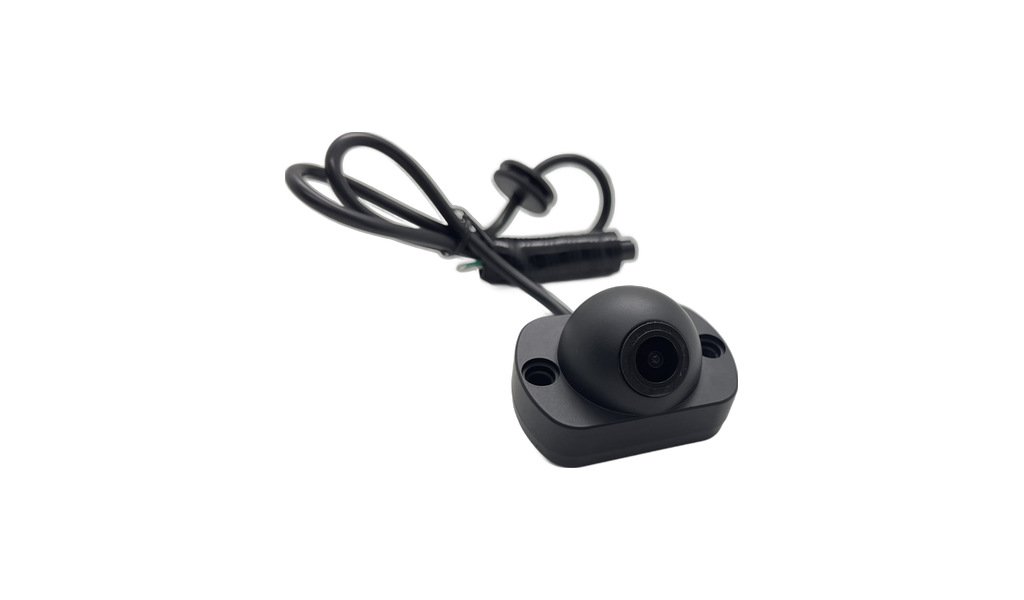

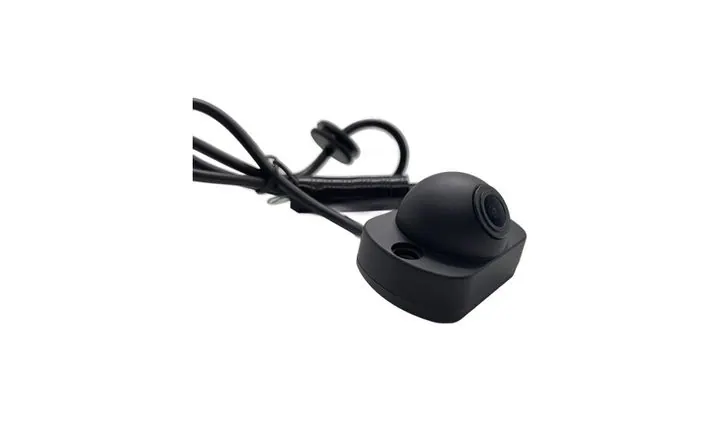

JPC-103 black metal 180° side view camera (night vision/explosion-proof housing)

Key features

180 degree super wide view angle - one camera covers the whole side blind spot
1/2.9" color CMOS (2053 + 8536H), 1920(H)x1080(V), AHD output
Full picture when compared with a normal 110 degree camera (see manual drawing)
8 mm lens, minimum illumination 0.001 LUX / F1.2
2D-DNR adaptive noise reduction; no WDR (wide dynamic range) function
All-aluminium alloy waterproof housing, metal rainproof, anti-demolition design
IP69K, working temperature -20°C to +70°C, power 12V (8V-15V) < 2.5W

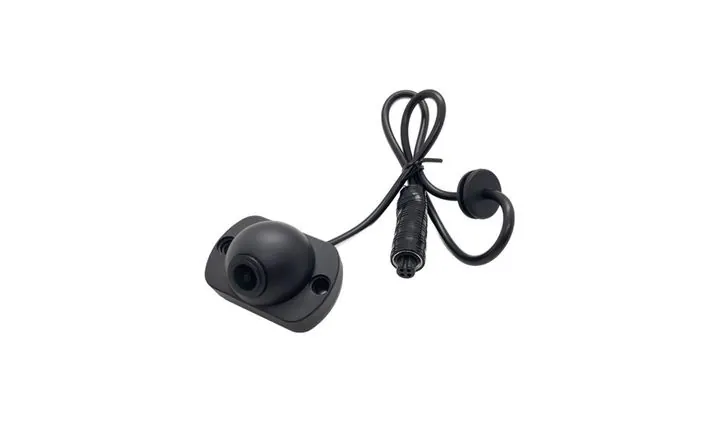

4-pin aviation cable: 1 red 12V+, 2 black 12V-, 3 white audio signal, 4 yellow video

Points to confirm before production so the unit arrives ready to fit.

Confirm resolution and format — AHD 1080P / 720P or CVBS — and match it to the monitor or MDVR.
Confirm the connector type. 4-pin aviation is standard (RCA optional) and must match the vehicle harness.
Confirm cable length. 0.5 m tail is standard; 1 m / 5 m / 10 m made to order.
Default specification: 2053 + 8536H platform, 110° field of view, PAL, no parking guide lines, no WDR. Ask in advance if you need a different angle or NTSC.
Confirm whether a waterproof boot is required.
Confirm lens angle and mounting position — side view, rear view or cab.
Confirm quantity, packaging (colour box or neutral box) and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply is DC 12V (operating range 8–15V) and never reverse the polarity.
Route and secure the cable away from the engine and other hot surfaces, and clear of sharp sheet-metal edges.

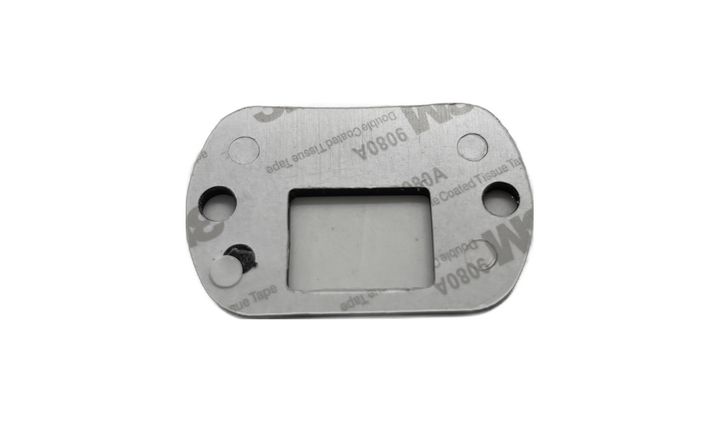

Tighten the connector and fit the waterproof boot to keep water out.
Tighten the screws once the angle is set.
IP69K covers water jets and immersion; when washing, do not hold a pressure washer on the lens or connector.
