JPC-100FORK

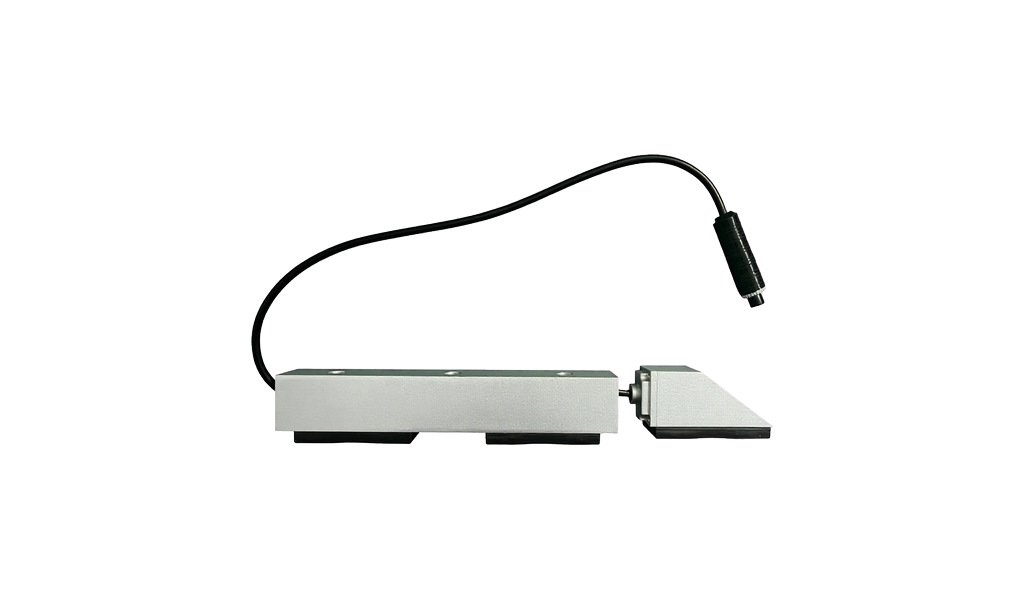

JPC-100FORK forklift camera (magnetic holder / IP69 / 5.9G shock)

  • Forklift camera with magnetic holder installation - mounts on the fork carriage or metal body in seconds
  • AHD CMOS 1/2.9" sensor (2053 + 8536H), 720P 100W / 1080P 200W optional
  • 1920(H)*1080(V)@30fps NTSC / @25fps PAL
  • 6 mm lens, 50 degree narrow view angle - aimed at the fork and load, not the whole yard

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

JPC-100FORK selling points

JPC-100FORK: the verified details behind the product page

These cards pair approved product images and exact-model source-folder evidence with selling points from the current model sheet. Ordering choices and limits remain visible below.

Approved main product view of the JPC-100FORK
01. Product identity

Forklift camera with magnetic holder installation - mounts on the fork carriage or metal body in seconds

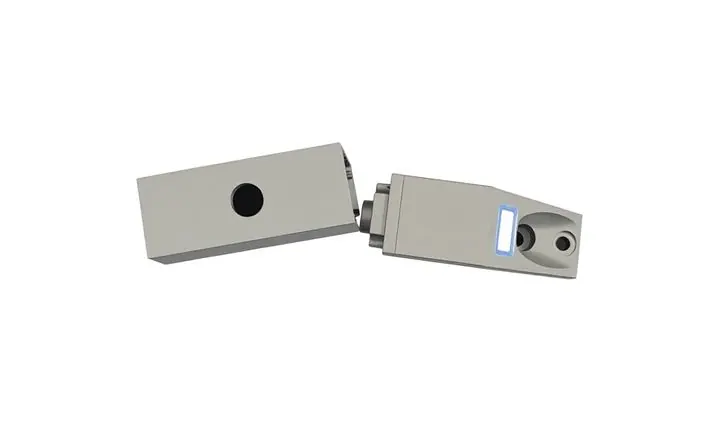

JPC-100FORK exact-model source photograph showing test or comparison
02. Test or comparison evidence

IP69 washdown protection, shock resistance 5.9G - built for forklift vibration

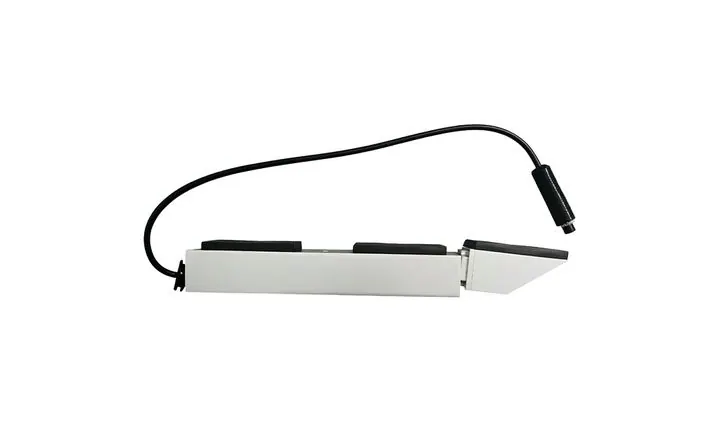

JPC-100FORK exact-model source photograph showing test or comparison
03. Test or comparison evidence

DC 12V, current < 300mA; 4-pin aviation connector as standard (RCA optional)

01

Magnetic mounting demonstration

Silent excerpt from the supplier's exact-model source folder.

02

JPC-100 fork supplier demonstration

Silent excerpt from the supplier's exact-model source folder.

JPC-100FORK product features

  • Forklift camera with magnetic holder installation - mounts on the fork carriage or metal body in seconds
  • AHD CMOS 1/2.9" sensor (2053 + 8536H), 720P 100W / 1080P 200W optional
  • 1920(H)*1080(V)@30fps NTSC / @25fps PAL
  • 6 mm lens, 50 degree narrow view angle - aimed at the fork and load, not the whole yard
  • 4 pcs 650nm LEDs: 0.1 Lux day, 0 Lux with IR
  • IP69 washdown protection, shock resistance 5.9G - built for forklift vibration
  • DC 12V, current < 300mA; 4-pin aviation connector as standard (RCA optional)
  • Working temperature -20°C to +70°C, storage -30°C to +80°C
  • Size 319 x 35 x 30 mm, weight 490 g

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Confirm AHD 1080P / 720P or CVBS and PAL or NTSC
  • Confirm the 4-pin aviation or RCA connector and cable length
  • Confirm the magnetic or fixed mounting version
  • Confirm the 6 mm / 50 degree lens version for the intended fork-monitoring position
  • Confirm whether a waterproof boot is required
  • Confirm quantity, packaging and printing requirements

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Confirm a DC 12V supply and correct polarity before connecting the camera.
  • Route and secure the cable away from hot surfaces and sharp sheet-metal edges.
  • Tighten the connector and fit the waterproof boot to keep water out.
  • Set the viewing angle, then tighten the fixing hardware.
  • For IP69 washdown, avoid prolonged direct high-pressure washing at the lens and connector.
  • Use a flat metal mounting surface and clean off oil before fitting the magnetic holder.
