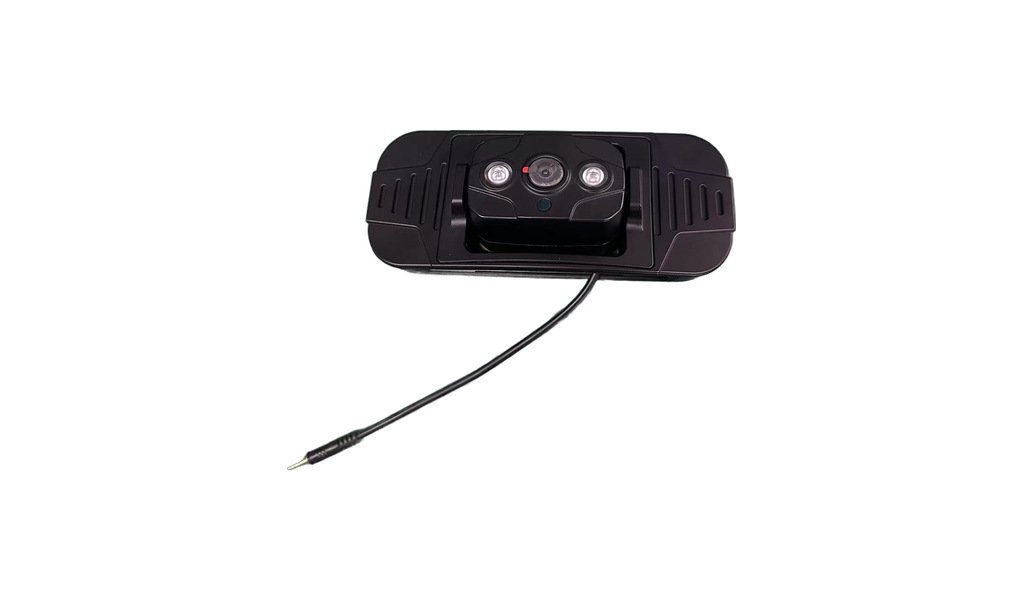

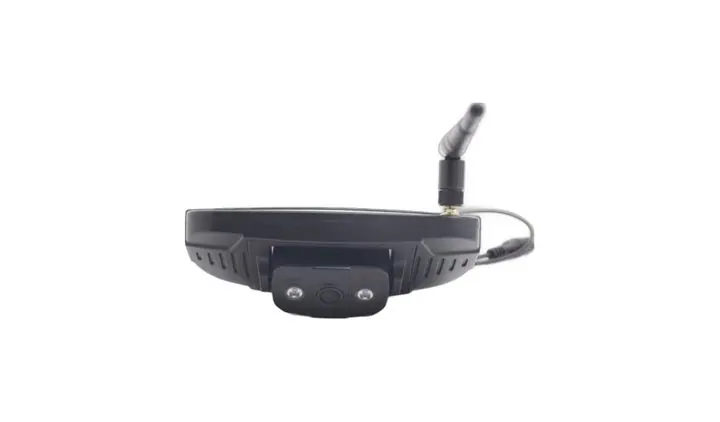

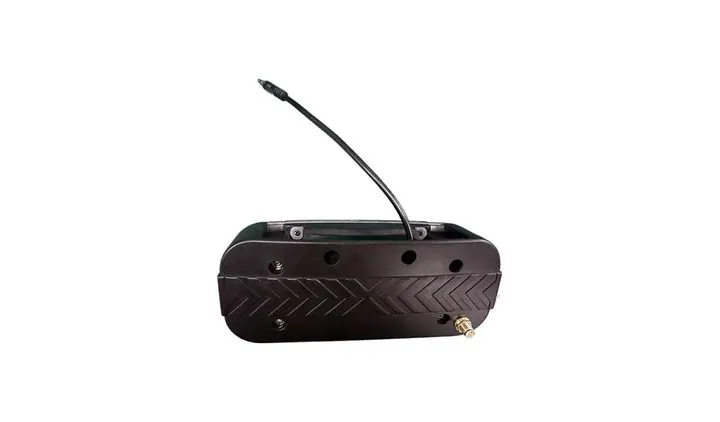

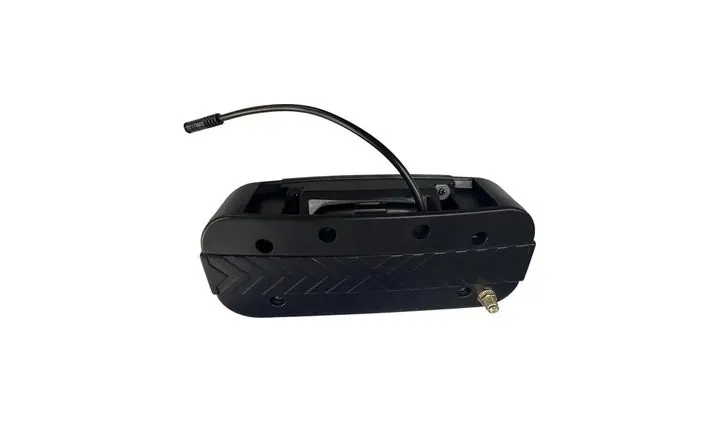

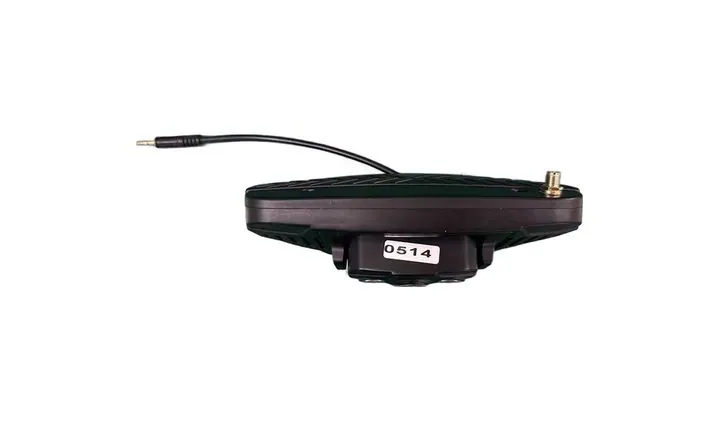

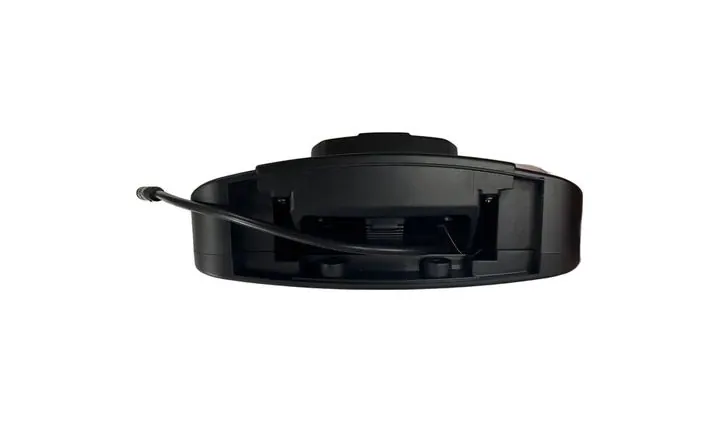

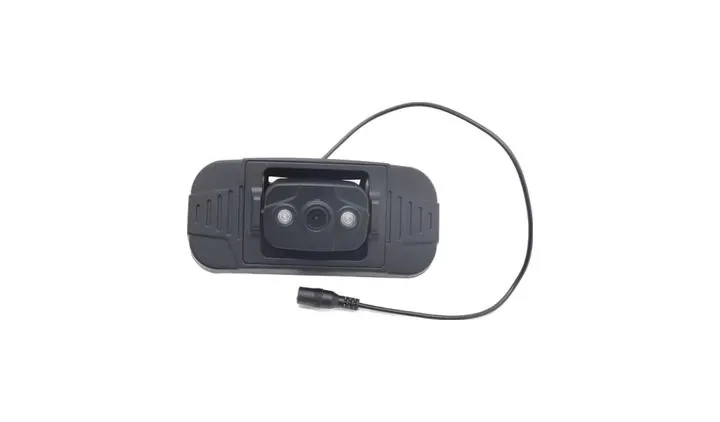

Main image and detail shots of the FWR-701P.
Wireless · FWR
FWR-701P
FWR-701P new rear view wireless camera (private mold housing)
Key features
- Private mold shell: The appearance is a customer-specific mold. The same model cannot be found on the market. It is suitable for private brands and exclusive projects

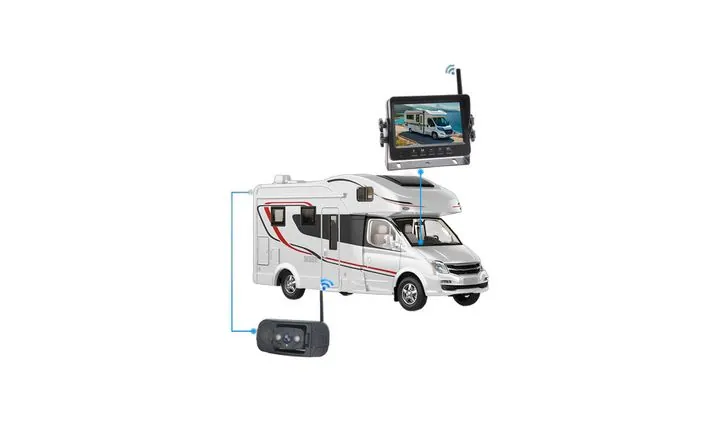

- Wireless rearview camera, used with 7-inch wireless monitor/MDVR, no video cable needed
- Special angle for rear view, the picture is centered without deformation, and it is more intuitive to look at the rear of the car when reversing
- Metal housing + waterproof structure, stable vehicle working conditions (waterproof level is subject to factory specifications)
- Can be mixed and matched with FWR-701 wireless set: old customers can upgrade the shell without changing the platform
- Private mold shell, unique appearance, prevent follow-up sales and price comparisons
- Exquisite surface treatment, more harmonious with the factory harness style after installation
- Color, silk screen printing and packaging can be custom according to customer projects
- Wireless transmitter, the receiving end can be a 7-inch wireless display or the MDVR wireless receiving module
- No need to lay video cables, making trailering, dumping and temporary installation easy
- Special lens angle for rear view, clear center area of the picture
- Working frequency 2.4G frequency band (same platform 2400-2483.5MHz)
- It has the same platform as this series of wireless suits (FWR-701/701B), the pairing method and menu are the same, and customers do not need to be retrained
- Optional antenna solutions: internal antenna or external antenna
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm which receiver is used: 7-inch wireless display or MDVR wireless receiving module
- Confirm whether exclusive authorization for private mold shells is required, as well as the exclusive period and quantity threshold
- Confirm the shell color, silk screen/logo, and packaging requirements (private models can be custom)
- Confirm the camera resolution, viewing angle, night vision distance and waterproof level (there is no specification sheet in this catalog, it needs to be confirmed and supplemented by the factory)
- Confirm the power supply method: vehicle power or battery
- Confirm antenna solution (internal/external) and harness length
- Confirm whether you need to confirm the sample first (it is recommended to confirm the sample first for private mold shells)
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The camera and receiver must be paired successfully before installation
- The transmitter and receiver should avoid large areas of metal obstruction; metal carriages will significantly shorten the distance
- Confirm the voltage range before wiring, and do not connect the positive and negative poles reversely
- Tighten the antenna interface and keep the antenna away from metal parts and high-power wire harnesses
- The waterproof level is subject to the version confirmed by the factory; when washing the car, avoid direct high-pressure water gun directed at the lens and connectors for a long time
- Clean the lens regularly. Mud and water stains will affect night vision and picture clarity
- Note: This catalog only has product pictures and videos, no specifications. Items marked "Subject to factory specifications" above need to be completed after obtaining parameters from the factory
