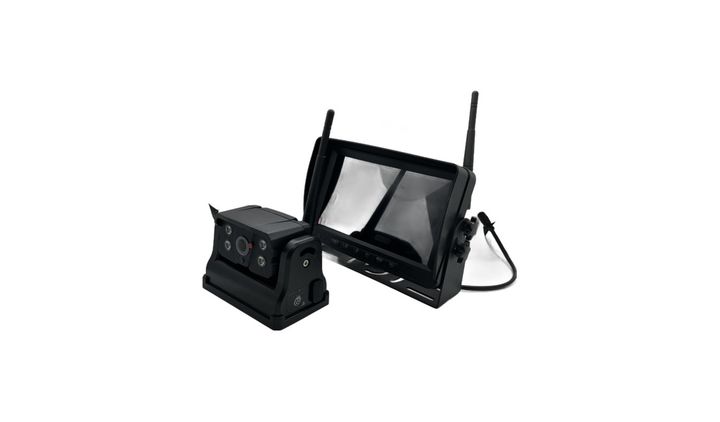

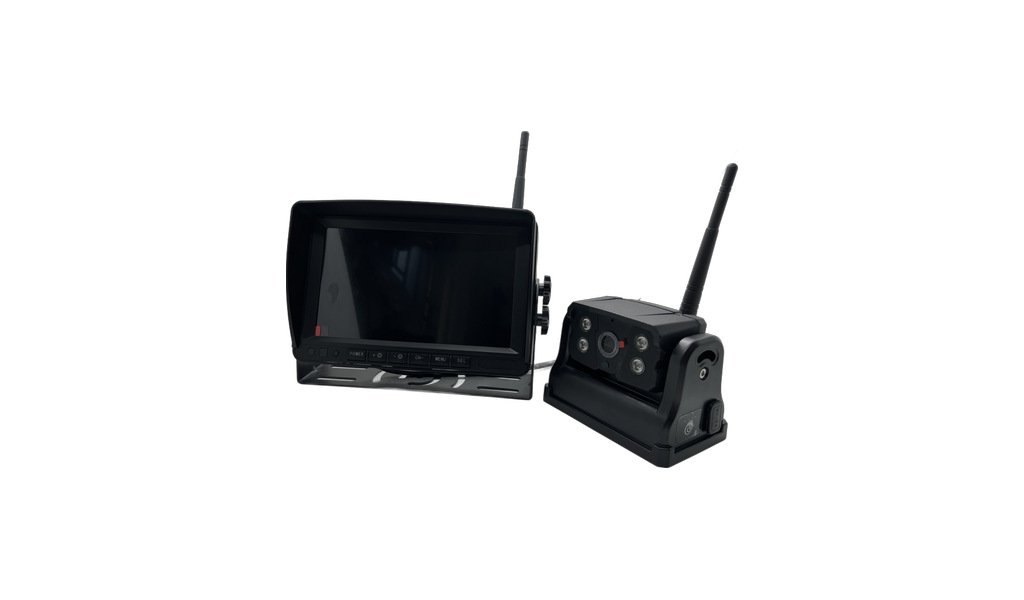

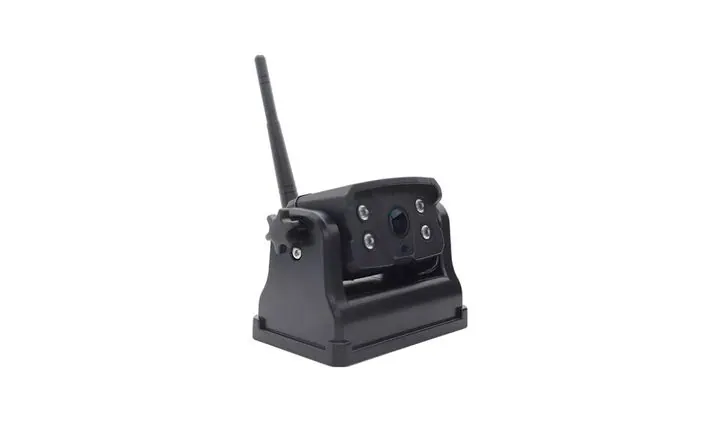

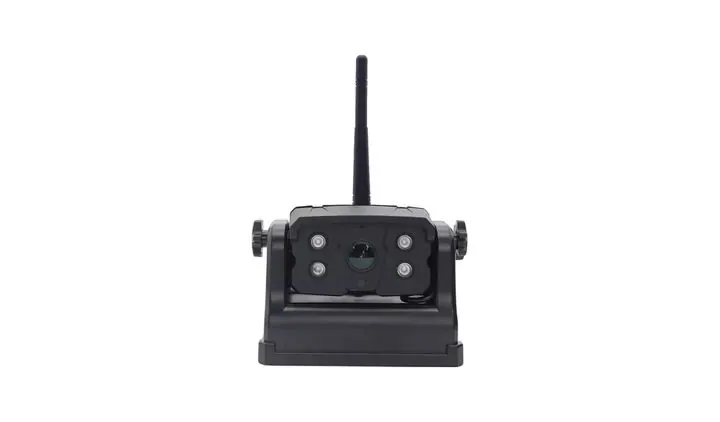

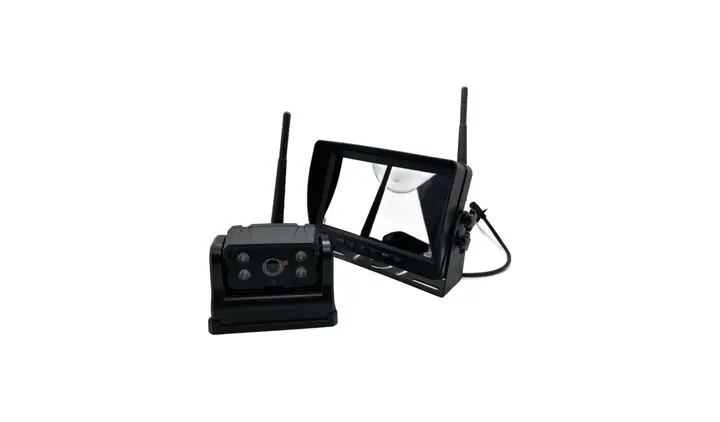

Main image and detail shots of the FWR-701B 7.
FWR-701B 7-inch wireless camera set with battery (no power connection needed, magnetic mount/preferred for temporary
FWR-701B 7-inch wireless camera set with battery (no power connection needed, magnetic mount/preferred for temporary installation)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- The camera has a built-in battery, no need to draw power from the car body - most suitable for trailers, drop-offs, temporary installations, and rental cars
- Wireless connection eliminates the need to pull video cables front and rear, and the loading time is reduced from half a day to a few minutes
- 7-inch wireless receiving display, ready to use in the cab
- The battery can be removed and charged, and you can continue working by replacing it with another one
- Suitable for temporary fleet shunting, drop-and-hook operations, second-hand vehicle installation, and exhibition demonstrations
- Camera end: Built-in battery power supply, no need to connect car power or pull wires
- Display side: conventional vehicle power supply
- Wireless transmission: no video cable required
- 7-inch screen, placed on the dashboard/sun visor
- Wireless reception, supports multi-picture display (same platform supports single/dual/quad pictures)
- Supports brightness, contrast, hue adjustment and image flipping
- Trailer, drop-hook: The trailer does not need to change the circuit, the camera follows the trailer
- Temporary installation / rental car: Do not damage the factory harness line, just remove it when returning the car
- Forklifts, construction machinery: equipment that is inconvenient to obtain power
- Demonstrations, exhibitions, prototype displays
- Batteries, chargers, antennas, stands, power cords, instructions (subject to the actual package list)
- The battery is an independent option, and a second battery can be added according to the project (used in rotation)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirmed package version: 7-inch monitor + battery version camera (FWR-701B)
- Confirm battery life requirements and whether a second battery is needed for rotation
- Confirm the battery charging method: detachment charging or car charging, charging port type
- Confirm the wireless transmission distance requirements (the standard version of the same platform is about 120m, for long distance, choose the 500m package)
- Confirm the required display mode (single/dual/quad) and whether recording is required
- Confirm camera angle, night vision distance and whether BSD alarm needs to be installed
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The battery is charged above 0°C; the available capacity will be significantly reduced in low temperature environments (customers should be reminded in cold areas)
- When not in use for a long time, fully charge it before storing it, and recharge it regularly
- The camera and monitor are paired successfully first, and then the installation position is fixed
- The transmitting end and receiving end avoid large areas of metal obstruction
- The magnetic mount/bracket must be fixed firmly. When the vibration is large during driving, it is recommended to add a safety rope for secondary fixation
- Clean the lens regularly; mud and water stains will affect night vision and picture clarity
