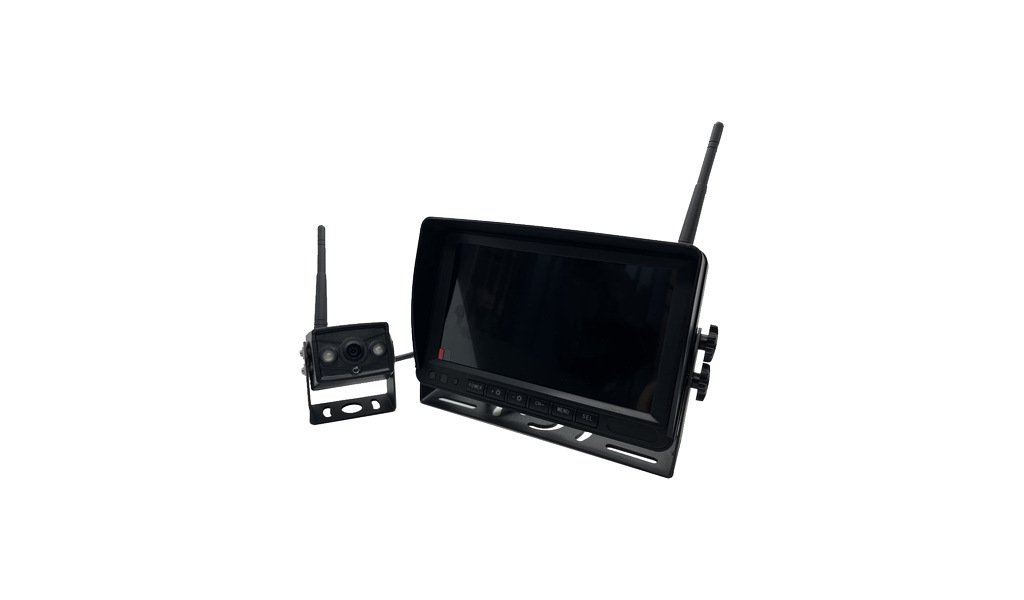

Main image and detail shots of the FWR-701 7.
FWR-701 7-inch digital wireless rear view + DVR recording system (1080P / multi-screen / supports BSD version)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- 7-inch digital wireless rearview system: wireless camera + wireless display, no video cable
- With DVR recording: Supports 1-channel/2-channel/4-channel recording (recording is the picture displayed on the screen), supports loop recording and scheduled recording

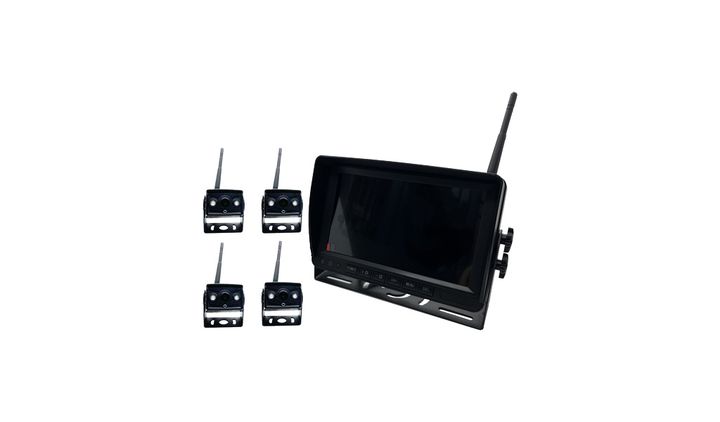

- Multi-screen display: single screen/split view/quad screen, switch as needed
- Supports BSD blind spot detection version (the algorithm is implemented in the monitor), optional audible and visual alarms

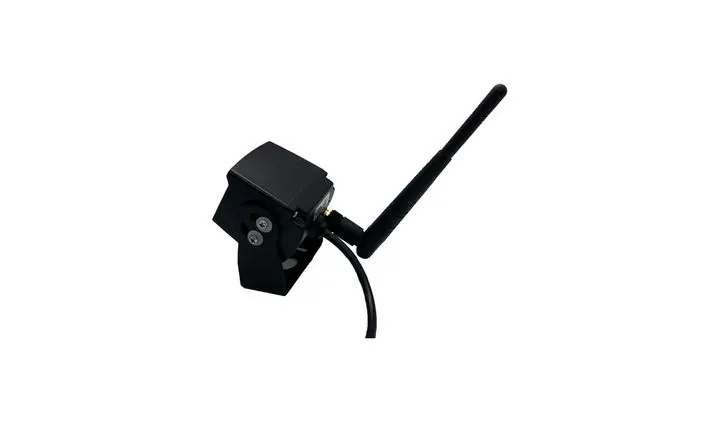

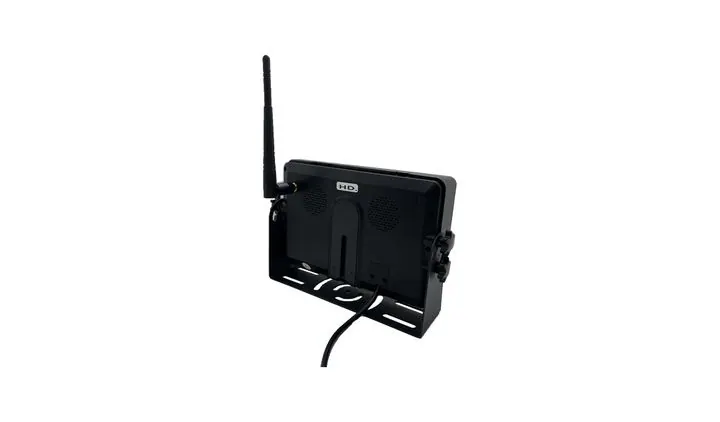

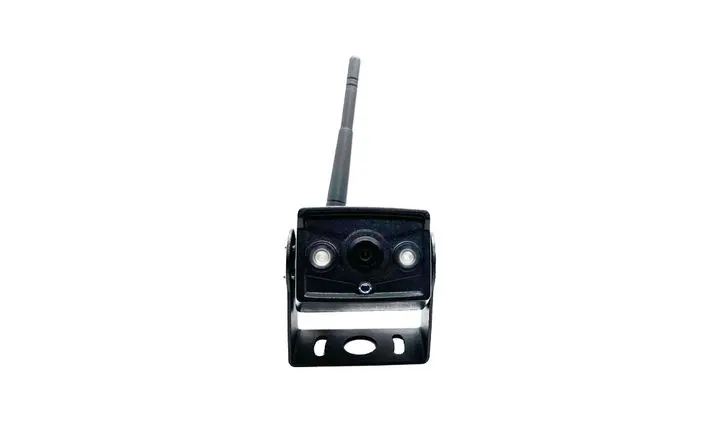

- The camera can be used as a 130° ultra-wide-angle version; the display/camera are both made of metal casings, and the vehicle working conditions are stable
- Working frequency: 2400-2483.5MHz (2.4G frequency band)
- Monitor resolution: 1280(H) × 1024(V); resolution 1000TV lines
- Brightness: 500 cd/m²
- Image sensor: 1/2.7-inch Starlight HD
- Waterproof grade: IP69
- Power supply: can be powered by 12-36V battery or vehicle power supply
- Multi-screen: single screen/split/quad screen (Multiple Viewing Options)
- Supports recording of 1 channel/2 channels/4 channels, but only the picture displayed on the screen can be recorded (all can be recorded in double split/quad split)
- Support manual recording and scheduled recording, continuous recording file by file
- Supports loop recording, press SEL key to start/stop
- The word REC will be displayed on the screen. Press and hold OK to stop recording
- Screen settings: brightness (BRIGHTNESS), contrast (CONTRAST), hue (HUE)
- DIM (brightness adjustment), DELAYTIME (trigger delay), P-LINE (reversing auxiliary line)
- Camera signal channel switch: You can open/close a camera channel individually
- Channel pairing: Press CH- to select which channel the camera corresponds to (CAM1 / CAM2 / CAM3 / CAM4)
- The algorithm is done in the monitor (no external box required)
- Note: No alarm in quad-picture mode (To use BSD to alarm, you need to switch to the corresponding single picture)
- Can be upgraded to audible and visual alarm version, but stable shipping time needs to be confirmed with the factory
- Camera angle: Standard version / 130° ultra-wide angle version
- BSD blind spot detection + sound and light alarm
- External antenna/internal antenna version (both materials are available in the catalog)
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the number of channels: 1 channel / 2 channels / 4 channels (corresponding to how many cameras are needed)
- Confirm whether the recording function is required, as well as the number of recording channels and SD card capacity
- Confirm whether you need BSD blind spot detection version and whether you want to link audible and visual alarms (you need to confirm the delivery date with the factory)
- Confirm camera angle: standard or 130° ultra-wide angle
- Confirm the antenna solution: internal antenna or external antenna (external antenna is farther away)
- Confirm the installation scenario (trailer/dump/forklift/construction machinery) and required transmission distance
- Confirm monitor/camera power supply method and wire harness length
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Pair the camera and monitor first (press CH- to select the channel and then pair), and then fix it after the picture is normal
- Recording only records the picture displayed on the screen: If you want to use a single channel to record, switch to the single screen of that channel, if you want to record all, switch to four screens
- BSD alarm does not work in quad-picture mode: When you need to alarm, you must switch to the corresponding single picture
- The transmitter and receiver should avoid large areas of metal obstruction; metal carriages will significantly shorten the distance
- Tighten the antenna interface and keep the antenna away from metal parts and high-power wire harnesses
- Confirm the voltage range before wiring, and do not connect the positive and negative poles reversely
- Clean the lens regularly. Mud and water stains will affect night vision and picture clarity
