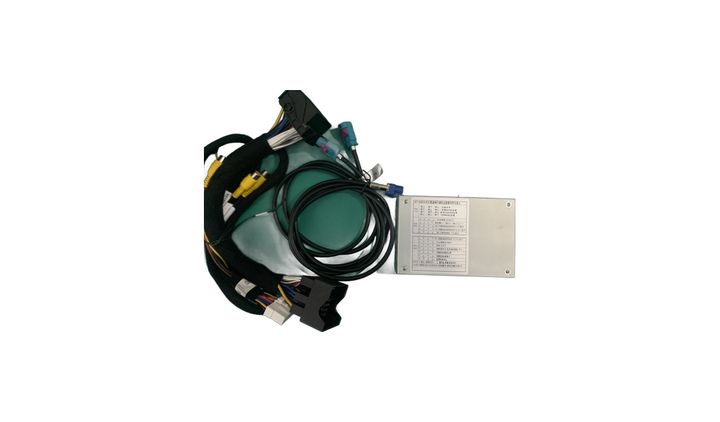

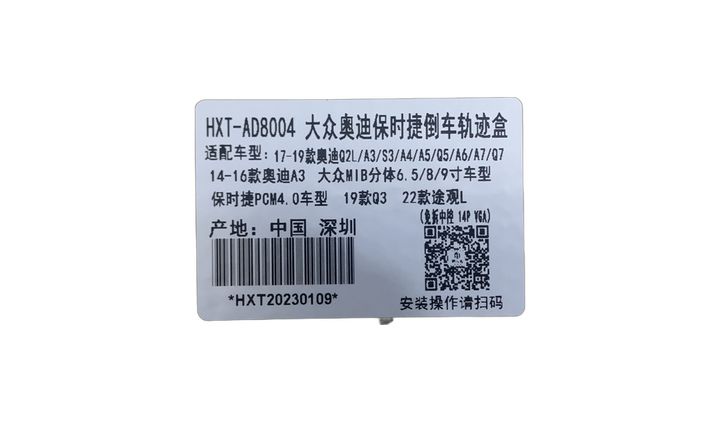

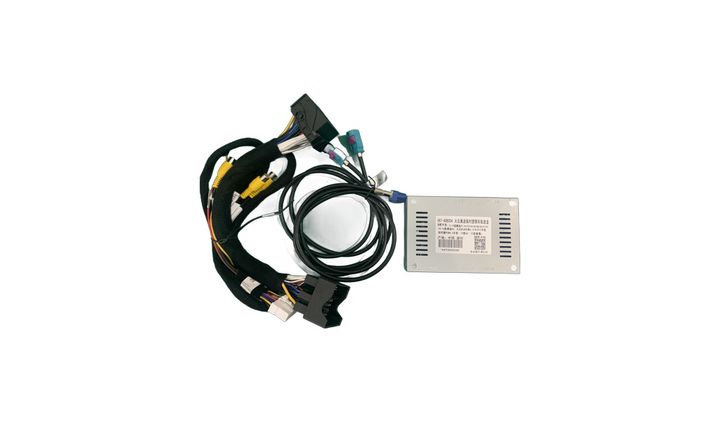

Main image and detail shots of the VW / Audi / Porsche Decoder.

Integration · Interface

VW / Audi / Porsche Decoder

Volkswagen/Audi/Porsche decoding module (factory screen plus camera)

Key features

[Specialized for special cars] Before placing an order, you must confirm: brand + model + year + factory screen (size / system / host model). The decoders of each system of Volkswagen, Audi, and Porsche are different, and the system must be quoted first
Decoding modules covering the three major car series of Volkswagen/Audi/Porsche, selected according to system
Audi: 2G system (05-09 A6 / Q7 / A8), 3G MMI (10-16), MIB (17-20)
Volkswagen: Exclusively for Touareg 20/21/22 models
Porsche: PCM3.1 (12-16), 12.3-inch screen (18-22)
Display the reversing image/360 panorama on the factory harness screen without changing the screen and retain the factory harness MMI system
Supports factory knob/touch/steering wheel button operations
Losslessly transfer the factory harness LVDS and power wiring harness without breaking the wires
The same platform also has CarPlay / CarLife / HiCar screen projection solutions (supports factory microphone)

Points to confirm before production so the unit arrives ready to fit.

The four items of brand + model + year + factory screen (size / system / host model) must be confirmed by the customer
Audi needs to distinguish between 2G / 3G / 3G+ / RMC / MIB / MIB3; Volkswagen needs to distinguish between Touareg models; Porsche needs to distinguish between PCM3.1 and 12.3 inches
Confirm whether the factory harness screen has navigation, whether it is touch-sensitive, and the screen size
Confirm the functions to be accessed: reversing image/360 panorama/recorder switching/CarPlay screencasting
Confirm whether you need a camera, extension cord and switch
Confirm whether the customer's market has vehicle inspection requirements.
Special vehicles for small quantities, ready to prepare all wires at once after confirmation
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Always work with the power off, and protect the factory interior trim.
Some Audi models need to remove the air conditioning panel or air outlet before disassembling the main engine. Do not pry hard
Connect the factory head unit's LVDS plug to the decoder's LVDS-OUT, and plug the adapter harness back into the head unit.

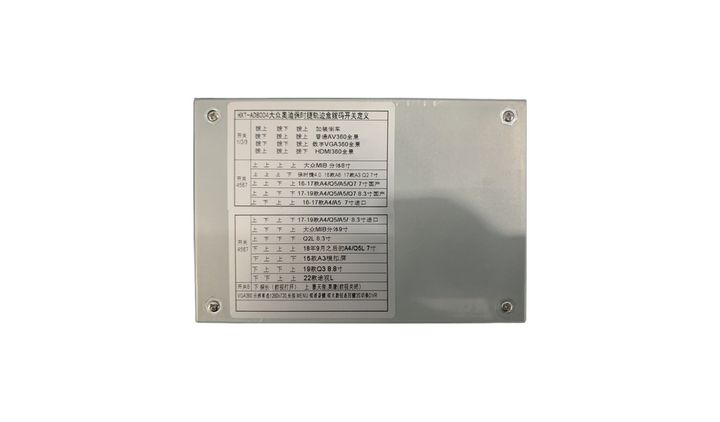

Check the dialing code and wiring harness before powering on; for models that support the recorder, turn the dialing code 6 to ON and long press the factory harness button to enter
After installation, test whether the reversing screen, factory MMI, audio, and steering wheel buttons are normal
Keep the original parts so the vehicle can be restored and warranty work is straightforward.
