Main image and detail shots of the BMW NBT (HCJ-8808).
BMW NBT decoder (HCJ-8808 / factory screen with camera)
Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.
Key features
- [Specialized for special vehicles] Before placing an order, you must confirm: model + year + whether the host system is NBT. BMW main engines are divided into CCC / CIC / NBT / EVO / MGU. Most of the 13-17 models are NBT, but the same year models may also be mixed, so you must confirm
- BMW NBT system dedicated decoder, model HCJ-8808
- Covered models: 1 / 2 / 3 / 4 / 5 / 6 / 7 series, X1 / X3 / X4 / X5 / X6, M2 / M3 / M4 / M5 / M6, i3 / i8 (13-17 models), and MINI NBT (14-17 models)
- Display the reversing image/front view/360 panorama on the factory harness's iDrive screen without changing the screen
- Retain the factory harness’s iDrive system and all factory functions
- Supports factory iDrive knob and button operations
- Losslessly transfer the factory harness LVDS and power wiring harness without breaking the wires
- There are also 6.5-inch / 8.8-inch / 10.25-inch NBT dials (34 ON / 124 ON / 24 ON) in the catalog. Set according to the model table before installation
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Model + year + host system (must be NBT) must be confirmed by the customer
- Confirm the factory harness screen size (6.5 / 8.8 / 10.25 inches). Different sizes require different dialing codes
- Confirm which function it feeds: reversing view, front view, 360 panoramic, CarPlay or dashcam switching.
- Confirm whether a camera, extension cable and bracket are required.
- Confirm whether the customer's market has vehicle inspection requirements.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Always work with the power off, and protect the factory centre console and screen.

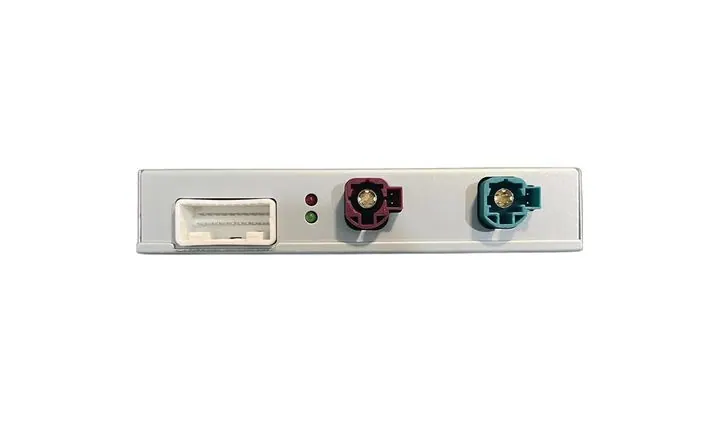

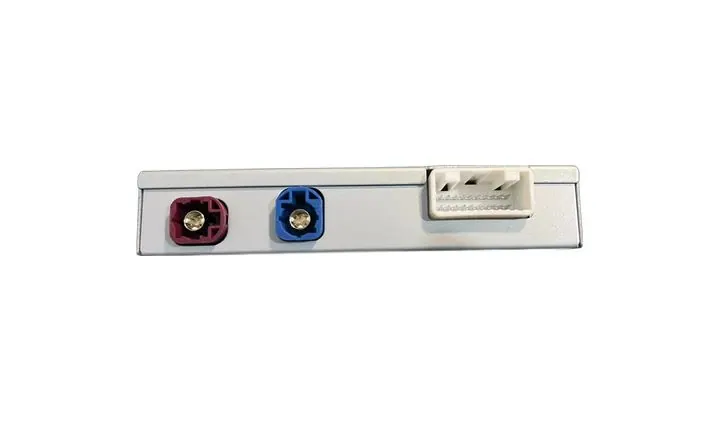

- Connect the factory head unit's LVDS plug to the decoder's LVDS-OUT, and plug the adapter harness back into the head unit.

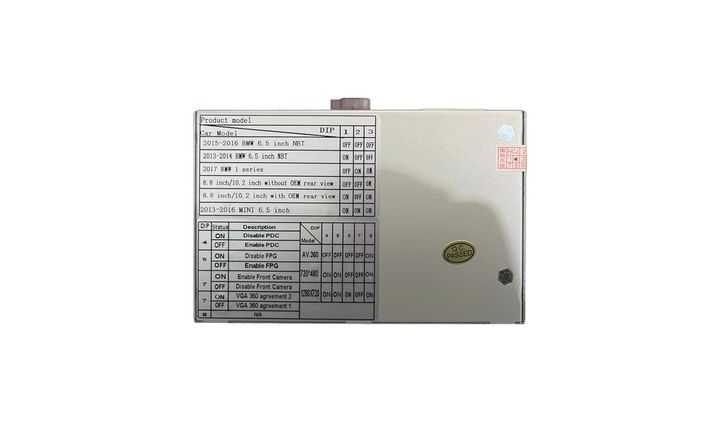

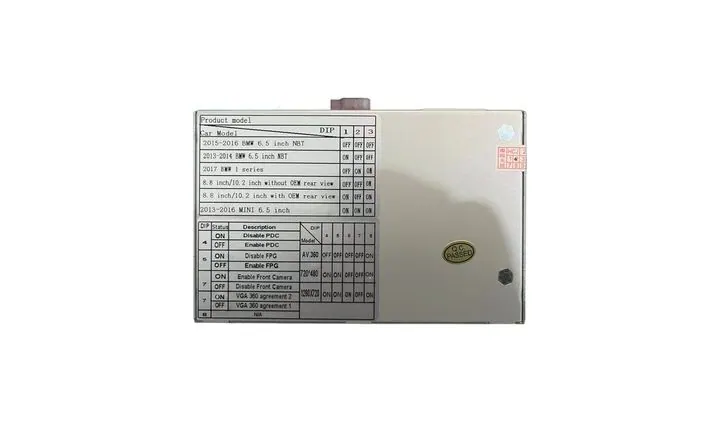

- The dialing code must be set according to the vehicle model table (6.5 inches, 8.8 / 10.25 inches are different), do not change it before installing the vehicle

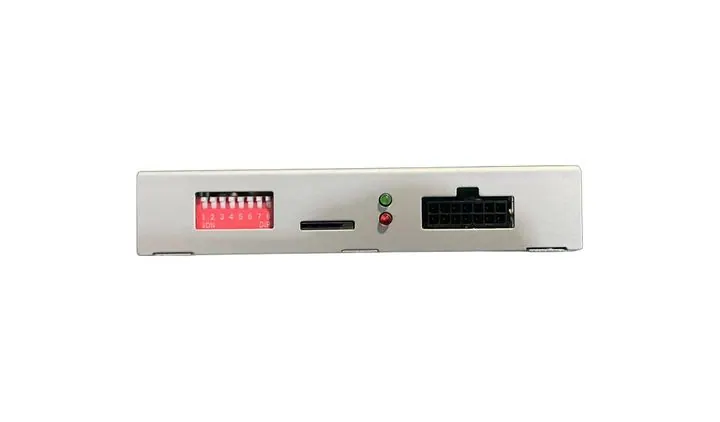

- Check the DIP switches and harness before applying power.
- After installation, test whether the factory harness's iDrive, reversing screen, factory radar, and iDrive knob are normal
- Keep the original parts so the vehicle can be restored and warranty work is straightforward.
