Main image and detail shots of the LRS-373 360.
Safety Systems · LRS
LRS-373 360

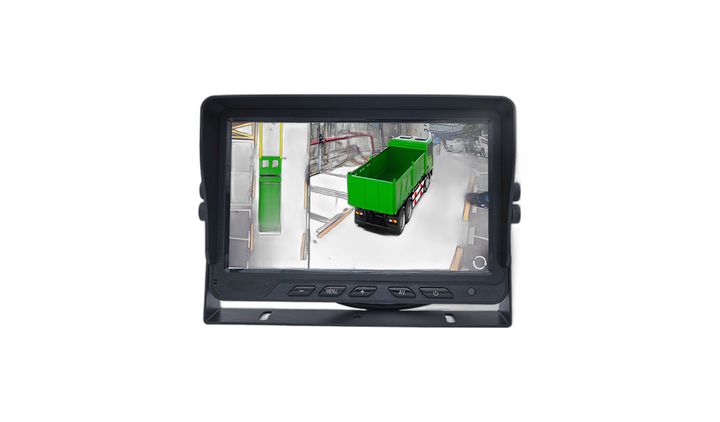

LRS-373 360 panoramic all-in-one machine (NEX-1070A basic version / NEX-1090A-PRO enhanced version / 7-inch screen /
LRS-373 360 panoramic all-in-one machine (NEX-1070A basic version / NEX-1090A-PRO enhanced version / 7-inch screen / 8-channel AHD)
Key features
- All-in-one machine: screen, 360 host, and AI algorithm are all in one shell, no need to install a separate host
- One less set of wires to run, one less installation space to occupy, and much less installation time than the "split host + monitor" solution

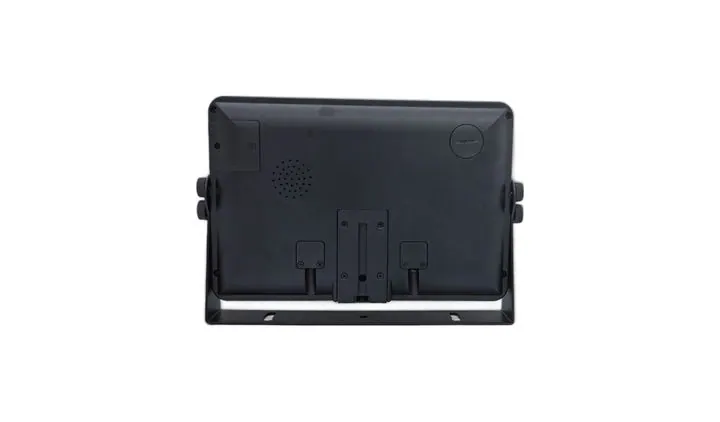

- Rear panel cast aluminum alloy + front panel ABS, good heat dissipation and strong
- Default 4-channel 360 panorama, hardware support expanded to 8-channel
- 7-inch IPS screen, 16:9, RGB888 signal
- Brightness 500cd, resolution 1024×600, viewing angle 80/80/80/70 (left/right/up/down)
- Built-in light sensor supports automatic adjustment of day/night brightness
- Optional 6-point capacitive touch (touch version)

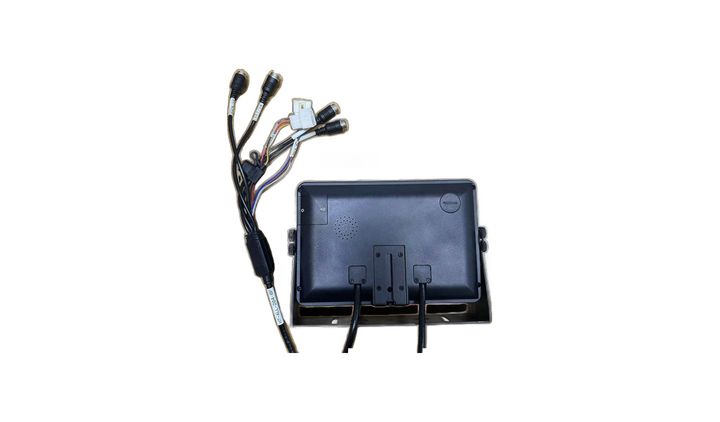

- 8 channels of 1080P/NAHD camera input (GX12-4P aviation male connector, DC10.8V regulated power supply); CH5-CH8 supports AHD 720P or 1080P
- Supports 1 channel CVBS video input to the display (can be connected to a standard machine or other CVBS camera, switched by the AV key on the panel)
- CVBS output 360 picture (GX12-4P aircraft carrier head, PAL/NTSC)
- Basic version (NEX-1070A): 360 surround view + built-in AI vision algorithm, supports 360-degree blind spot detection of the entire vehicle; the system comes with voice broadcast
- Enhanced version (NEX-1090A-PRO): Built-in high-end version of voice broadcast; reminds the driver through the trinity of in-car display (image) + blind spot BSD_LED indicator light (light) + intelligent voice broadcast horn (sound)
- PRO hardware supports radar function, but it requires expansion cables and radar host to achieve it
- Supports four-direction 16-probe ultrasonic radar, combined with vehicle speed sensor and 360 panoramic real-time communication
- Radar information is intuitively displayed on the 360 car model, supporting enhanced right blind spot (BSD) + lane change assist (LCA), radar and audible and visual siren linkage
- The radar host comes standard with 4 large vehicle-specific probes + 4 2.5-5 meter extension lines + 1 communication line; the detection distance is 2.5 meters in four directions, and the flameout is 0.3 meters
- Radar host: DC12-33V, maximum 0.2W, IP67; GX12-6P aviation male connector to 4 GX12-4P female connectors, up to 16 probes
- DC12-36V, maximum 3W, IP65; ≤105dB within 1 meter, 16 levels of volume adjustable; RS485 communication, up to 10 sounds
- High-speed CAN, ISO11898 compliant, low power management + bus wake-up
- Provide enterprise standard agreements; custom agreements will incur additional costs
- SD card storage: 8-512G
- Video format H265
- Video resolution: 360 panoramic video, 4 channels, one file 1920×1080P; V5-V8, each channel separate file 1280×720P
- File capacity: 360 panoramic files 1.25GB/hour; V5-V8 each channel about 0.6GB/hour
- The power consumption of the whole machine is 10-30W, the working voltage is DC12-36V; anti-surge, anti-reverse connection, low power protection, short circuit overload protection
- Host IP51, working -20~+70°C, storage -40~+80°C, shock resistance meets MIL-STD-810F
- Dimensions 177 × 122 × 26mm; host weight 0.65KG (complete machine 2.9-4KG, the difference is in the length of the wiring harness)

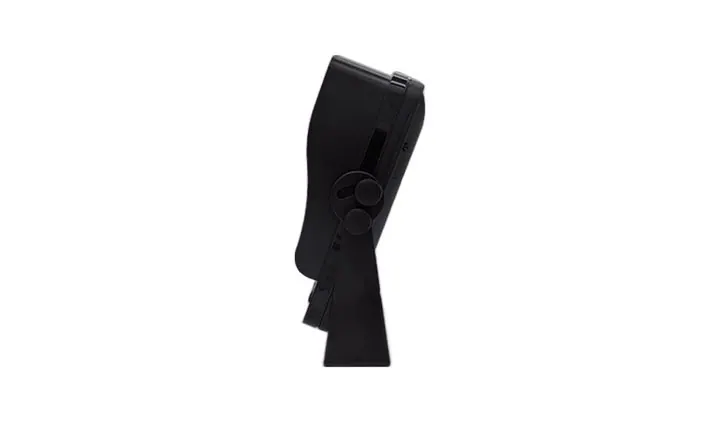

- Three installation methods: embedded (headrest frame), U-shaped bracket, butterfly bracket

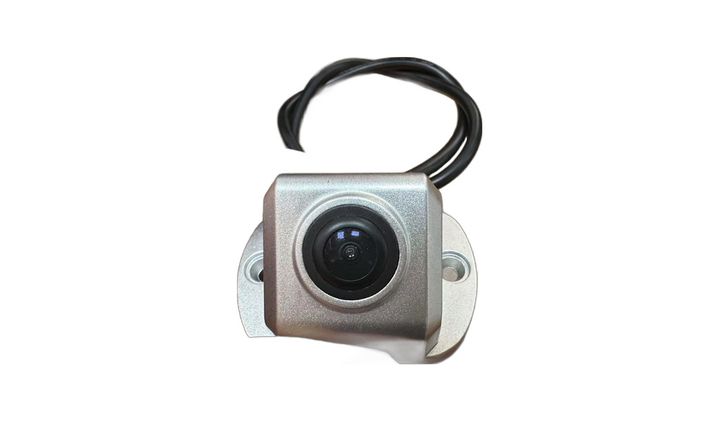

- Camera: DC8-16V, single 0.5-1W, AHD 1080P, 25FPS, IP68, 0.01Lux; horizontal 210°, vertical 126°, aperture 1.6, focal length 1.5mm
- Fits: Large vehicles, buses, trucks, special-purpose vehicles, special vehicles
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm version: Basic version (NEX-1070A, no radar / no CAN) or enhanced version (NEX-1090A-PRO, supports radar + CAN + high-end AI)
- Confirm the number of camera channels: the default is 4 channels 360, whether to expand to 8 channels (V5-V8)
- Confirm options: ultrasonic radar (including radar host), audible and visual alarm, touch screen
- Confirm whether CAN communication is required (PRO support; custom protocol is charged separately)
- Confirm SD card capacity (8-512G)
- Confirm voltage (DC 12–36V) and power source (ACC or permanent live).
- Confirm the installation method: embedded (headrest frame)/U-shaped bracket/butterfly bracket
- Confirm the calibration method (remote or on-site) and whether calibration mats and software are required.
- Confirm the length of the wiring harness (according to the vehicle length)
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- The four-channel stitch must be calibrated after installation; without calibration the image is misaligned and blind spots appear.
- The installation position and angle of the camera are according to the drawing, and the lens should be kept clean; mud and dirt will cause inaccurate splicing
- The basic version has a simpler algorithm and will have more false positives; for projects that are sensitive to false positives, it is recommended to choose the PRO enhanced version
- The radar host is optional: if you just buy an all-in-one machine, it will not automatically have radar function. You need to confirm the additional configuration according to the project
- The calibration site is flat and the light is uniform. After calibration, the parameters are saved and verified by road tests
- The wiring harness should be routed away from high-temperature parts and sharp sheet metal edges; the connectors should be tightly plugged in and fixed securely
- Regularly check the surface of the lens, radar probe, and audible and visual alarm. Mud and ice will affect the effect
