BMW EVO (HCJ-8801)

BMW EVO decoder (HCJ-8801 / factory screen with camera)

  • [Specialized for special vehicles] Before placing an order, you must confirm: model + year + whether the host system is EVO (ID5 / ID6). BMW host systems are divided into CCC / CIC / NBT / EVO / MGU. The entire error recognition system cannot be used

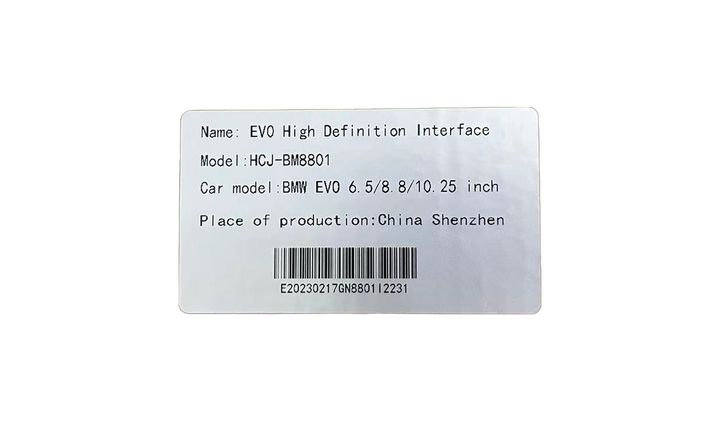

  • Dedicated decoder for BMW EVO system (ID5/ID6), model HCJ-8801
  • Covered models: 1 / 2 / 3 / 4 / 5 / 6 / 7 series, X1 / X3 / X4 / X5 / X6, M2 / M3 / M4 / M5 (18-20 models), and MINI EVO (18-20 models)
  • Display the reversing image/front view/360 panorama on the factory harness's iDrive screen without changing the screen

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

BMW EVO (HCJ-8801) product features

  • [Specialized for special vehicles] Before placing an order, you must confirm: model + year + whether the host system is EVO (ID5 / ID6). BMW host systems are divided into CCC / CIC / NBT / EVO / MGU. The entire error recognition system cannot be used
  • Dedicated decoder for BMW EVO system (ID5/ID6), model HCJ-8801
  • Covered models: 1 / 2 / 3 / 4 / 5 / 6 / 7 series, X1 / X3 / X4 / X5 / X6, M2 / M3 / M4 / M5 (18-20 models), and MINI EVO (18-20 models)
  • Display the reversing image/front view/360 panorama on the factory harness's iDrive screen without changing the screen
  • Supports factory touch screen operation (for versions that do not support touch, choose the non-touch version)
  • Retain the factory harness’s iDrive system and all factory functions
  • Losslessly transfer the factory harness LVDS and power wiring harness without breaking the wires
  • Supports recorder switching (press and hold the factory harness button after setting according to the manual to enter)

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

  • Model + year + host system (must be EVO / ID5 / ID6) must be confirmed by the customer
  • Confirm the factory harness screen size (6.5 / 8.8 / 10.25 inches) and whether it has touch. Touch and non-touch are different versions
  • Confirm which function it feeds: reversing view, front view, 360 panoramic, CarPlay or dashcam switching.
  • Confirm whether a camera, extension cable and bracket are required.
  • Confirm whether the customer's market has vehicle inspection requirements.
  • Confirm quantity, packaging and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

  • Always work with the power off, and protect the factory centre console and screen.

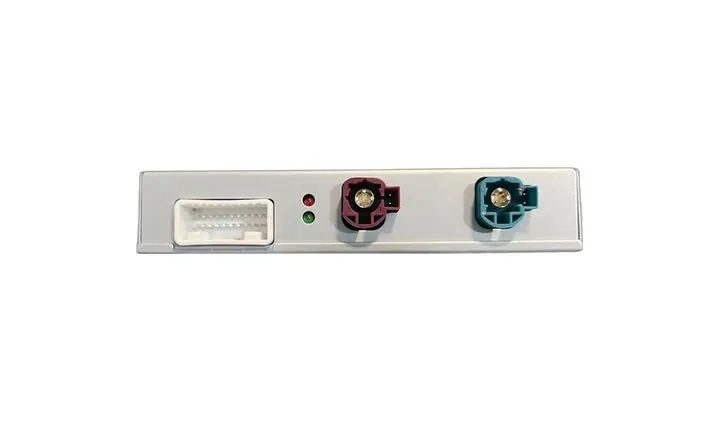

  • Connect the factory head unit's LVDS plug to the decoder's LVDS-OUT, and plug the adapter harness back into the head unit.

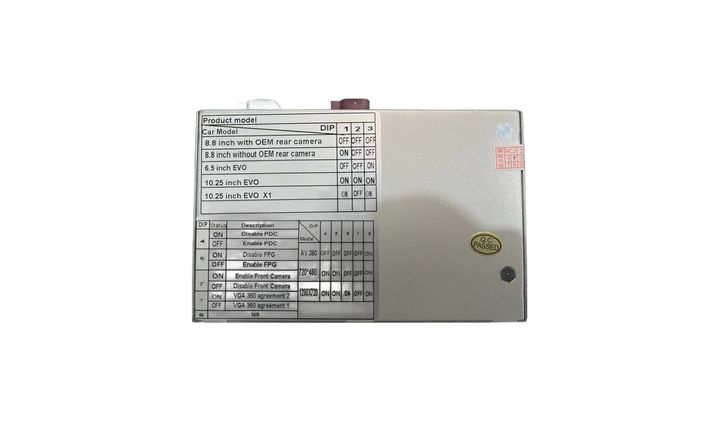

  • Check the DIP switches and harness before applying power.
  • After installation, test whether the factory harness's iDrive, reversing screen, factory radar, and iDrive knob are normal
  • Keep the original parts so the vehicle can be restored and warranty work is straightforward.
  • Route and secure the cable clear of hot surfaces and airbag zones.
