Audi A / Q Decoder

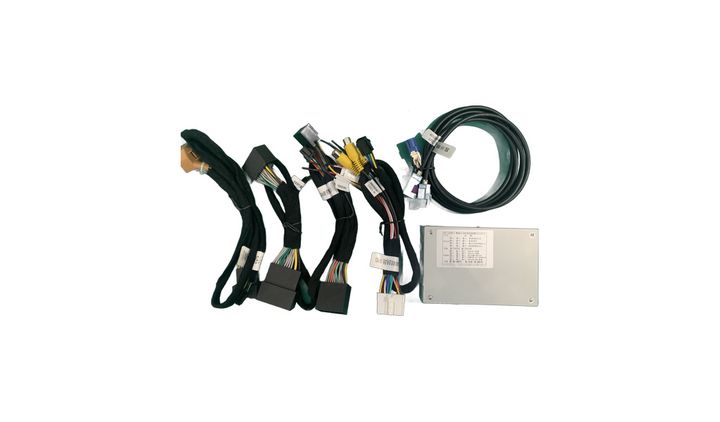

Audi A/Q series decoding module (factory screen plus camera)

Key features

[Specialized for special cars] Before placing an order, you must confirm: model + year + factory screen (size/system: 2G/3G/MIB). The screens and hosts of the Audi A and Q series are different for each model year and must be checked one by one
Audi A series / Q series factory screen decoding module, selected according to system
Covered models (by system): 09-16 A4/A5/Q5 with navigation, 10-12 A6L/Q7, 13-16 A6L/A7/A8L, 13-16 Q7, A1/Q3 with navigation, Q3 simulation screen, 20-21 A4/A5, 21 A3, 21 Q5L, 22/23 Q3
Display the reversing image/front view/360 panorama on the factory harness screen without changing the screen
Supports factory knob, touch, and steering wheel button operations
Supports factory radar, reversing track, gear position, turn signal, vehicle speed, door, P key and other information (according to host model)

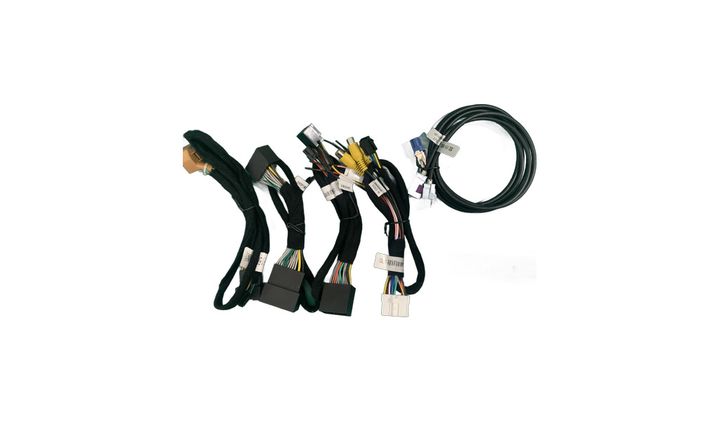

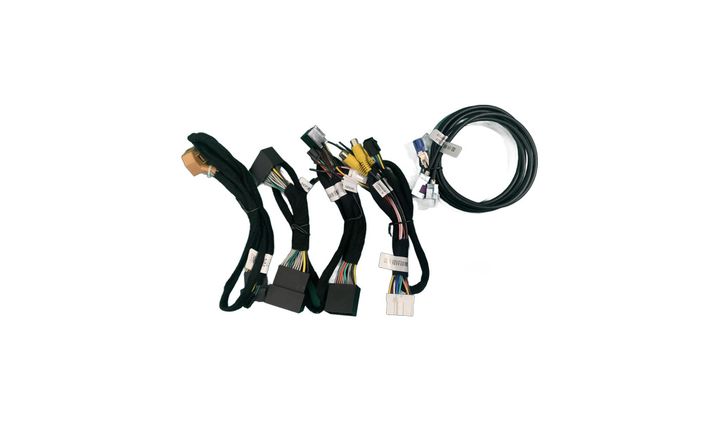

Losslessly transfer the factory harness LVDS and power wiring harness without breaking the wires

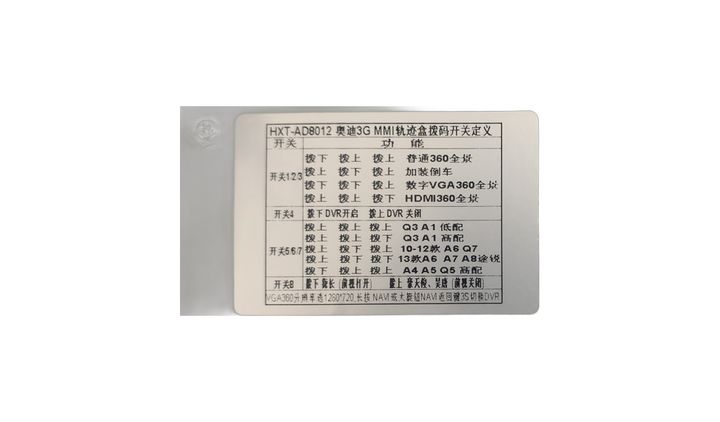

The decoder all-in-one machine (M20/M30) of the same series distinguishes different models in the wire package and dial code, and is set according to the model table before installation

Points to confirm before production so the unit arrives ready to fit.

Model + year + factory screen (size / system / host model) must be confirmed by the customer
Audi needs to distinguish 2G / 3G / 3G+ / RMC / MIB / MIB3; A4 / A5 / Q5 also needs to distinguish whether it has navigation, 7-inch or 8-inch screen
Confirm the function to be accessed: reversing image / front view / 360 panorama / recorder switching
Confirm the wire package and dial code (M20 / M30 series are specified according to the model table). Customers should not change the dial code before installing the car
Confirm whether a camera, extension cable and bracket are required.
Confirm whether the customer's market has vehicle inspection requirements.
Special vehicles for small quantities, ready to prepare all wires at once after confirmation
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Always work with the power off, and protect the factory interior trim.
Most Audi central controls have a snap-on structure. Follow the instruction manual to pry the panel. Do not pry hard
Connect the factory head unit's LVDS plug to the decoder's LVDS-OUT, and plug the adapter harness back into the head unit.
Check the dialing code and wiring harness before powering on; for models that support the recorder, turn the dialing code 6 to ON and then press and hold the phone hangup button on the steering wheel for 2 seconds to enter
After installation, test whether the reversing screen, factory MMI, audio, air conditioning, and steering wheel buttons are normal
Keep the original parts so the vehicle can be restored and warranty work is straightforward.
