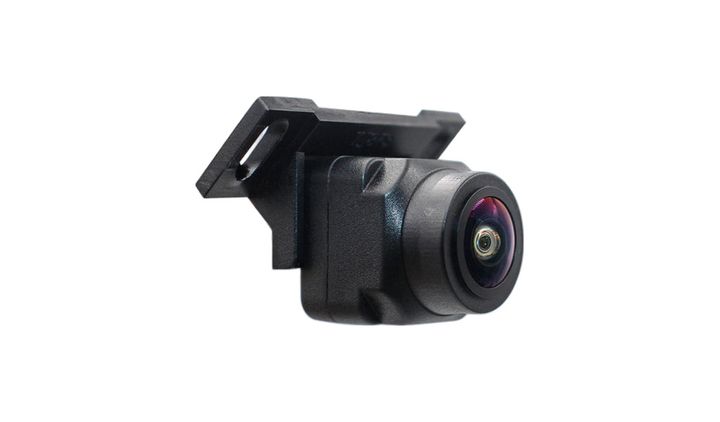

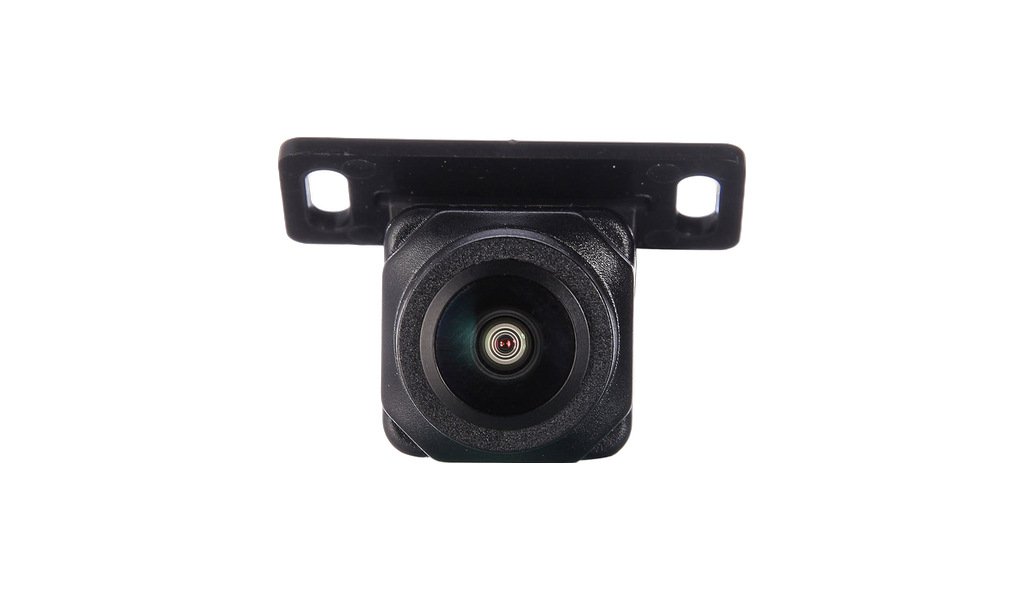

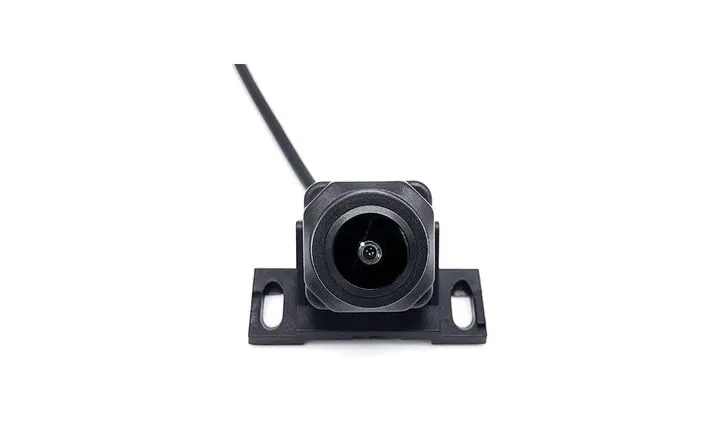

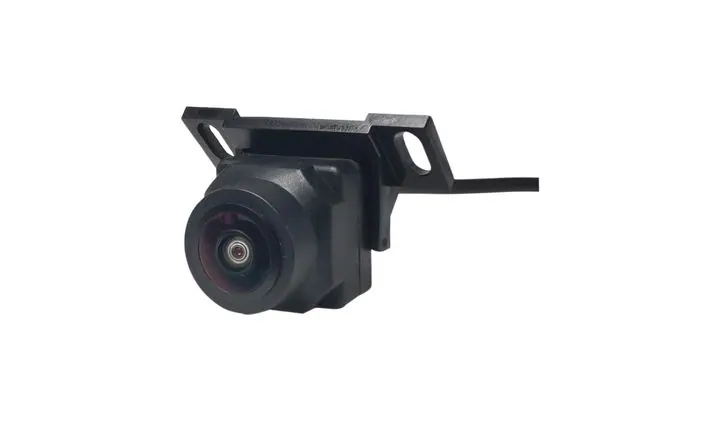

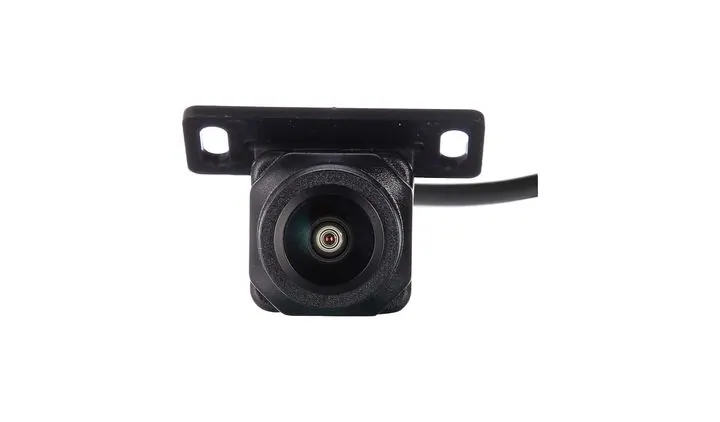

JPC-36 panoramic front-view car camera (360 panoramic / fisheye module / AHD 1080P)

Name: JPC-36 — JPC-36 panoramic front-view car camera (360 panoramic / fisheye module / AHD 1080P)
Brand: JFA-CAM

Get a Quote for JPC-36 Certificates & documents

Send the vehicle type, quantity and market — we reply with a configuration and price within 24 hours.

Key features

Surround view (360) front / fisheye camera module for car bird-view systems
Star-light night vision module: GC2053 1/2.9" or GC2083 1/3" CMOS
High performance ISP processor with AHD1080P / 720P / CVBS coaxial HD output - clear and detailed image
External switching between AHD1080P / AHD720P / CVBS
Fisheye correction supported, up to 180 degree correction (H1-2053 module)
Min. illumination 0.001Lux@(F1.2, AGC ON), 0LUX with IR
Adaptive digital noise reduction: 3D-DNR and 2D-DNR
Supports image mirror / flip, with external control for mirror and colour-to-B/W
Supports OSD reversing assist lines, reversing lines can be customised
PAL / NTSC; internal sync, auto shutter, auto day / night
Frame rate 1080P / 720P @25fps or @30fps
Module size only 17 x 17 mm - fits into small 360 housings
Working temperature -20°C to +80°C, humidity below 90%
Applications: 360 surround view, streaming media rear view, truck monitoring, reversing
Typical use: the front camera of a 360 bird-view kit

Ordering notes

Points to confirm before production so the unit arrives ready to fit.

Confirm the module plan: GC2053 (1/2.9") or GC2083 (1/3")
Confirm signal type: AHD1080P/AHD720P/CVBS, and whether external switching is required
Confirm whether fisheye correction (up to 180°) is required and whether the supporting 360 host supports it
Confirm the lens angle and whether 1_angle CHART calibration is needed
Confirm whether the reversing auxiliary line is needed and whether it needs to be custom
Confirm the housing type (front view housing/universal housing) and opening size
Confirm format PAL / NTSC

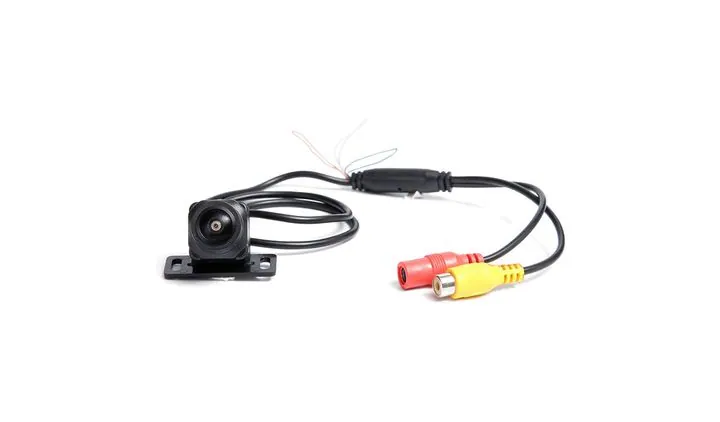

Confirm the connector: 4-pin aviation connector/RCA/BMW connector; confirm the wire length
Confirm the voltage (module DC5-12V / DC5-18V, vehicle 12V, 24V models need to be confirmed)
Confirm quantity, packaging and printing requirements in advance.

Installation & usage

Voltage, wiring, sealing and maintenance guidance for the installer.

Before panoramic splicing, calibration must be done according to the requirements of the 360 host (debugging cloth/calibration CHART), otherwise the splicing will be misaligned
The front-view camera should be installed in a centered and horizontal position, and the lens should not be blocked by grilles or license plates
Confirm the voltage before wiring, and do not connect the red and black power cords reversely; the AHD camera must be equipped with an AHD host
Keep the surface of the lens clean and wipe it clean before calibration and debugging, otherwise it will affect the splicing effect
Route the cable clear of hot surfaces and sharp sheet-metal edges, and do not pull the tail cable tight.
Make the joints waterproof, as the front and bumper areas of the car are easily washed away by water
After installation, conduct a day and night road test to confirm the picture brightness, stitching and night vision effects
