JPC-03 18.5mm snap-in car camera (supply model BRC-100 / drilled plug-in two-in-one)

Key features

Supplier model BRC-100; drilling or hanging 2-in-1 installation
Can be used as a lip mount (plug-in) or flush mount (snap-in) camera with the same body
170 degree wide viewing angle
Selectable parking assist lines and selectable forward facing / reverse facing image
Ultra-small and compact design; durable aluminium / zinc alloy body
Universal fitting for all cars
Signal options: CVBS 420/480 TV Lines, AHD 720P, AHD 1080P
Sensor options: HD CCD / CMOS, or star-light night vision module (GC2053 / GC2083)
PAL or NTSC signal system; DC 12V & 24V
Waterproof IP69K with sealed lens ring

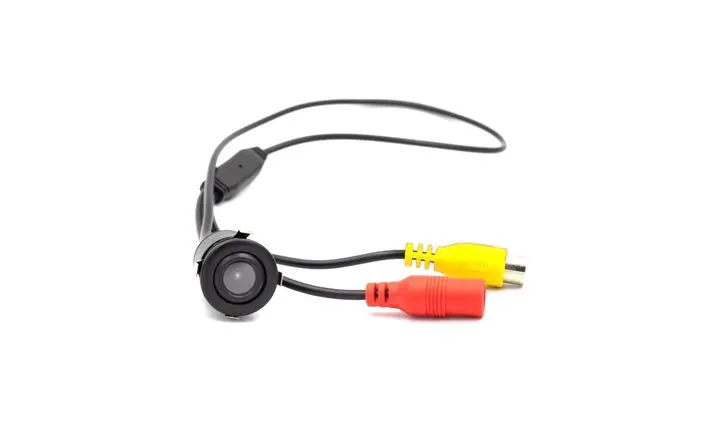

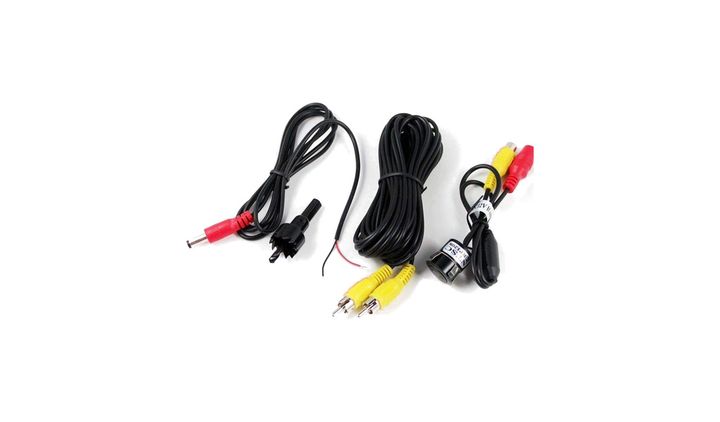

Package: 1 x camera (drilling parts + hanging parts), 1 x 1 m DC power cable, 1 x 6 m AV cable, 1 x hole saw
Standard tail cable 5 copper + 5 steel; BMW plug and pure-copper cable optional

Points to confirm before production so the unit arrives ready to fit.

Confirm the installation method: drilling and plugging in or plug-in. This model comes with both accessories, but the main method must be stated in advance
Confirm whether the opening size 18.5mm matches the model
Confirm the signal type: CVBS, AHD 720P or AHD 1080P. An AHD camera must be paired with an AHD host.
Confirm the chipset — CVBS: 1058 / 4089 / 7430 / 7440 / 7080; AHD: 2053 / 528 / 536D / 536 / 4109.
Confirm the lens angle: the specification bookmarks 170°, the standard horizontal viewing angle is about 108° (110° specification), confirm before placing an order
Confirm whether reversing auxiliary line and forward/mirror image switching are needed
Confirm the connector: RCA, 4-pin aviation or BMW type.
Confirm 12V or 24V, plus tail cable construction and length.
Confirm colour, accessories, packaging type and printing.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.

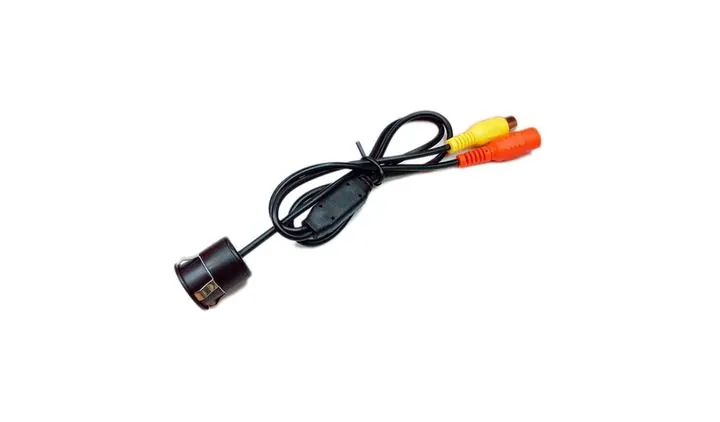

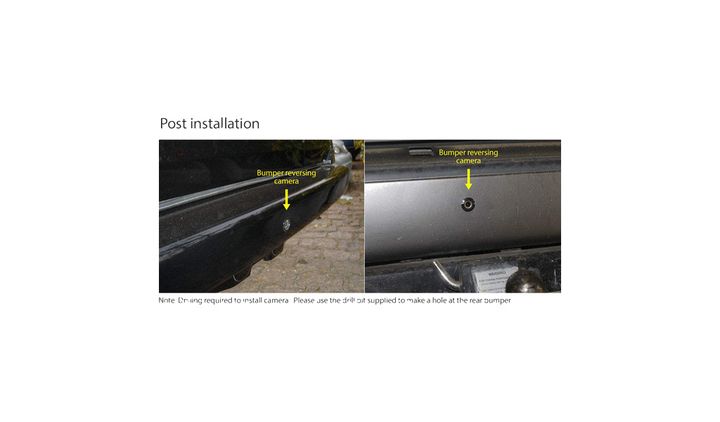

When drilling and installing, first confirm the hole diameter and sheet metal thickness, and the sealing ring must be pressed tightly
When installing the external plug-in, clean the adhesive surface first and tighten the screws to avoid displacement due to driving vibration
Route the cable clear of hot surfaces and sharp sheet-metal edges, and do not pull the tail cable tight.
Make the joints waterproof, as the bumper and license plate are easily washed away by water
Clean the lens with a soft cloth — never alcohol or anything abrasive.
AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
