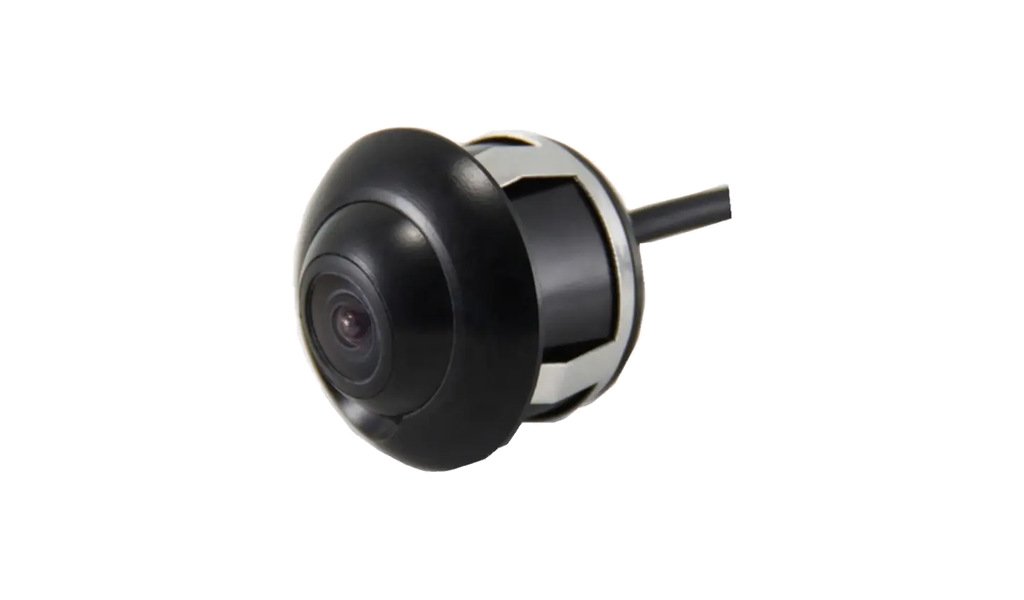

JPC-33 circular snap-in car camera (round housing/round hole snap-in)

Key features

Round flush mount camera - drills a clean round hole in the bumper or garnish
Round body rotates freely in the hole, so the angle is easy to set before locking
The neatest look of the flush-mount family: almost no visible frame
Universal for all cars; rear, front or side mounting
Signal options: CVBS 420/480 TV Lines, AHD 720P, AHD 1080P
Sensor options: HD CCD / CMOS; star-light night vision module (GC2053 / GC2083)
PAL or NTSC signal system; mirror image and reversing grid selectable
Waterproof IP69K housing with sealed lens ring
DC 12V standard, 24V optional; circuit protection function

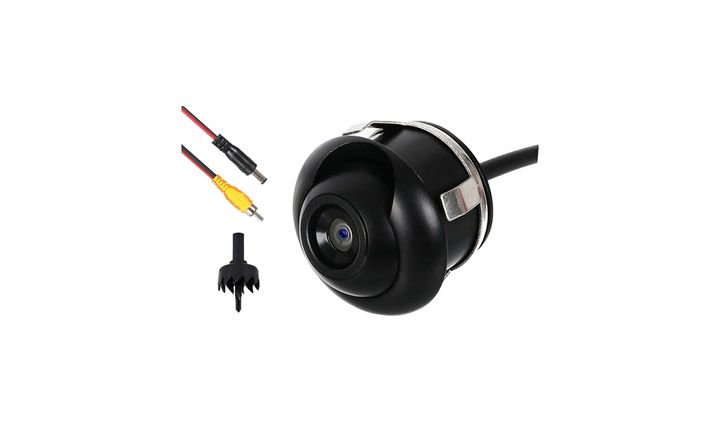

Package: 1 x camera, 1 x 1 m DC power cable, 1 x 6 m AV cable, 1 x hole saw
Standard tail cable 5 copper + 5 steel; BMW plug and pure-copper cable optional

Points to confirm before production so the unit arrives ready to fit.

Confirm whether the hole size and housing diameter match the vehicle model
Confirm the signal type: CVBS, AHD 720P or AHD 1080P. An AHD camera must be paired with an AHD host.
Confirm the chipset — CVBS: 1058 / 4089 / 7430 / 7440 / 7080; AHD: 2053 / 528 / 536D / 536 / 4109.
Confirm lens angle. Around 108° horizontal is standard (110° nominal); 135° / 150° / 170° wide-angle versions are optional.
Confirm whether LED illumination and a switch-panel tail cable are required.
Confirm PAL or NTSC, whether parking guide lines are needed, and normal or mirrored image.
Confirm connector and voltage 12V / 24V.
Confirm color (black/silver/white) and packaging and silk screen requirements
Confirm quantity, packaging and printing requirements in advance.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.
Before opening the hole, confirm the hole diameter and sheet metal thickness; after snapping in, the sealing ring must be pressed tightly to prevent water leakage
Before locking the round shell, adjust it to the best angle and then tighten it to avoid repeated disassembly and assembly
Route the cable clear of hot surfaces and sharp sheet-metal edges, and do not pull the tail cable tight.
Seal the connector properly; bumper positions take a lot of water spray.
Clean the lens with a soft cloth — never alcohol or anything abrasive.
AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
