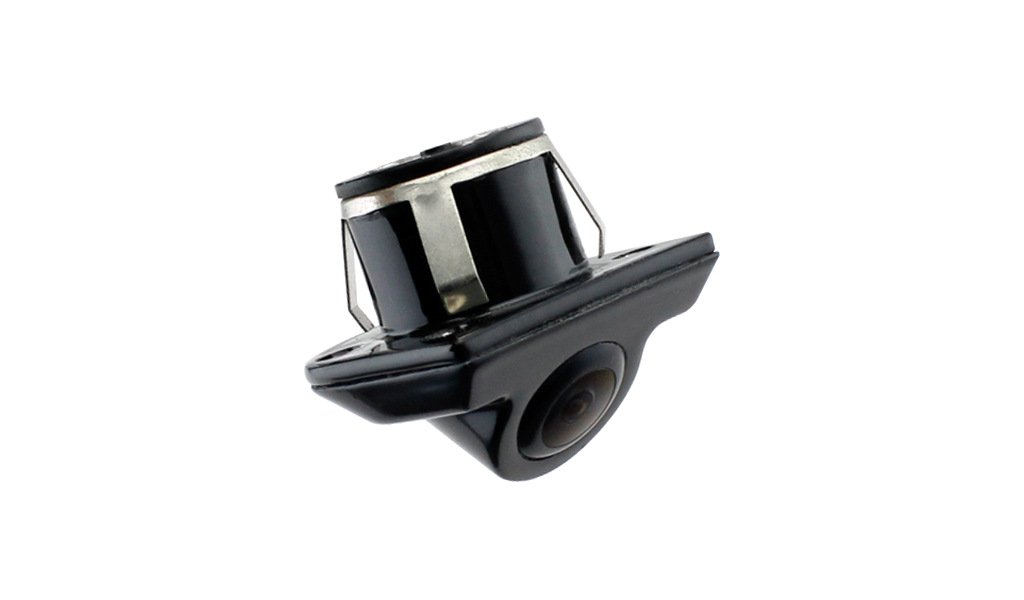

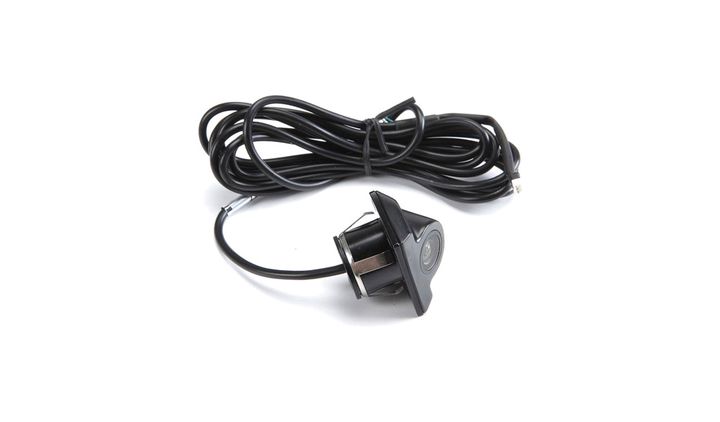

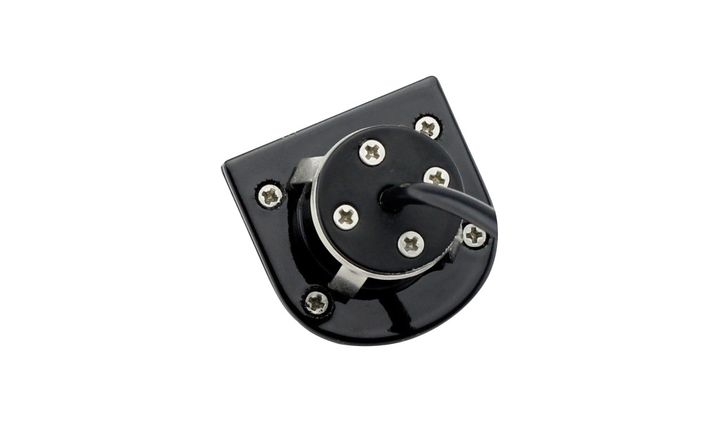

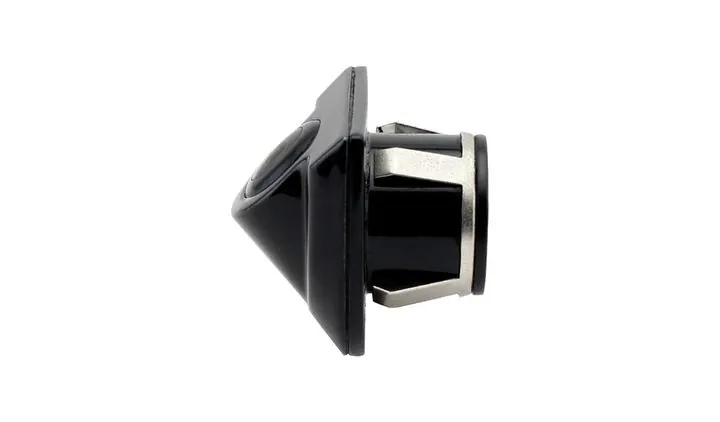

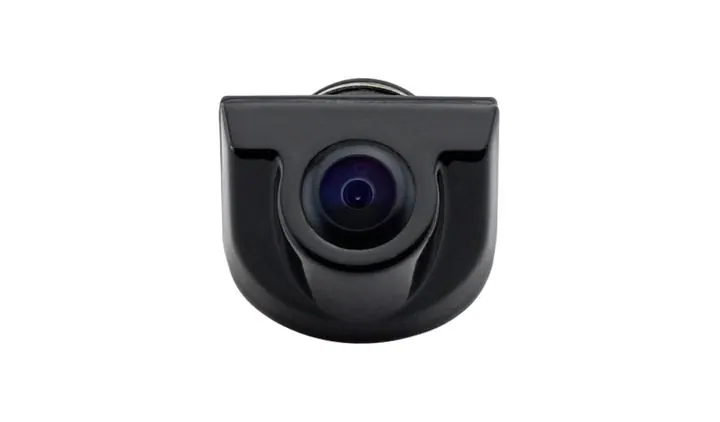

Main image and detail shots of the JPC-32.
Aftermarket · JPC
JPC-32
JPC-32 small dome iron snap-in car camera (iron snap-in small dome)
Key features
- Iron clip gives a stronger, more secure hold than plastic clips
- Flush mounted: the lens sits almost level with the bumper for a tidy look
- Universal for all cars; rear, front or side mounting
- Signal options: CVBS 420/480 TV Lines, AHD 720P, AHD 1080P
- Sensor options: HD CCD / CMOS; star-light night vision module (GC2053 / GC2083)
- PAL or NTSC signal system; mirror image and reversing grid selectable
- Waterproof IP69K housing with sealed lens ring
- DC 12V standard, 24V optional; circuit protection function
- Package: 1 x camera, 1 x 1 m DC power cable, 1 x 6 m AV cable, 1 x hole saw
- Standard tail cable 5 copper + 5 steel; BMW plug and pure-copper cable optional
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm whether the opening size of the iron clip (commonly 18.5mm) and sheet metal thickness match the vehicle model
- Confirm the signal type: CVBS, AHD 720P or AHD 1080P. An AHD camera must be paired with an AHD host.
- Confirm the chipset — CVBS: 1058 / 4089 / 7430 / 7440 / 7080; AHD: 2053 / 528 / 536D / 536 / 4109.
- Confirm lens angle. Around 108° horizontal is standard (110° nominal); 135° / 150° / 170° wide-angle versions are optional.
- Confirm whether LED illumination and a switch-panel tail cable are required.
- Confirm PAL or NTSC, whether parking guide lines are needed, and normal or mirrored image.
- Confirm connector and voltage 12V / 24V.
- Confirm colour, accessories (hole saw), packaging and printing requirements.
- Confirm quantity, packaging and printing requirements in advance.
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.
- Before opening the hole, confirm the hole diameter and sheet metal thickness; after the iron clip is inserted, make sure it is pressed tightly and does not shake
- Pay attention to anti-rust when using iron clips for a long time. Apply a small amount of anti-rust oil during installation
- Route the cable clear of hot surfaces and sharp sheet-metal edges, and do not pull the tail cable tight.
- Seal the connector properly; bumper positions take a lot of water spray.
- Clean the lens with a soft cloth — never alcohol or anything abrasive.
- AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
