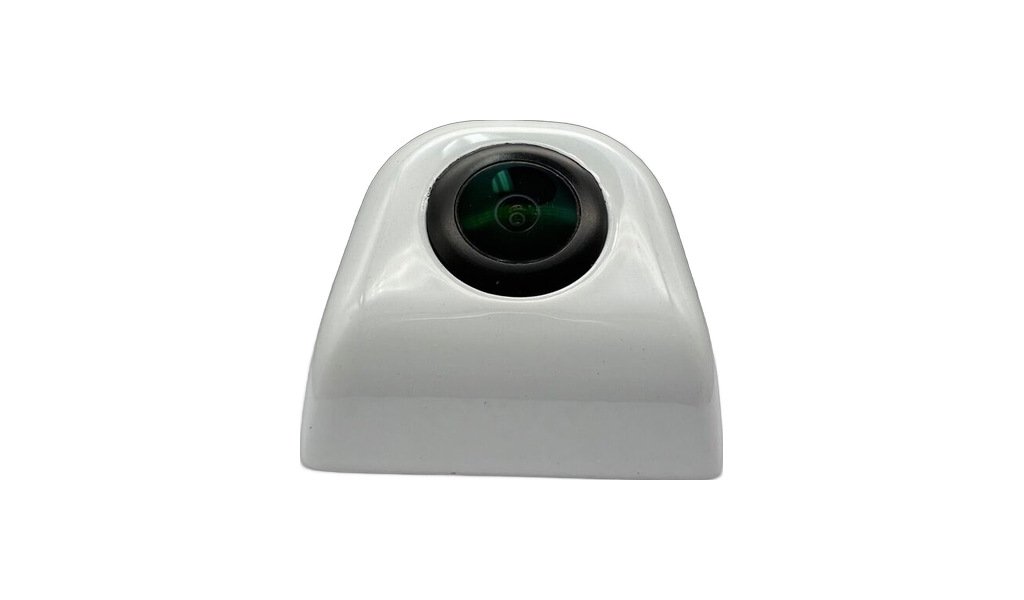

JPC-16W white Korean style (Korean screw) car camera

Key features

White finish matches white bumpers and light-coloured body panels

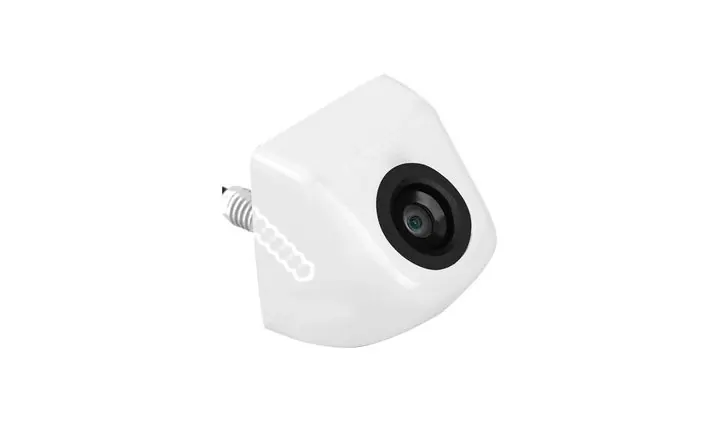

Screw barrel design with lock nut: the angle can be set and stays put
Sturdy metal barrel - stronger than plastic small-cap shells, suits trucks and vans
Supplier standard: BMW plug tail cable for the Korean iron-triangle range
Universal fitting for all cars; rear, front or side mounting
Signal options: CVBS 420/480 TV Lines, AHD 720P, AHD 1080P
Sensor options: HD CCD / CMOS; star-light night vision module (GC2053 / GC2083)
PAL or NTSC signal system; mirror image and reversing grid selectable
Waterproof IP69K housing with sealed lens ring
DC 12V standard, 24V optional; circuit protection function
Package: 1 x camera, 1 x DC power cable, 1 x 6 m AV cable, 1 x hole saw

Points to confirm before production so the unit arrives ready to fit.

Confirm color: This model is white, there are also black JPC-16B, silver JPC-16S
Confirm the screw diameter and cut-out size match the vehicle.
Confirm the signal type: CVBS, AHD 720P or AHD 1080P. An AHD camera must be paired with an AHD host.
Confirm the chipset — CVBS: 1058 / 4089 / 7430 / 7440 / 7080; AHD: 2053 / 528 / 536D / 536 / 4109.
Confirm lens angle. Around 108° horizontal is standard (110° nominal); 135° / 150° / 170° wide-angle versions are optional.
Confirm whether LED illumination is required — choose the JPC-16LED if so.
Confirm PAL or NTSC, whether parking guide lines are needed, and normal or mirrored image.
Confirm the connector (BMW type standard) and voltage 12V / 24V, plus tail cable construction and length.
Confirm the white color number, packaging and silk screen requirements

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.
Fit the seal before tightening the nut on a threaded mount, then confirm no water seeps in.
The white shell is easy to get dirty. Wear gloves when installing to avoid leaving oil stains
Route the cable clear of hot surfaces and sharp sheet-metal edges, and do not pull the tail cable tight.
The connector (BMW head/RCA) should be waterproof, the bumper position is easy to be washed by water
Clean the lens and housing with a soft cloth, do not wipe with alcohol or hard objects
AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
