JPC-16LED Korean-style screw with light car camera (Korean-style screw + LED fill light)

Key features

Korean style large screw-mount camera with built-in LED illumination
Sturdy metal screw barrel plus LED lamps: strong mount and good night picture

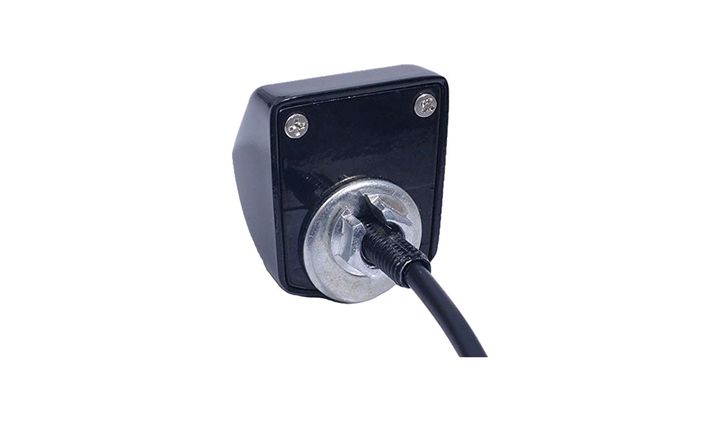

Screw barrel design with lock nut: the angle can be set and stays put
LED lamps light up the area behind the car in unlit car parks
Supplier standard: BMW plug tail cable for the Korean iron-triangle range
Universal fitting for all cars; rear, front or side mounting
Signal options: CVBS 420/480 TV Lines, AHD 720P, AHD 1080P
Sensor options: HD CCD / CMOS; star-light night vision module (GC2053 / GC2083)
PAL or NTSC signal system; mirror image and reversing grid selectable
Waterproof IP69K housing with sealed lens ring
DC 12V standard, 24V optional; circuit protection function
Optional: non-heating switch board tail cable and single / dual / triple LED control

Points to confirm before production so the unit arrives ready to fit.

Confirm color (black/silver/white) and number of LED lights

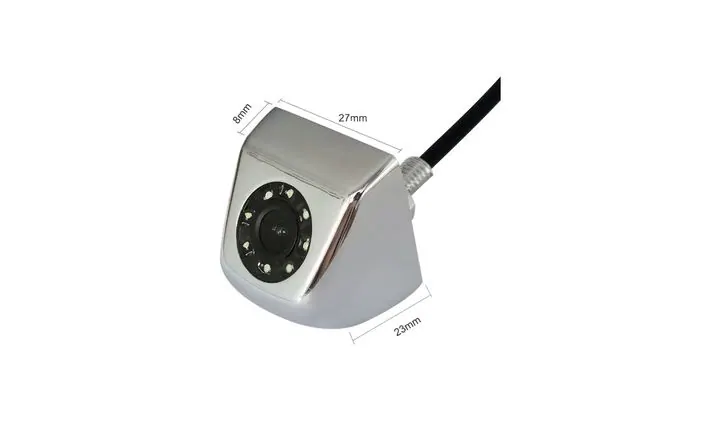

Confirm the screw diameter and cut-out size match the vehicle.
Confirm the signal type: CVBS, AHD 720P or AHD 1080P. An AHD camera must be paired with an AHD host.
Confirm the chipset — CVBS: 1058 / 4089 / 7430 / 7440 / 7080; AHD: 2053 / 528 / 536D / 536 / 4109.
Confirm lens angle. Around 108° horizontal is standard (110° nominal); 135° / 150° / 170° wide-angle versions are optional.
Confirm the LED control mode (always on/reversing trigger/switch board) and whether a non-heating switch board tail wire is required
Confirm PAL or NTSC, whether parking guide lines are needed, and normal or mirrored image.

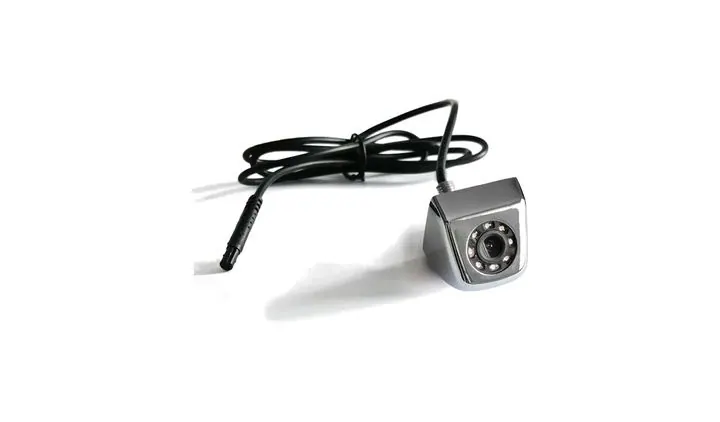

Confirm the connector (BMW type standard) and voltage 12V / 24V, plus tail cable construction and length.
Confirm packaging form and silk screen requirements

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.
Fit the seal before tightening the nut on a threaded mount, then confirm no water seeps in.
The LED light panel is a thin plate structure. Do not squeeze or bump it during installation
After adjusting the angle, tighten the lock nut to prevent the lens from shifting due to driving vibrations
Seal the connector properly; bumper positions take a lot of water spray.
Clean the lens and LED board with a soft cloth — never alcohol or anything abrasive.
AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
