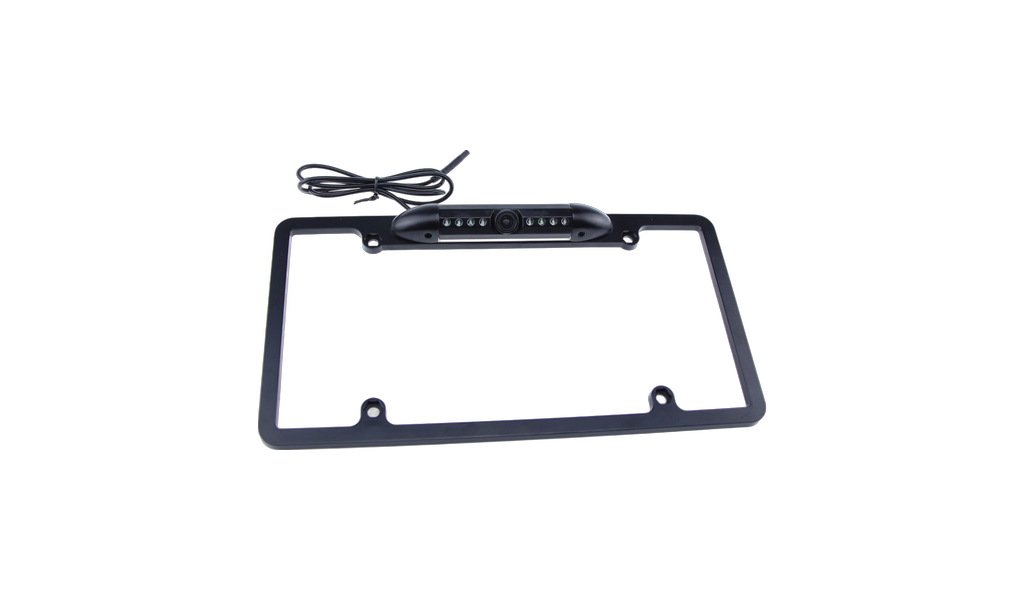

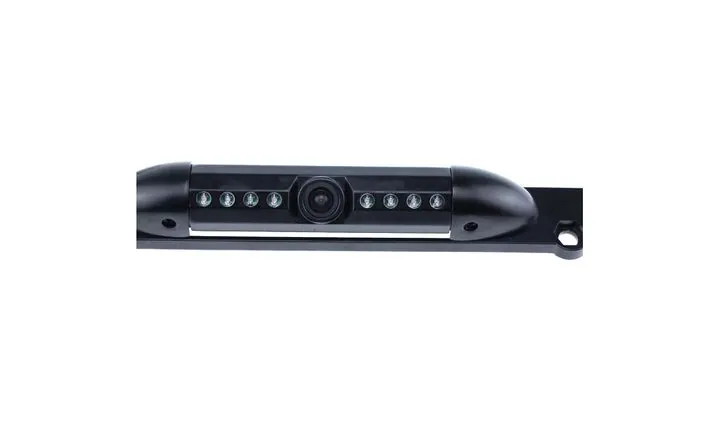

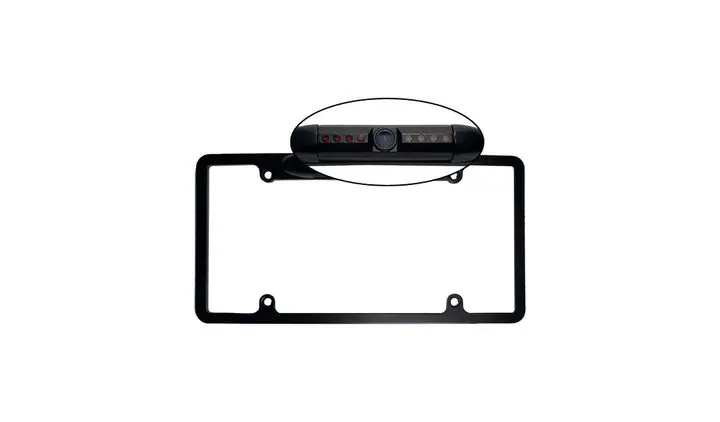

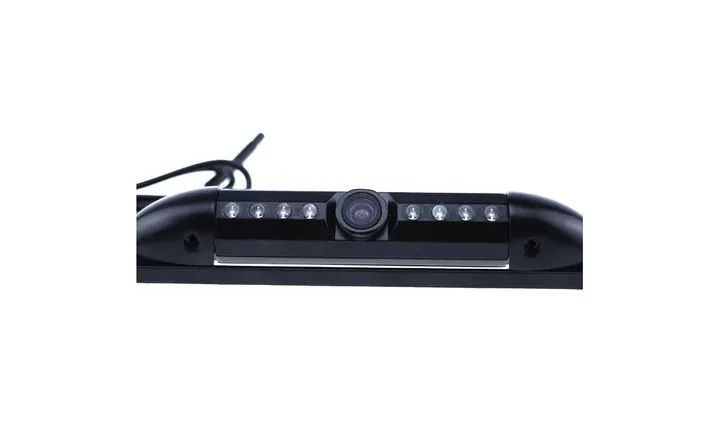

Main image and detail shots of the JPC-12.
Aftermarket · JPC
JPC-12
JPC-12 American license plate frame camera (with IR night vision/149° viewing angle)
Key features
- Backup camera for the US style licence plate frame, front / rear view
- Universal for pickup trucks, cars and SUVs
- Perfect 149 degree viewing angle
- IR night vision: clear picture in dark car parks and at night
- Mirror function (mirror image) supported
- Waterproof housing with sealed lens ring
- Hidden-type design: sits behind the licence plate, tidy factory look
- Signal options: CVBS 420/480 TV Lines, AHD 720P, AHD 1080P
- Sensor options: HD CCD / CMOS; star-light night vision module (GC2053 / GC2083)
- PAL or NTSC signal system
- DC 12V standard, 24V optional; circuit protection function
- Package: 1 x camera, 1 x 1 m DC power cable, 1 x 6 m AV cable, 1 x user manual
- Standard tail cable 5 copper + 5 steel; BMW plug and pure-copper cable optional
Ordering notes
Points to confirm before production so the unit arrives ready to fit.
- Confirm the specifications of the license plate frame (American frame) and whether the fixing holes match the model license plate area
- Confirm viewing angle: This data is 149°, if you need 170° or other angles, please specify in advance
- Confirm the signal type: CVBS, AHD 720P or AHD 1080P. An AHD camera must be paired with an AHD host.
- Confirm the chipset — CVBS: 1058 / 4089 / 7430 / 7440 / 7080; AHD: 2053 / 528 / 536D / 536 / 4109.
- Confirm whether the reversing scale line and forward/mirror image switching are needed
- Confirm the connector: RCA, 4-pin aviation or BMW type.
- Confirm voltage 12V or 24V; confirm wire length
- Confirm color, packaging (color box / neutral box / OEM) and instruction language
- Quantity, silk screen printing and LOGO are required to be stated in advance
Installation & usage
Voltage, wiring, sealing and maintenance guidance for the installer.
- Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.
- When installing, fix the license plate frame first and then adjust the lens angle to avoid displacement caused by driving vibration
- Do not bump the IR lamp bead panel, and avoid squeezing the lamp panel during installation
- Route the cable clear of hot surfaces and sharp sheet-metal edges, and do not pull the tail cable tight.
- The joints should be waterproof so that the license plate position is easily washed away by water in rainy days
- Clean the lens and LED board with a soft cloth — never alcohol or anything abrasive.
- AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
