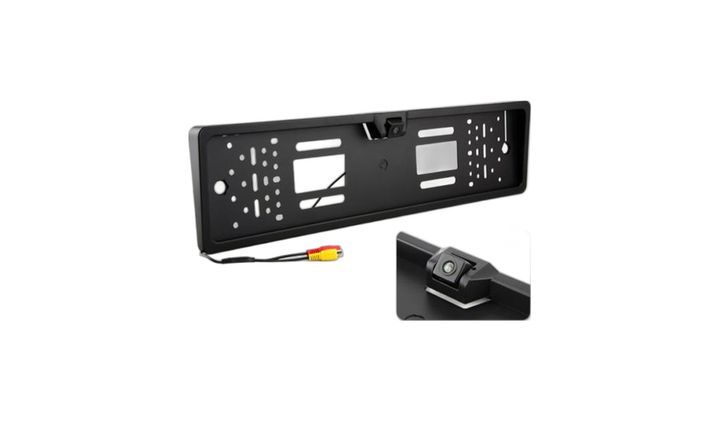

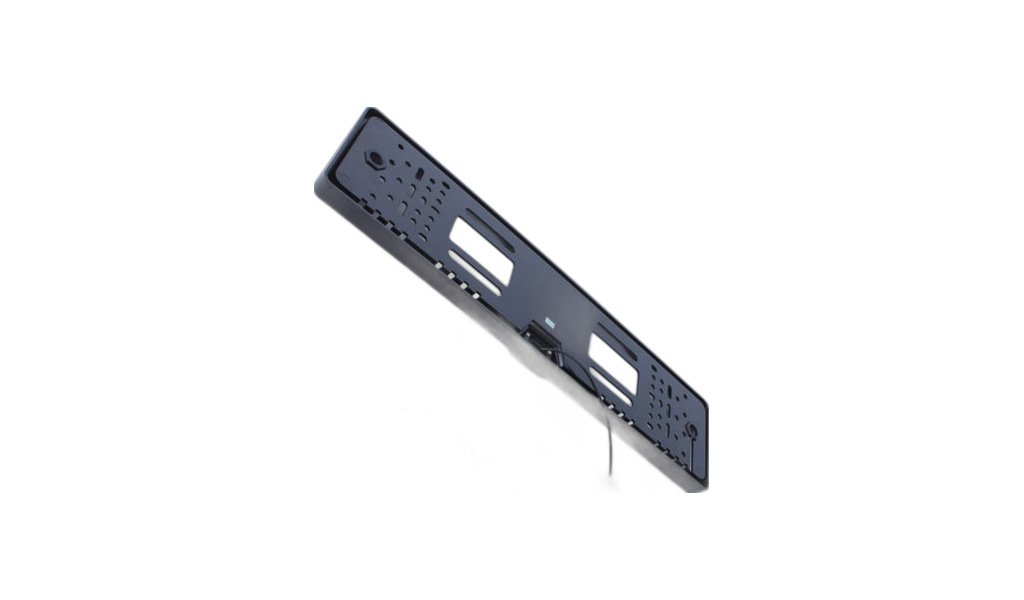

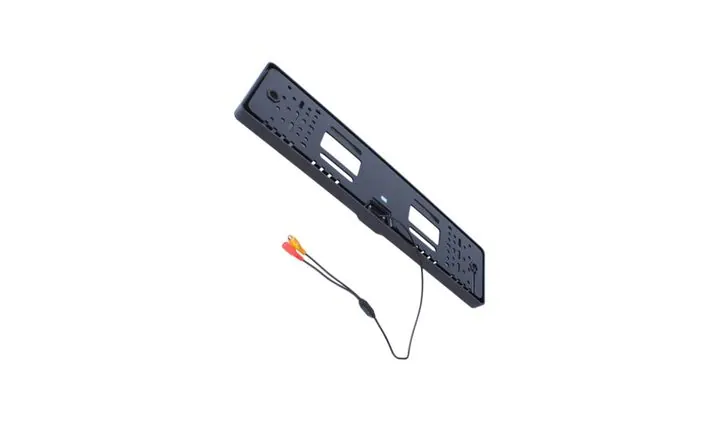

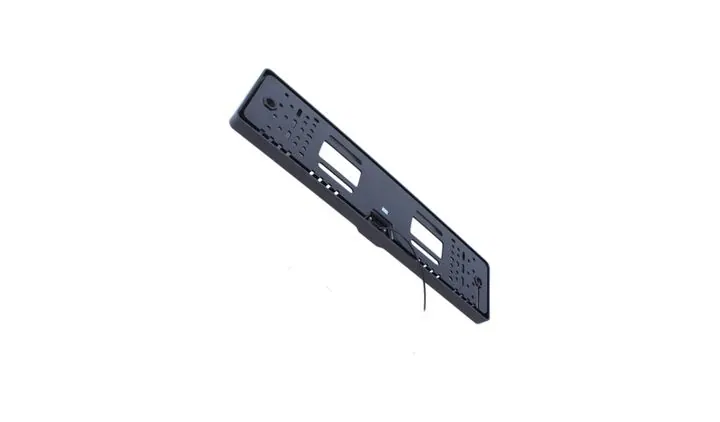

JPC-10 European license plate frame hidden camera (EU license plate frame / IP69K)

Key features

Wide angle EU licence plate reverse camera, hidden backup camera design
Specifically designed for European vehicles: mounts behind the licence plate, no visible camera
Three working positions: protection, reverse, rear view
Viewing angle 170 degree (spec sheet also lists 135 degree - confirm version)
Night vision available; day / night sensor for automatic brightness adjustment
Flexible installation: can be mounted on the rear, front or either side of the vehicle
Camera angle is adjustable
Mirror / real image optional; reversing grid optional
High definition, shockproof; waterproof and shatterproof protection level equals IP69K
CCD chips available
Sensor: CMOS, 648 x 488 effective pixels, TV line 480, lens 1.7mm, S/N ratio ≥48dB
Signal: PAL / NTSC analog output, 1.0Vp-p 75 ohm; power supply DC 12V
Operating temperature -20°C to +70°C (storage -30°C to +85°C)
Performs in rugged conditions; 1 year warranty

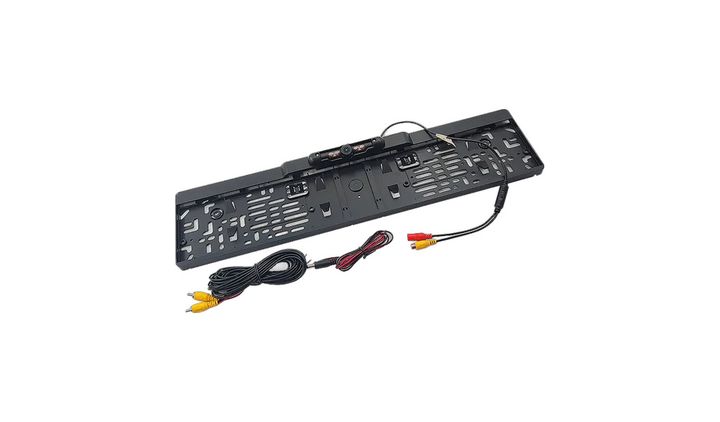

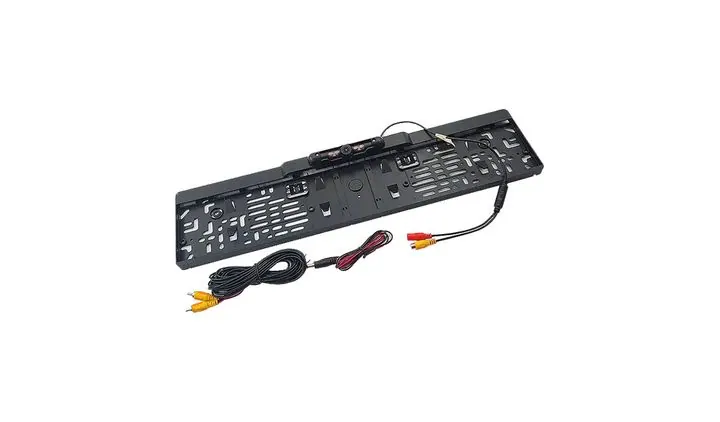

Package: 1 x licence plate camera, 1 x neutral packing box, 1 x 1 m power cable, 1 x 6 m video cable, 1 x user manual

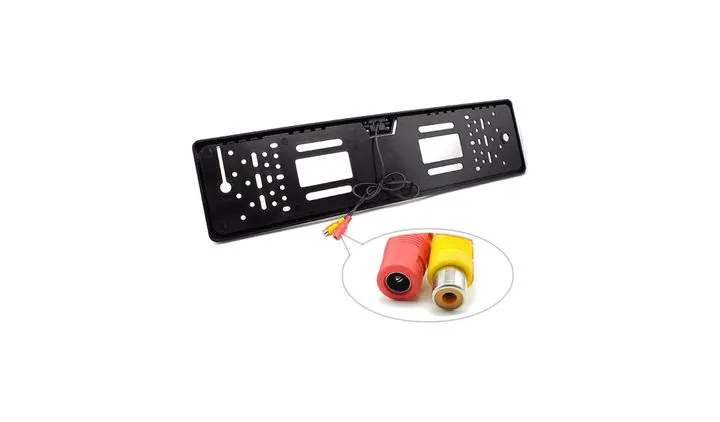

Video cable connector: RCA or 4-pin BMW connector optional
Factory direct: colour gift box / OEM packing available on request

Points to confirm before production so the unit arrives ready to fit.

Confirm the model license plate frame size and fixing hole position. It is only for European cars. Non-European cars need to be confirmed first
Confirm the viewing angle version: The specifications are marked with both 170° and 135°, which must be confirmed before placing an order
Confirm the signal type: CVBS or AHD (AHD must be equipped with an AHD host)
Confirm if night vision (IR) and CCD chip versions are required
Confirm the forward/mirror image and whether the reverse ruler line is needed
Confirm the wire connector: RCA or 4-pin BMW connector; confirm the wire length
Confirm 12V or 24V.
Confirm packaging: color box / neutral box / OEM customization, and instruction language
Quantity, silk screen printing and LOGO are required to be stated in advance

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.
When installing, first secure the license plate frame firmly, and then adjust the lens angle to avoid loosening while driving
Route the wires through near the license plate light or trunk wiring harness, avoiding high-temperature parts and sharp sheet metal edges
The joints should be waterproof so that the license plate position is easily washed away by water in rainy days
Three working positions (protection/reversing/rear view) are tested one by one after installation
Clean the lens with a soft cloth — never alcohol or anything abrasive.
AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
