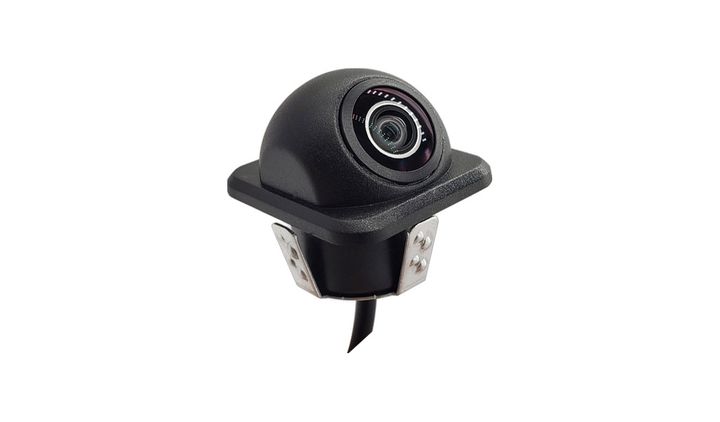

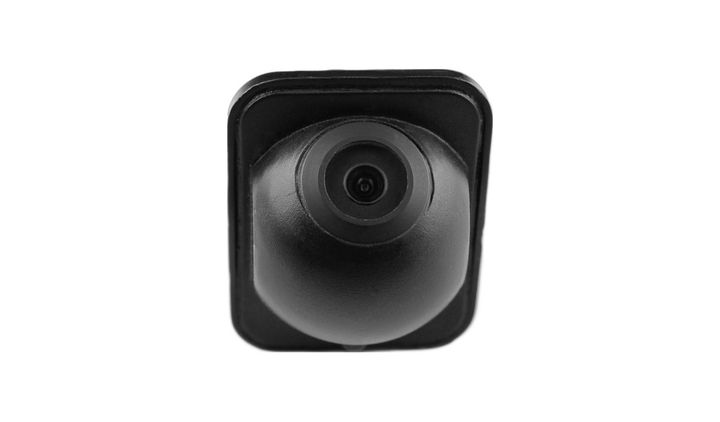

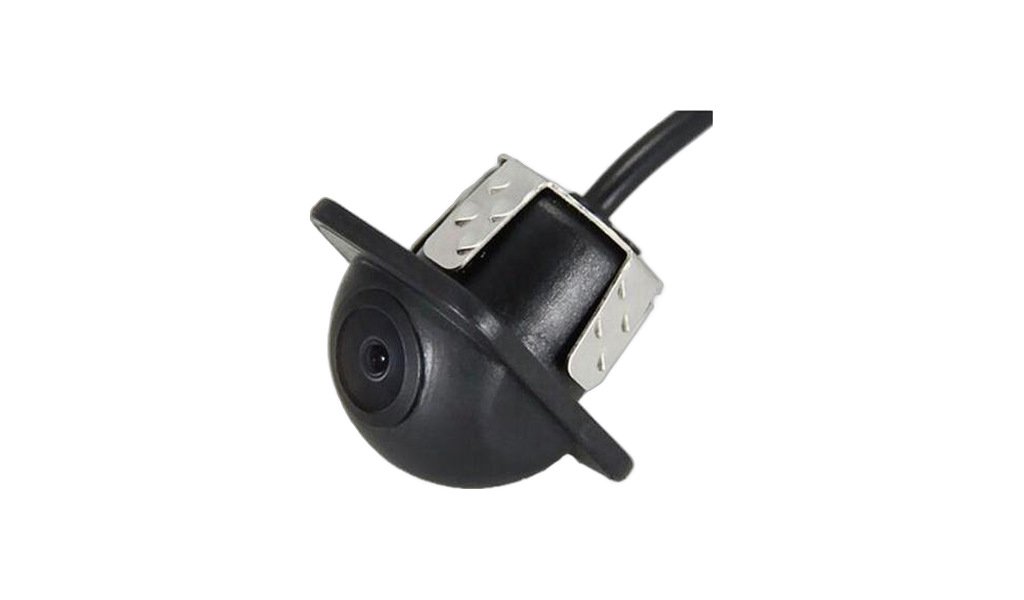

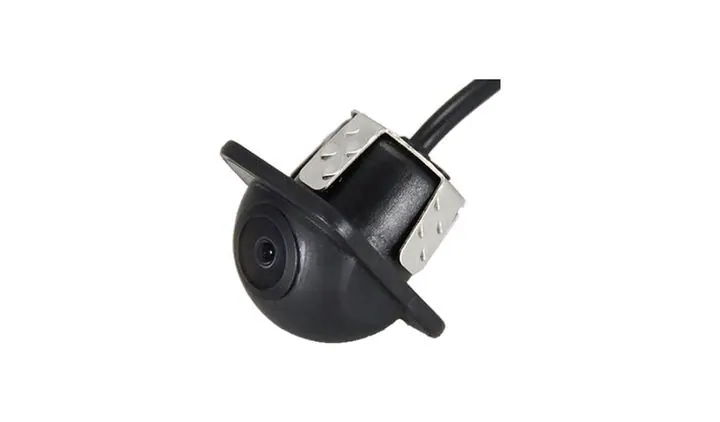

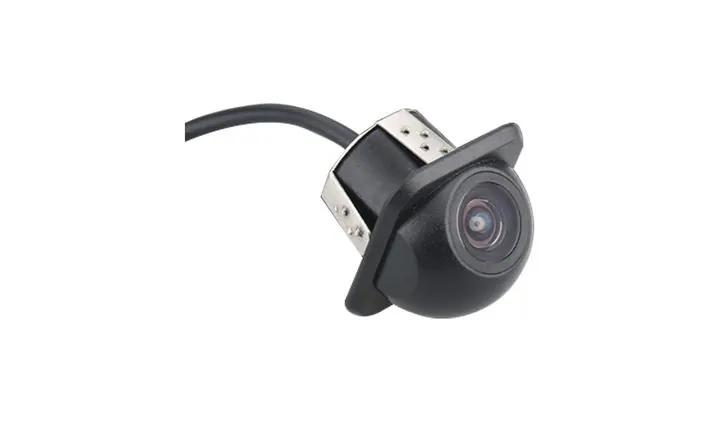

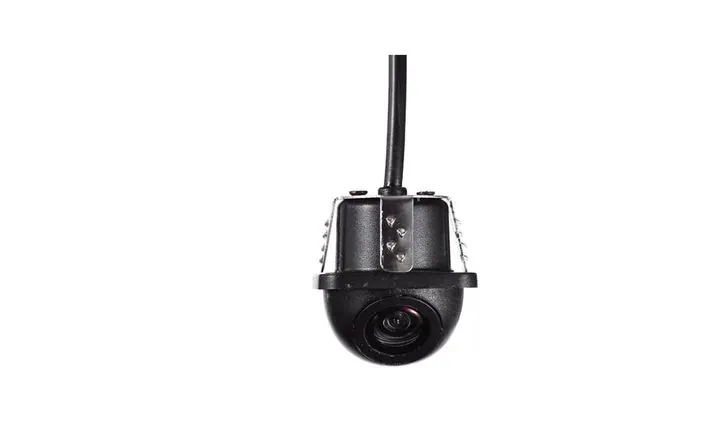

JPC-07 small dome car camera (supply model BRC-650 / universal small dome)

Key features

Supplier model BRC-650; universal type car reversing camera (universal small dome)
Classic small-cap design: the lowest cost and most widely used shell in the range
Universal fitting for all cars; rear, front or side mounting
Signal options: CVBS 420/480 TV Lines, AHD 720P, AHD 1080P
Sensor options: HD CCD / CMOS; star-light night vision module (GC2053 / GC2083)
PAL or NTSC signal system; mirror image and reversing grid selectable
Waterproof IP69K; plastic housing with sealed lens ring
DC 12V & 24V; circuit protection function
High definition, parking easier and safer; scientific design; easy to install

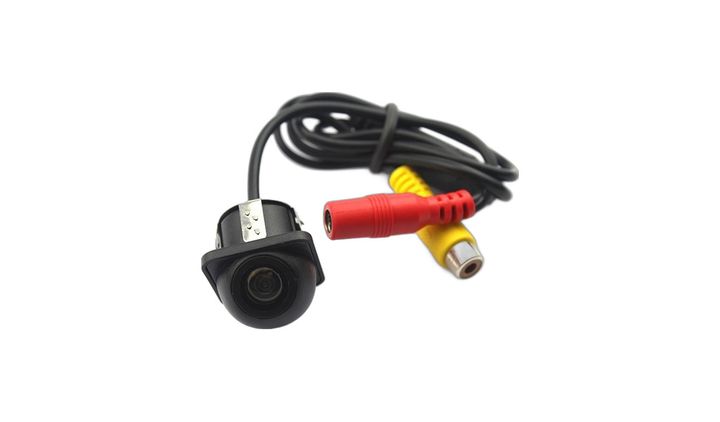

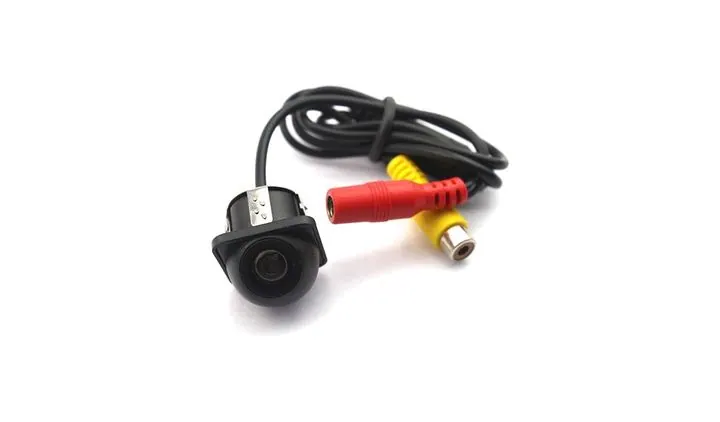

Package: 1 x camera, 1 x 1 m DC power cable, 1 x 6 m AV cable, 1 x hole saw
Standard tail cable 5 copper + 5 steel (standard configuration: horizontal view about 108 degree, standard power board)
Optional: non-heating switch board tail cable, pure-copper cable, fisheye wide angle, BMW plug

Points to confirm before production so the unit arrives ready to fit.

Confirm the cut-out size (18.5 mm, 28 mm and others) matches the vehicle.
Confirm the signal type: CVBS, AHD 720P or AHD 1080P. An AHD camera must be paired with an AHD host.
Confirm the chipset — CVBS: 1058 / 4089 / 7430 / 7440 / 7080; AHD: 2053 / 528 / 536D / 536 / 4109.
Confirm the lens angle: the specification bookmark is 170°, the standard horizontal viewing angle is about 108° (110° specification), the wide angle is optional, please confirm before placing an order
Confirm whether you need LED fill light (if you need a circle of lights, please choose JPC-07LED)
Confirm PAL or NTSC, whether parking guide lines are needed, and normal or mirrored image.
Confirm the connector (RCA, 4-pin aviation or BMW type) and voltage 12V / 24V.
Confirm tail cable construction — 5 copper / 5 steel is standard — and whether pure copper, an extension and a custom length are needed.
Confirm colour, accessories, packaging type and printing.

Voltage, wiring, sealing and maintenance guidance for the installer.

Before wiring, confirm the supply — DC 12V, or the 24V version on a 24V vehicle — and never reverse the red and black supply wires.
Confirm the hole diameter and panel thickness before cutting; on a push-in camera make sure the seal is compressed so no water gets in.
Route the cable clear of hot surfaces and sharp sheet-metal edges, and do not pull the tail cable tight.
Seal the connector properly; bumper positions take a lot of water spray.
Adjust the angle and lock it to prevent the lens from shifting due to driving vibrations
Clean the lens with a soft cloth — never alcohol or anything abrasive.
AHD cameras must be paired with an AHD host; CVBS and AHD cannot be mixed.
